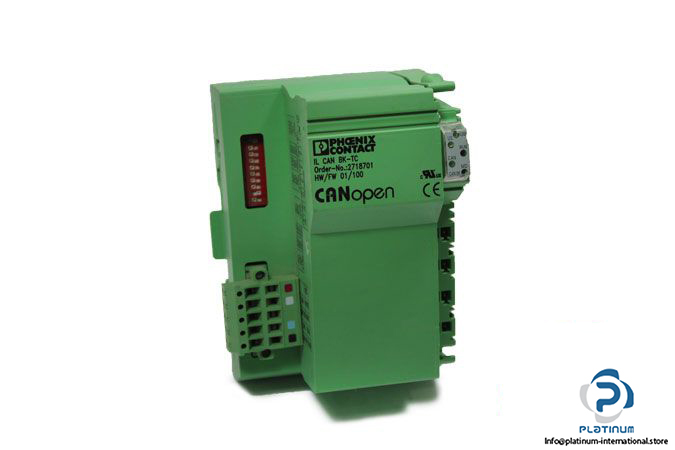

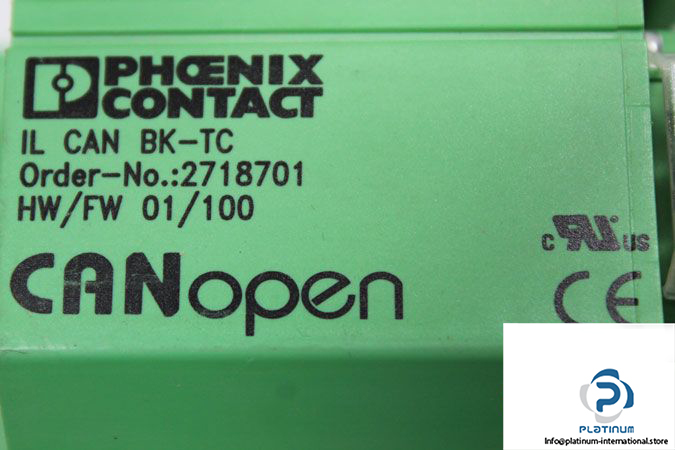

Phoenix Contact IL CAN BK – TC – 2718701 BUS Coupler

Manufacturer: Phoenix Contact

Type: Bus Coupler

Model: IL CAN BK – TC – 2718701

Order No.: 2718701

Supply Voltage: 24 VDC

Supply Voltage Range: 19.2 … 30 VDC

Air Pressure (Operation): 70 … 106 kPa

Designation: CANopen

No. of Channels: 1

Interface Connection Method: TWIN COMBICON

Address Area Assignment: 0 … 63, can be set

Number of Positions: 10

Designation: Inline local bus

Connection Method: Inline data jumper

Transmission Speed: 500 kbps

Color: green

Degree of Protection: IP20

Ambient Temperature (Operation): -25 … 55 °C

Dimensions: 119.8 X 85 X 71.5 mm

Weight: 0.24 Kg
