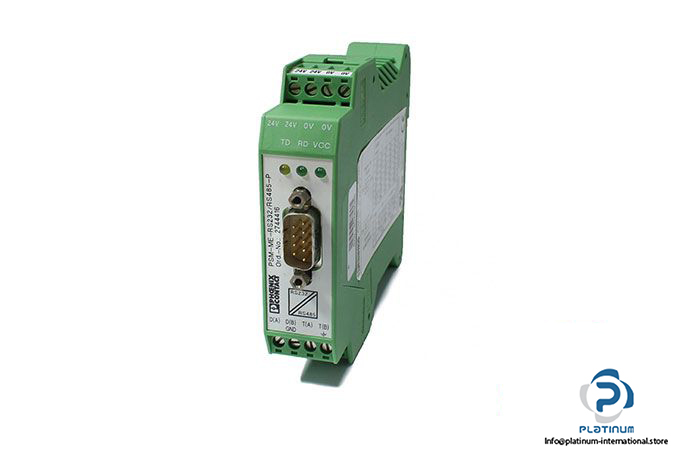

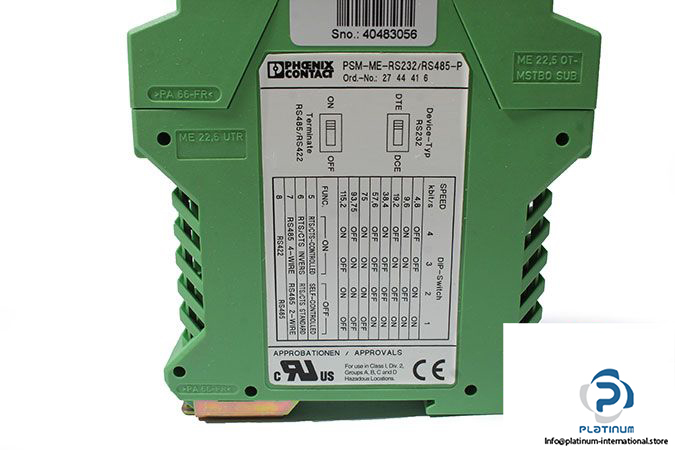

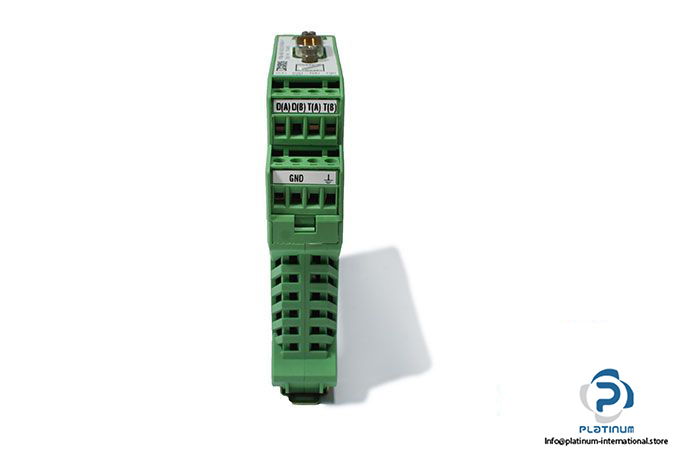

Phoenix Contact PSM-ME-RS232/RS485-P Interface Converter
Gebruikt
Beschikbaar op aanvraag
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
Manufacturer: Phoenix Contact
Type: Interface Converter
Model: Psm-Me-Rs232/Rs485-P
Order No.: 2744416
Nominal Supply Voltage: 24 V AC/DC
Supply Voltage Range: 18 … 30 V AC/DC (Via Pluggable Combicon Screw Terminal Block)
Max. Current Consumption: 100 mA
Frequency Range: 0.15 … 80 MHz
Typical Current Consumption: 85 mA (24 V DC)
Conductor Cross Section Flexible: 0.2 … 2.50 mm²
Interface 1 Connection Method: D-SUB 9 plug
Interface 2 Connection Method: Pluggable Screw Connection
Degree of Pollution: 2
Color: Green
Degree of Protection: IP20
Ambient Temperature (Operation): -40 … 70 °C
Dimensions: 99 X 22.5 X 114.5 mm
Weight: 0.14 kg
