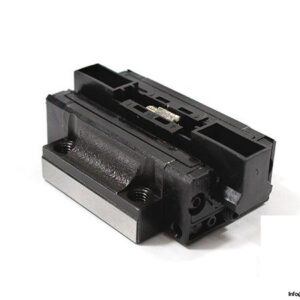

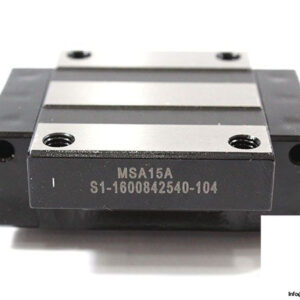

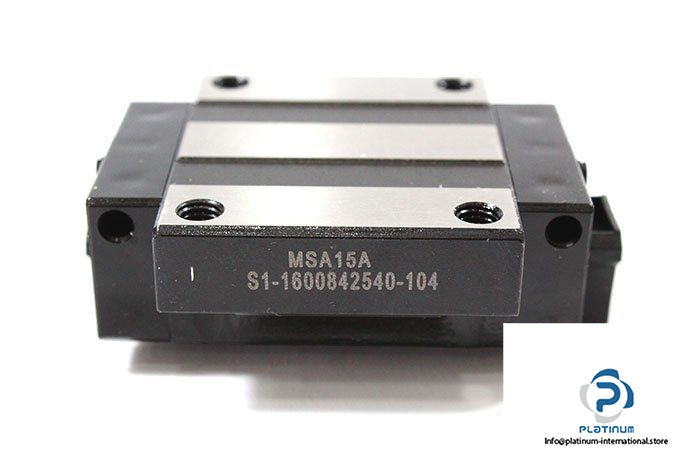

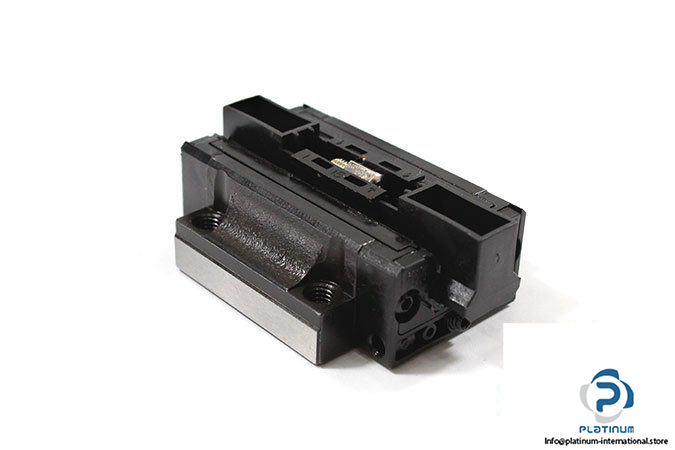

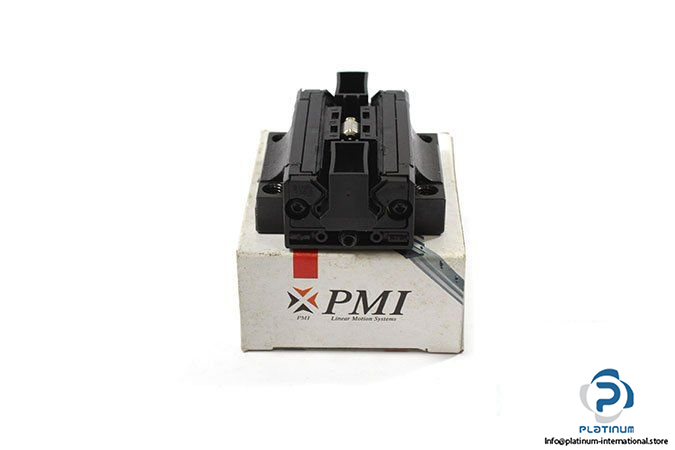

PMI MSA15A Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

Series: MSA

Model: MSA15A

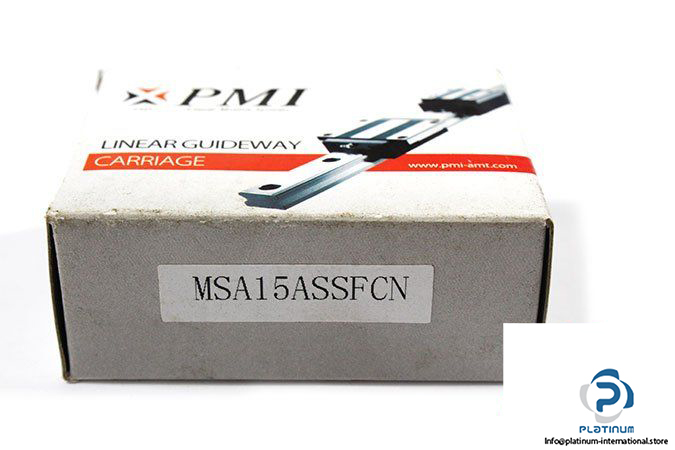

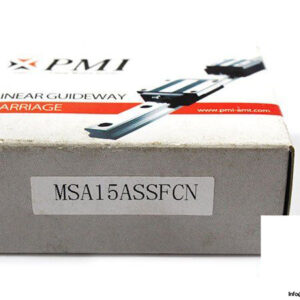

MRN: MSA15ASSFCN

Size: 15

Block Type: Flange

Load Type: Heavy Load

Block Height: 24 mm

Block Width: 47 mm

Block Length: 56.3 mm

Thread Size: M5

Rail Width: 15 mm

Rail Height: 15 mm

Preload: FC

Accuracy Grade: N

Basic dynamic load rating: 11.8 kN

Basic static load rating: 18.9 kN

Weight: 0.2 kg
