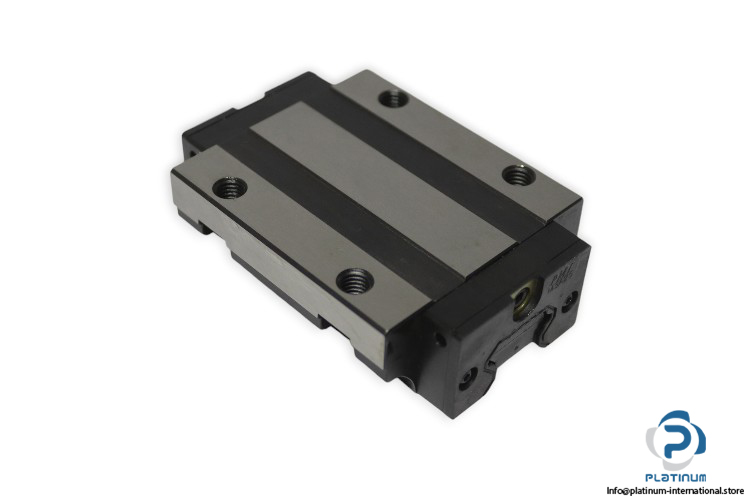

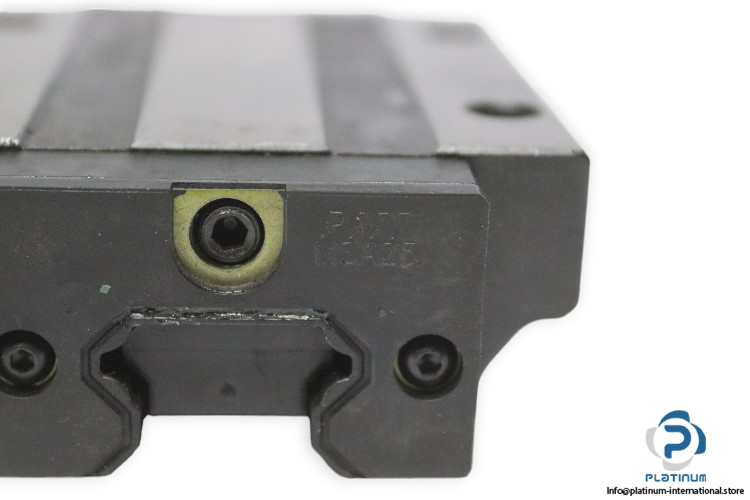

PMI MSA25LESSFTN Linear Guideway Block

Beschikbaar op aanvraag

Lineaire geleidingsblok

Fabrikant
PMI
SKU
1057167
Categorie
Linear Motion
Staat
Nieuw
Delen
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

Manufacturer: PMI
Type: LINEAR GUIDEWAY BLOCK

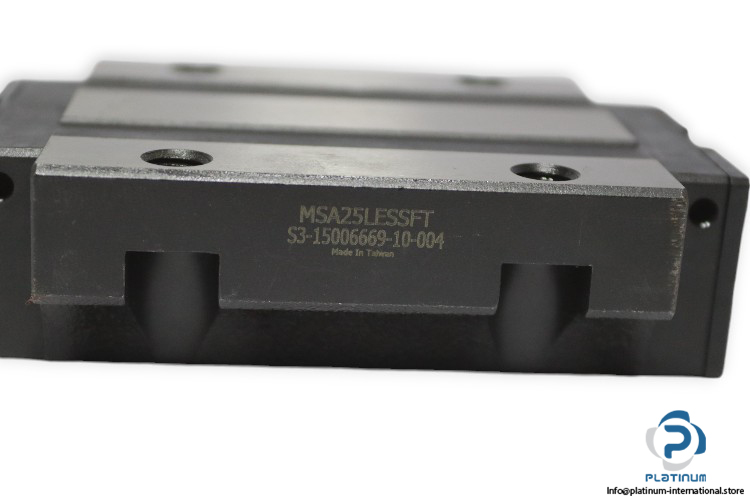

Model: MSA25 LE SSFTN

Size: 25

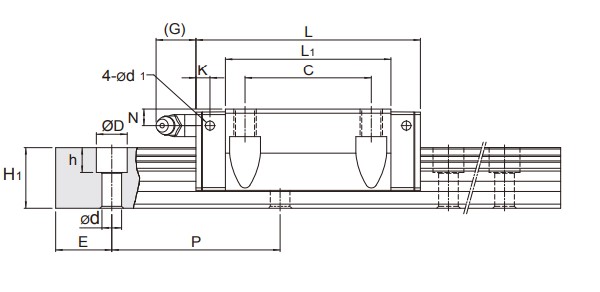

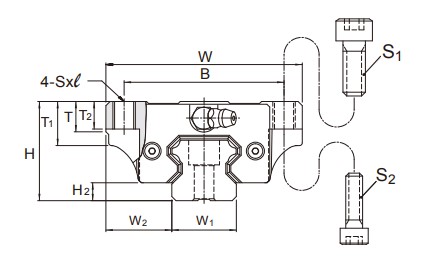

Dimensions:

System Height H: 36 mm
Block Width W: 70 mm
Block Length L: 100.6 mm
Block Height (H-H2): 29.5 mm
Series: MSA
Block Type: LE , Flange type, mounting either from top or bottom
Load Type: Ultra heavy load
Dust protection option of carriage: SS
Accuracy grade: N
Preload:
F
Block Mounting Type: Top or Bottom
Rail type: T, (Tapped hole type)
Basic dynamic load rating: 34.4 kN
Basic static load rating: 56.6 kN
Thread Size: S1-M8 , S2-M6
