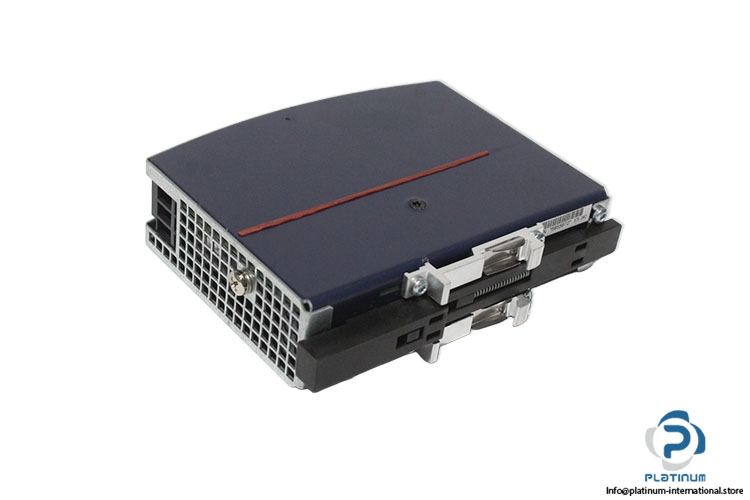

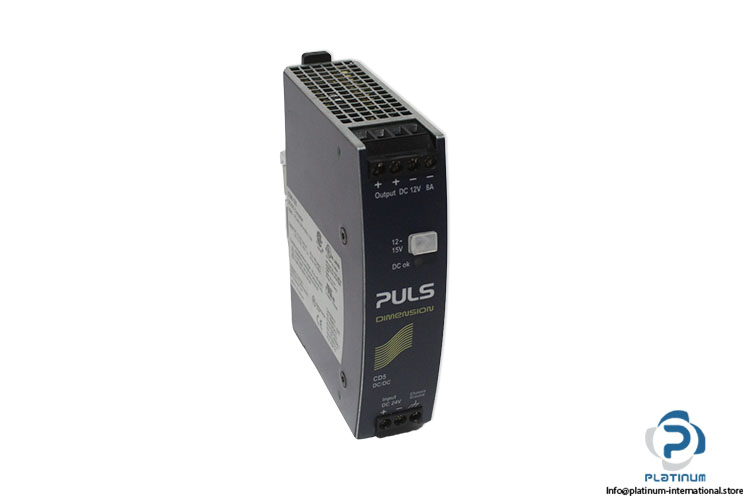

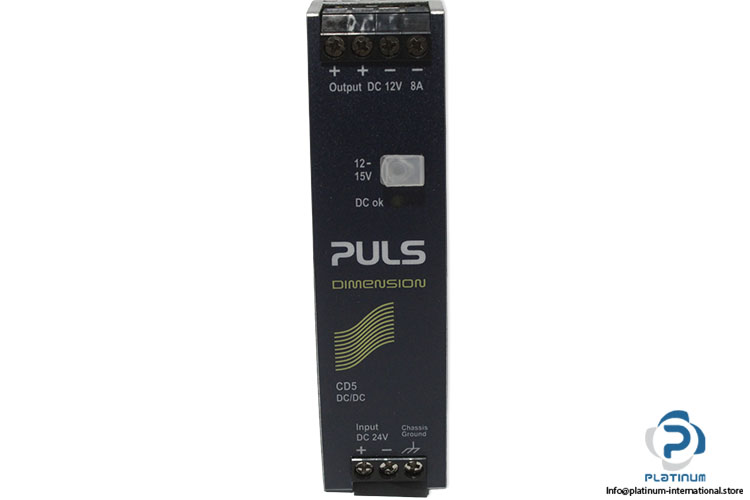

Puls CD5.121 Dc/Dc Converter
Nieuw
Op voorraad1 eenheidKlaar voor verzending
Single Output Power Supply MEAN WELL single-output power supply with PFC function, delivering 24 V DC, 20 A, and 480 W for industrial automation and electrical applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Series | CD |

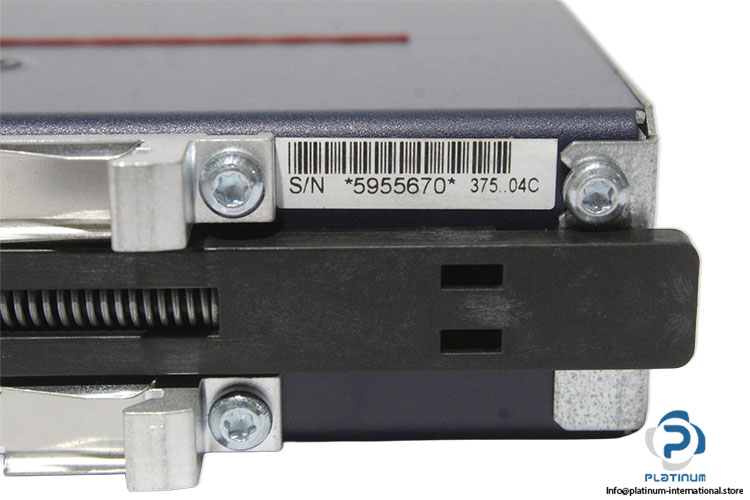

| S/N | 5955670 |
| Output voltage | 12V DC |
| Adjustment range | 12 - 15V |
| Output current | (8.0 - 6.4A, up to +60°C ambient), (6.0 – 4.8A, at +70°C ambient) |
| Input voltage | 24V DC |
| Input current | typ. 4.6A at 24Vdc input |
| Input inrush current | typ. 1.2Apeak |
| Efficiency | 88.2% at 24Vdc input |
| Losses | 12.8W at 24Vdc input |
| Temperature range | -25°C to +70°C |
| Dimensions | 32x124x102mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093778 |
| Weight | 0,55 |
