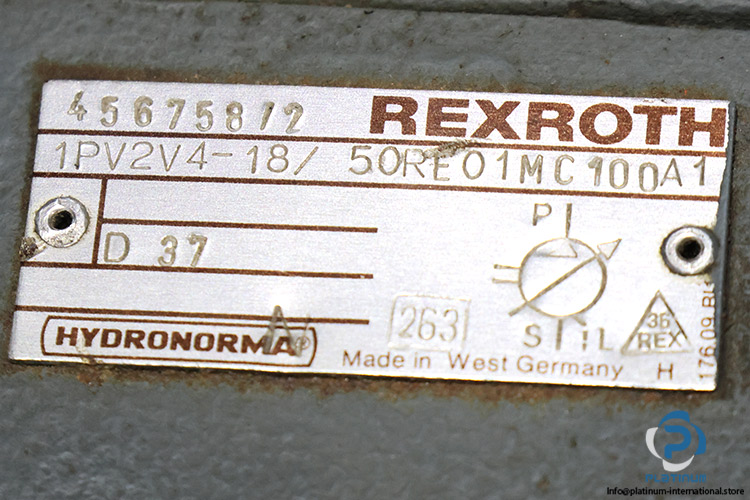

Rexroth 1PV2V4-18/50RE01MC100A1 Variable Vane Pump
Gebruikt
Op voorraad1 eenheidKlaar voor verzending

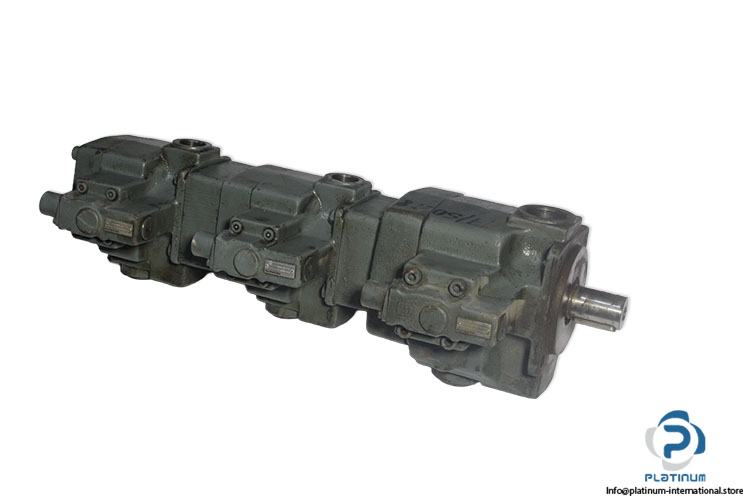

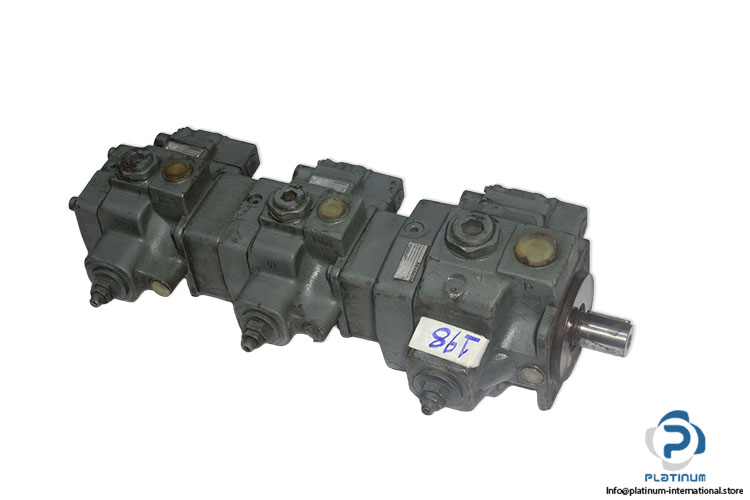

Variable Vane Pump The REXROTH HYDRONORMA 1PV2V4-18/50RE01MC100A1 is a variable vane pump assembly with additional vane pumps and hydraulic piston valves, designed for reliable industrial hydraulic systems.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| MNR | R9004546758 |
| size | 50 |
| Fluid | oil |
| displacement | 55.2 cm³/rev |
| Direction of rotation | Clockwise |
| Shaft Diameter | 38 mm |
| Drive Speed | 900 …. 1800 rpm |
| Viscosity Range | 16 …. 160 mm2/s |
| Drive power | 23 kw |
| Torque | 510 Nm |
| Max Flow | 72.5 l/min |

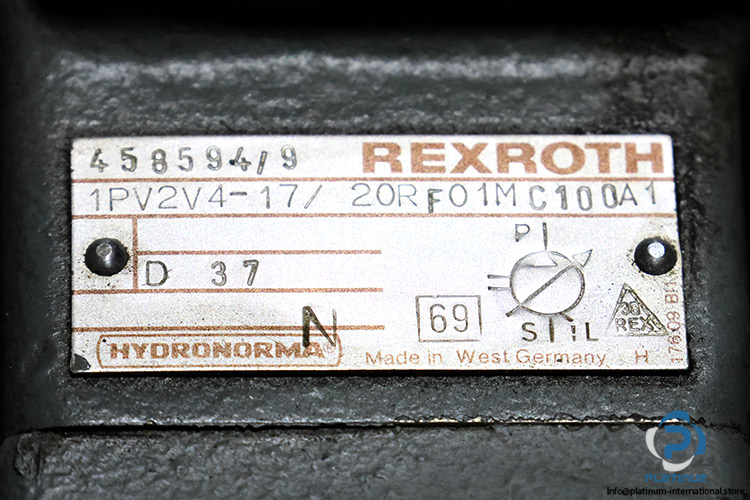

| Attached with 1 | REXROTH 1PV2V4-17/ 20RF01M C100A1 VARIABLE VANE PUMP |
| MNR ,VANE PUMP 2 | R900 458594 |
| Size ,VANE PUMP 2 | 20 |
| Fluid,VANE PUMP 2 | oil |
| displacement,VANE PUMP 2 | 20.7 cm³/rev |
| Direction of rotation,VANE PUMP 2 | Clockwise |
| Shaft Diameter,VANE PUMP 2 | 38 mm |
| Drive Speed,VANE PUMP 2 | 900 …. 1800 rpm |
| Viscosity Range,VANE PUMP 2 | 16 …. 160 mm2/s |
| Drive power,VANE PUMP 2 | 8.5 kw |
| Torque,VANE PUMP 2 | 228 Nm |
| Max Flow,VANE PUMP 2 | 29 l/min |

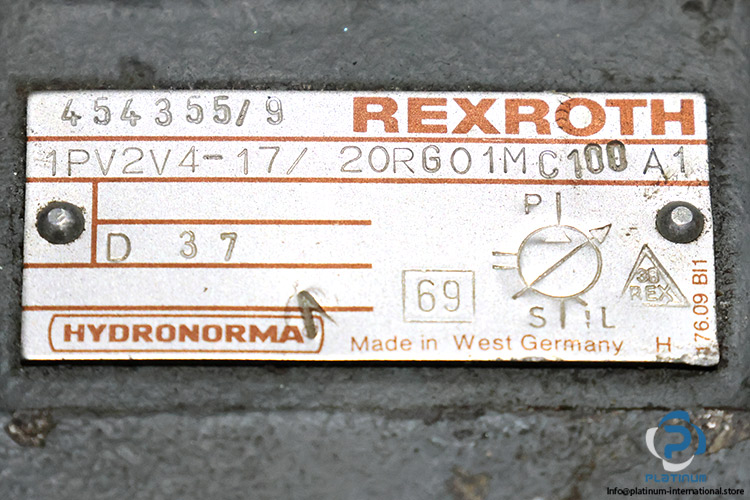

| Attached with 2 | REXROTH 1PV2V4-17/ 20RG01MC100 A1 VARIABLE VANE PUMP |
| MNR ,VANE PUMP 3 | R900 454355 |
| Size ,VANE PUMP 3 | 20 |
| Fluid,VANE PUMP 3 | oil |
| displacement,VANE PUMP 3 | 20.7 cm³/rev |
| Direction of rotation,VANE PUMP 3 | Clockwise |
| Shaft Diameter,VANE PUMP 3 | 38 mm |
| Drive Speed,VANE PUMP 3 | 900 …. 1800 rpm |
| Viscosity Range,VANE PUMP 3 | 16 …. 160 mm2/s |
| Drive power,VANE PUMP 3 | 8.5 kw |
| Torque,VANE PUMP 3 | 228 Nm |
| Max Flow,VANE PUMP 3 | 29 l/min |

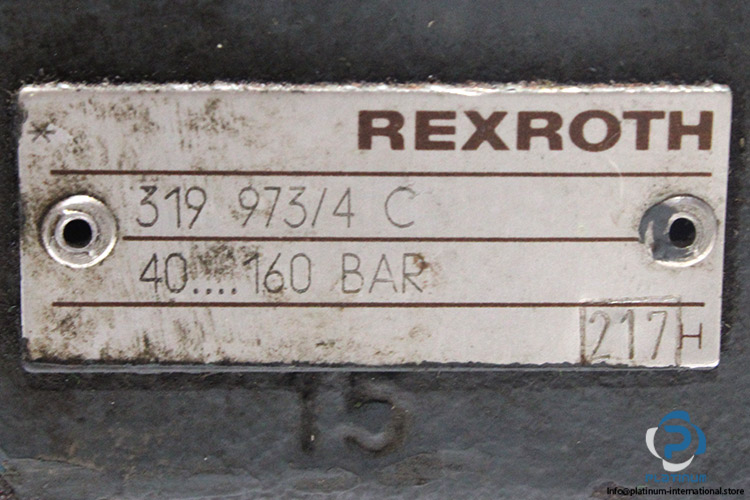

| Attached with 3 | REXROTH 319 973/4 C hydraulic piston valve |
| pressure Range1 | 40 ... 160 BAR |

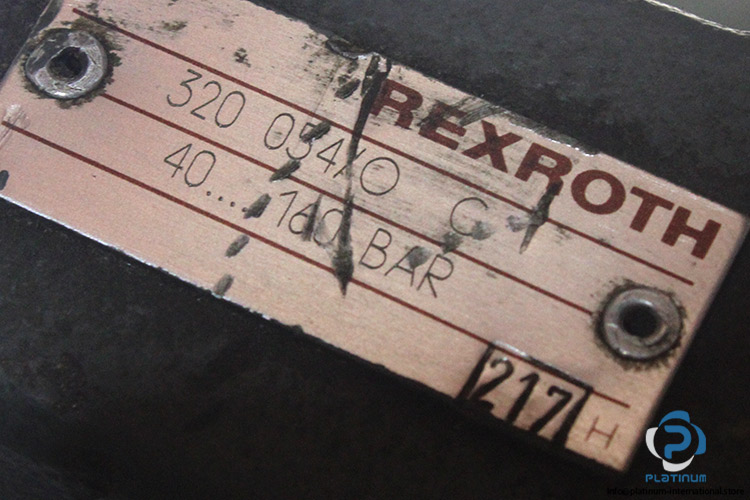

| Attached with 4 | REXROTH 320 054/O C1 hydraulic piston valve |
| pressure Range2 | 40 ... 160 BAR |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100313 |
| Weight | 92,55 |
