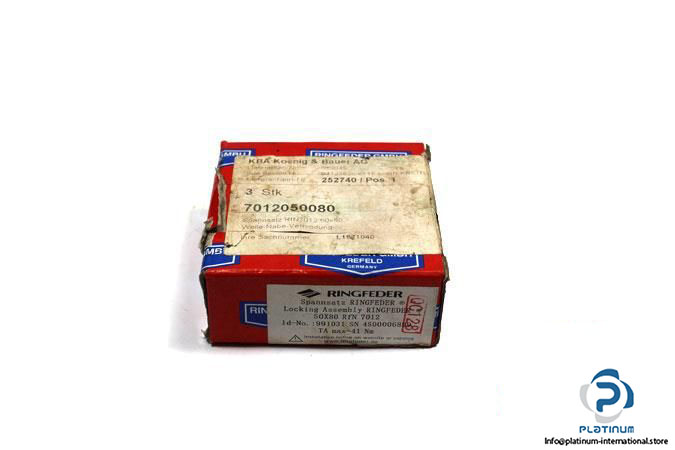

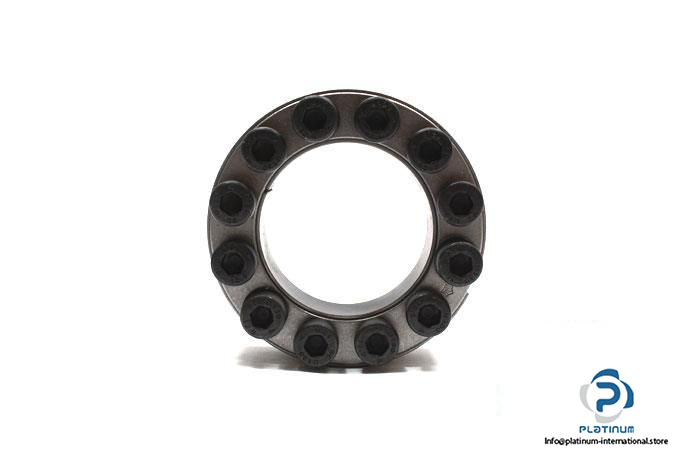

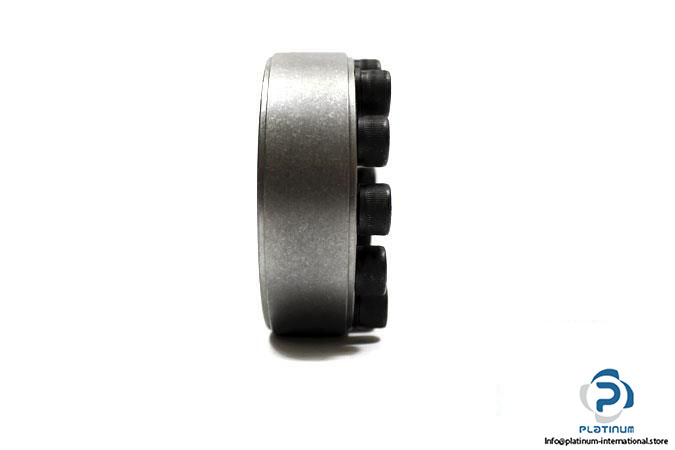

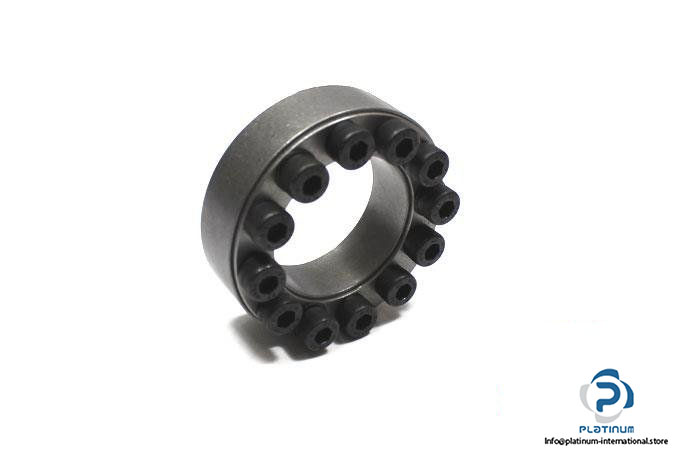

Ringfeder 50X80 RFN 7012 Locking Assembly

Manufacturer: RINGFEDER

Type: LOCKING ASSEMBLY

Model: 50X80 RFN 7012

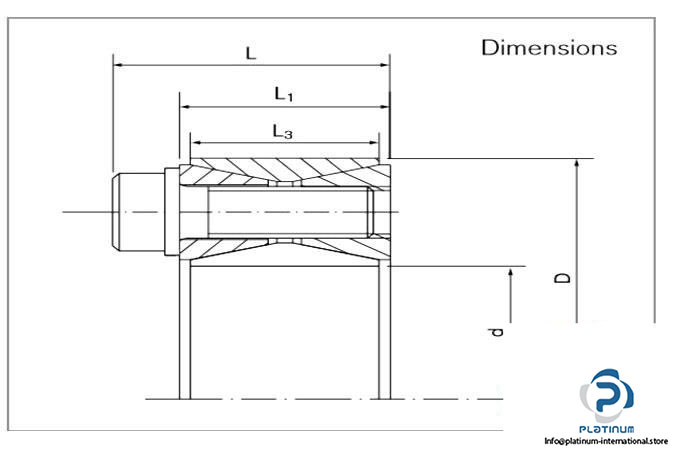

Inner diameter (d): 50 mm

Outer diameter (D): 80 mm

Overall length (L): 33.5 mm

Overall length, without screws (L1): 24 mm

Width of ring (L3): 24 mm

Max. Tightened torque of the clamping screws (TA): 41 Nm

Transmissible torque (given TA): 2082 Nm

Transmissible torque max.: 2568 Nm

Surface pressure on shaft (given TA): 221 N/mm²

Surface pressure on hub (given TA): 138 N/mm²

Applications: chain wheels, Levers, pulleys, slip-on gear mechanisms, belt, drums, running, wheels, cable sheaves
