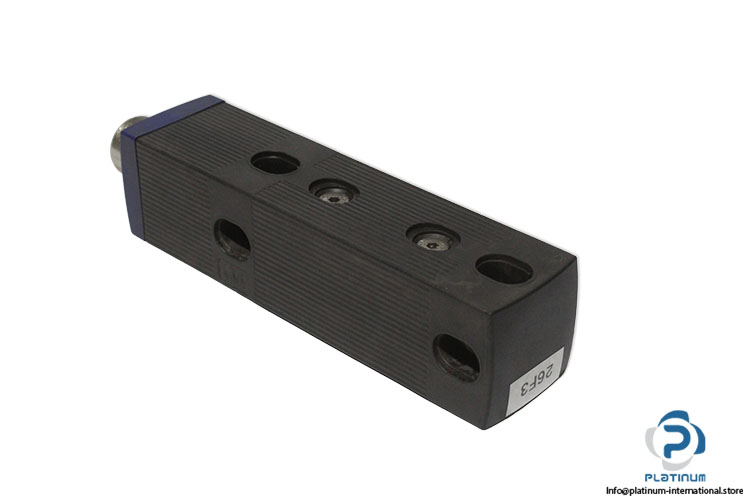

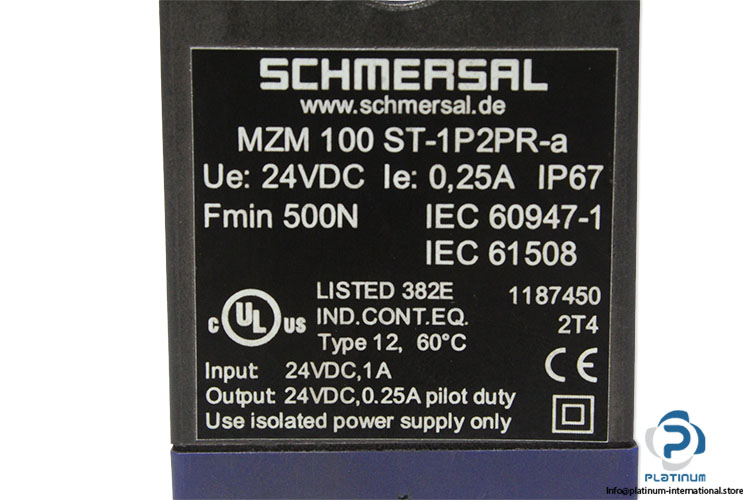

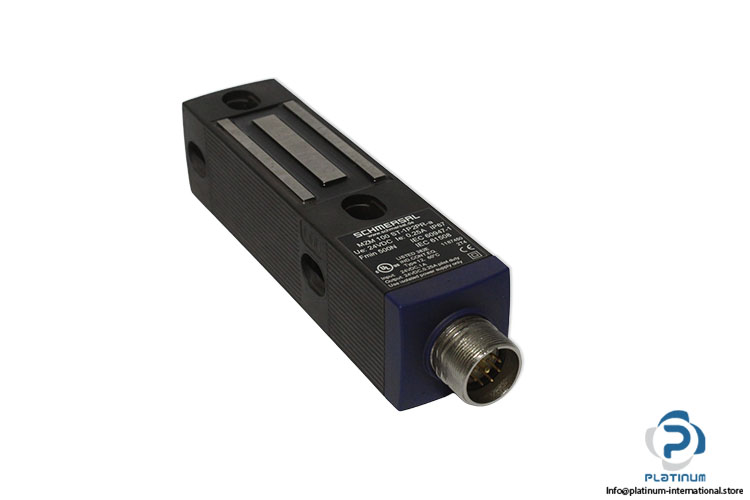

Schmersal MZM 100 ST-1P2PR-A Solenoid Interlock
Nieuw
Op voorraad1 eenheidKlaar voor verzending
Solenoid Interlock The SCHMERSAL MZM 100 ST-1P2PR-A is a 24 VDC inductive solenoid interlock designed for reliable guard locking and safety monitoring in industrial machinery and automation systems.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Item number | 101187450 |
| EAN (European Article Number) | 4030661343426 |
| Order | 21383287 |

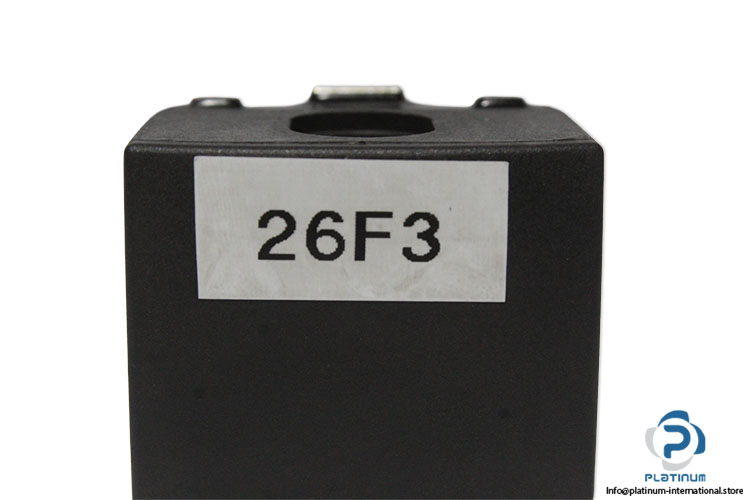

| Code | 26F3 |
| Operating voltage | 24 VDC -15 % |
| Operating Current | 0.25 A |
| No-load supply current I0, typical | 100mA |
| Angular misalignment between solenoid interlock and actuator, maximum | 2° |
| Minimum distance devices | 100mm |
| Holding force, typically | 750N |
| Holding force, guaranteed | 500N |
| Latching force | 30N |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the fixing screws | 8Nm |
| Standards | EN IEC 60947-5-3,EN IEC 61508,EN ISO 13849-1,EN ISO 14119 |
| Coding | Universal coding |
| Coding level according to EN ISO 14119 | Low |
| Working principle | inductive |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 150ms |
| Duration of risk, maximum | 150ms |
| Number of digital fail-safe inputs | 2 |
| Number of fail-safe digital outputs | 2 |
| PFH value | 3.54 x 10??/h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Length of sensor chain, maximum | 200m |

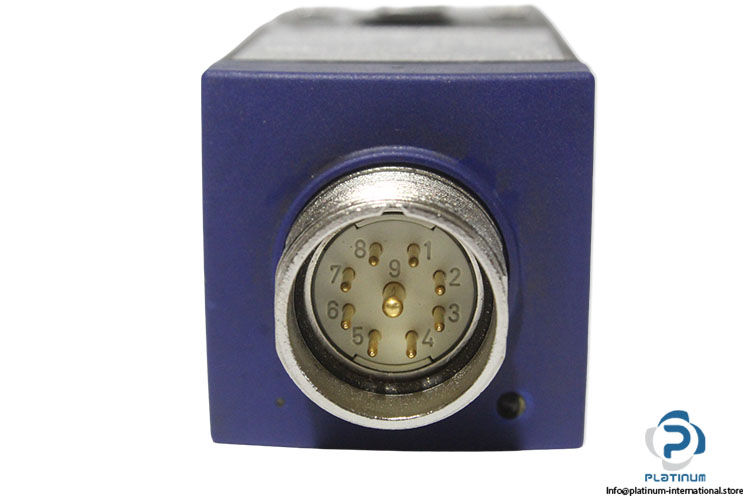

| Termination Connector | M23, 8+1-pole |
| Length of sensor | 40mm |
| Width of sensor | 40mm |
| Height of sensor | 179mm |
| IP Degree of protection | IP65/IP67 |
| Ambient temperature | -25 ... +55 °C |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage | Uimp0.8kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101014 |
| Weight | 0,68 |
