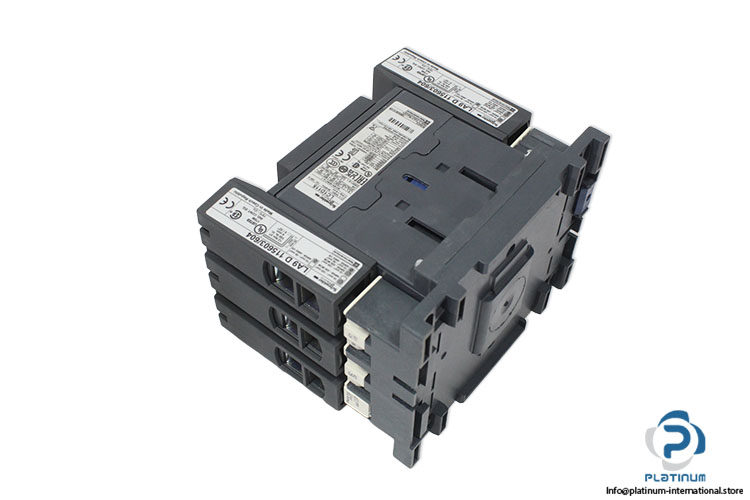

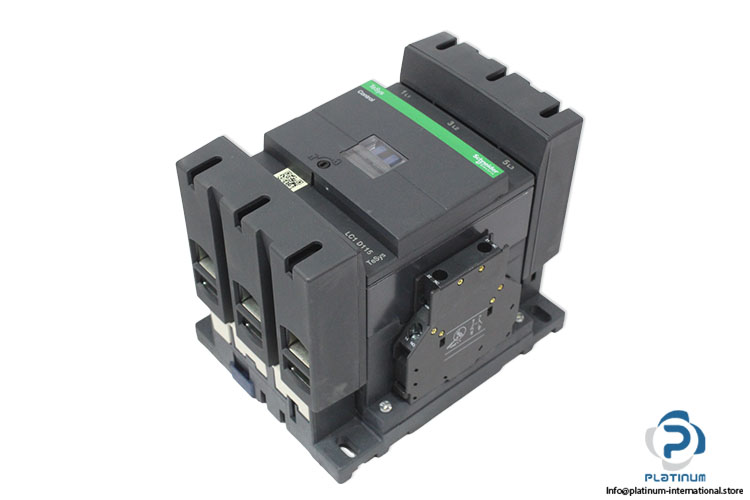

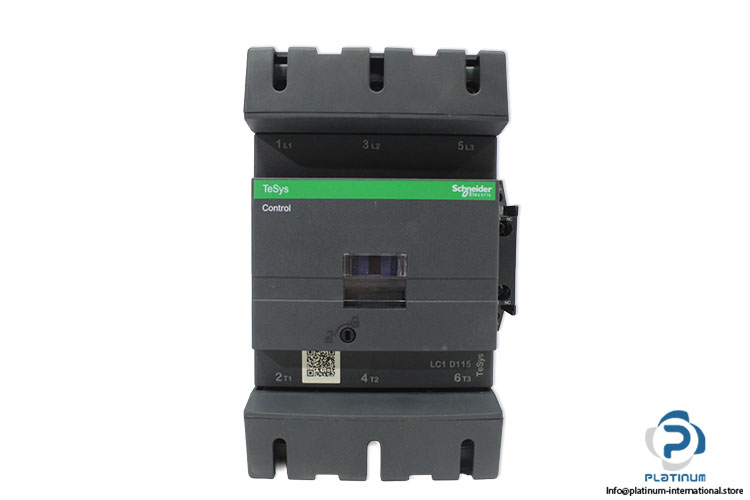

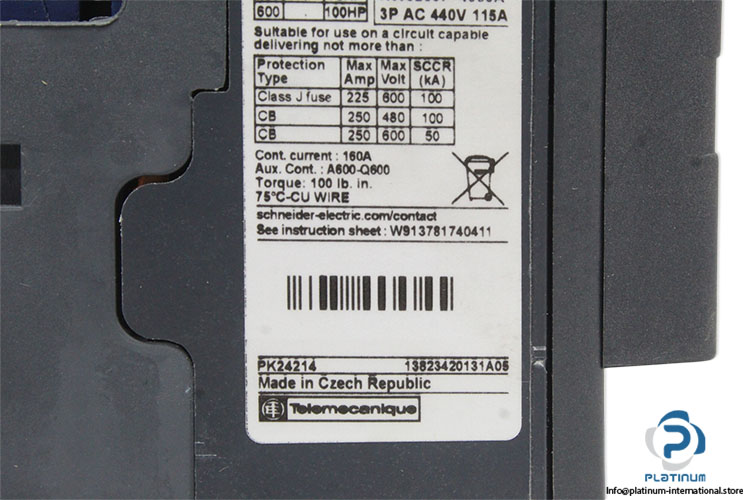

Schneider LC1D115P7 Contactor
Nieuw
Op voorraad1 eenheidKlaar voor verzending

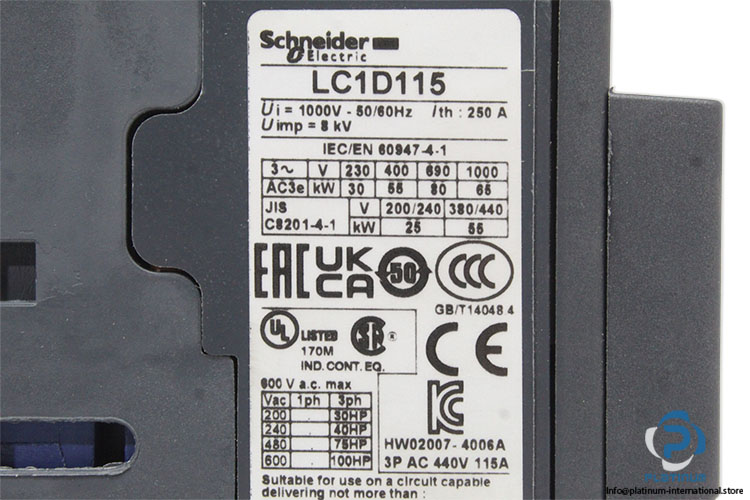

Contactor Body Without Coil SCHNEIDER LC1D115 industrial contactor body from the TeSys Deca range designed for motor control, automation systems, and heavy-duty electrical switching applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

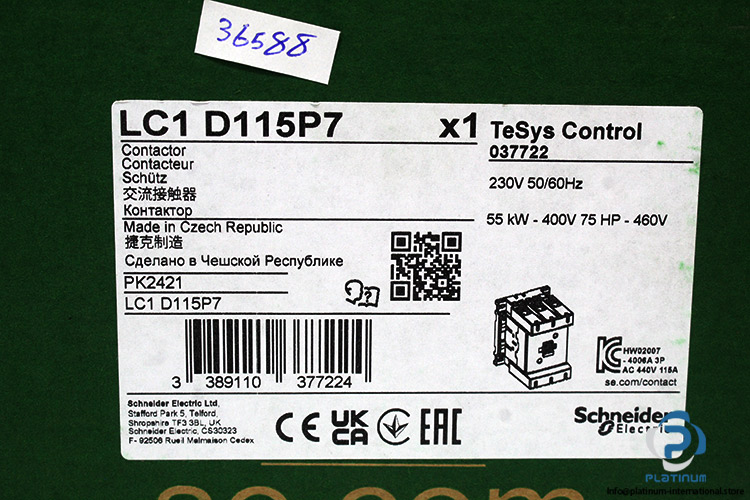

| MNR | LC1D115P7 |
| Part No. | 037722 |
| Ref No | PK2421/LC1 D115P7 |
| SN | 3389110377224 |
| Range | TeSys |
| Range of product | TeSys Deca |
| Product or Component Type | Contactor |
| Device short name | LC1 D |
| Utilisation category | AC-4/AC-1/AC-3/ AC-3e |
| power pole contact composition | 3 NO |
| Motor power kW at 380...400 V AC 50/60 Hz (AC-3) | 55 kW |
| Poles description | 3P |
| Control circuit voltage | 230 V AC, 50/60 Hz |
| Rated insulation voltage (Ui) | 1000 V AC, 50/60 Hz |
| Conventional free air thermal current (Ith) | 250 A |
| Rated impulse withstand voltage (Uimp) | 8 KV |
| Operating Temperature | -40 … +60 °C |
| Degree of Protection | IP20 |
| Dimensions | 158 x 120 x 136 mm |
| Standard | IEC / EN 60947-4-1 |

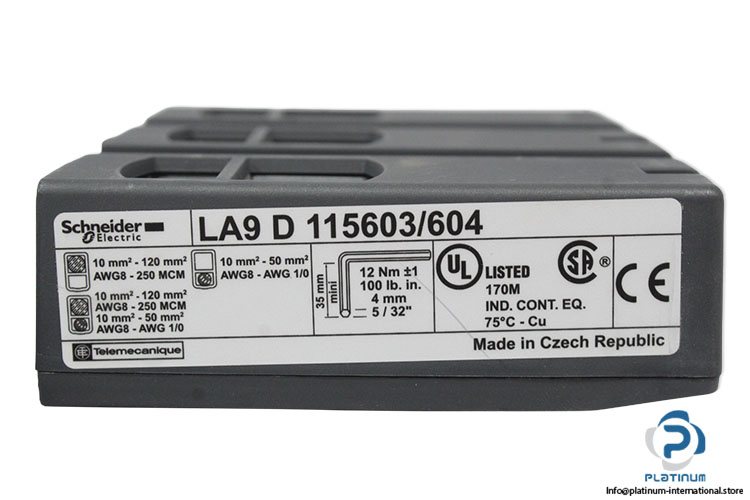

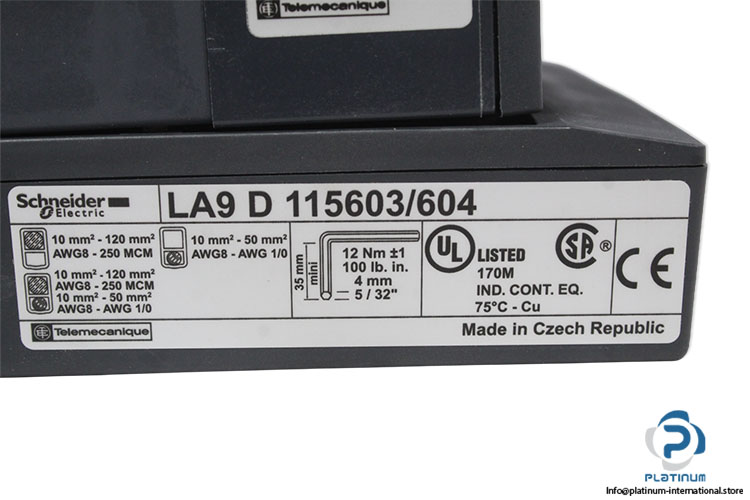

| Attached with1 | SCHNEIDER LA9 D 115603/604 Terminal Block |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099307 |
| Weight | 2,5 |
