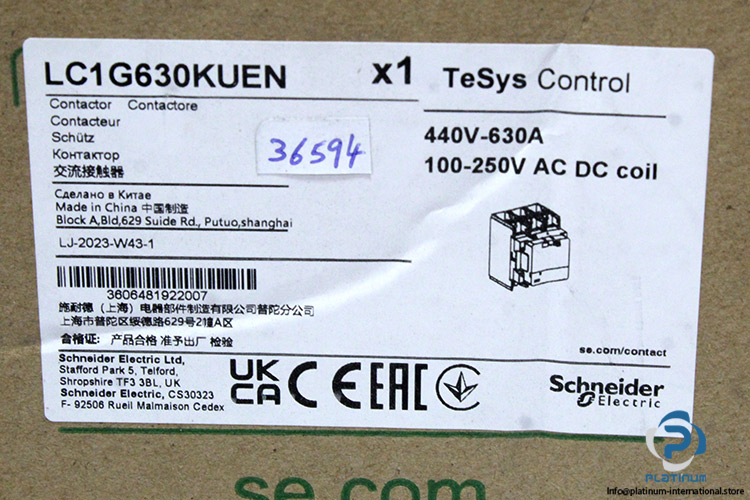

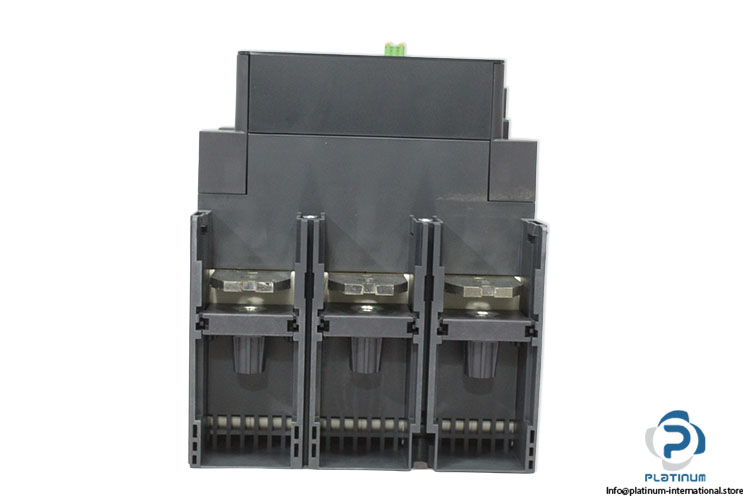

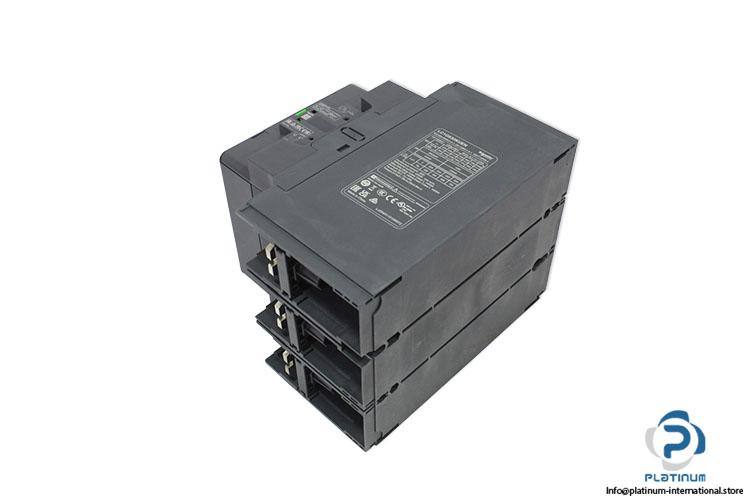

Schneider LC1G630KUEN Contactor

Name: SCHNEIDER LC1G630KUEN CONTACTOR
SKU: 1099313
Availability: LimitedAvailability

Nieuw

Op voorraad1 eenheidKlaar voor verzending

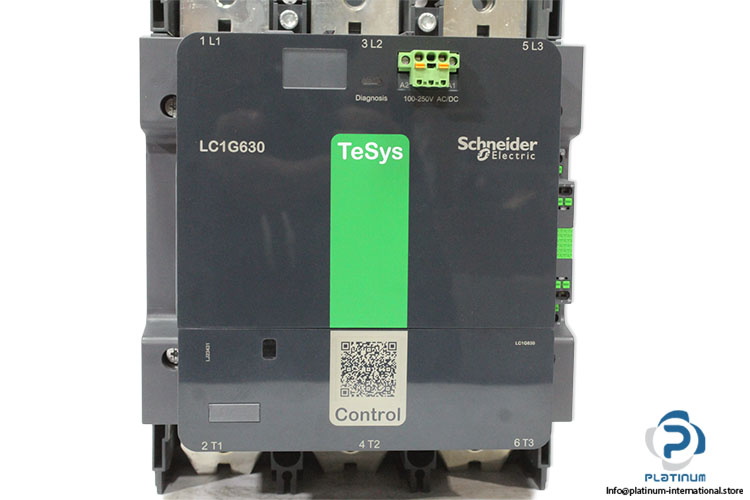

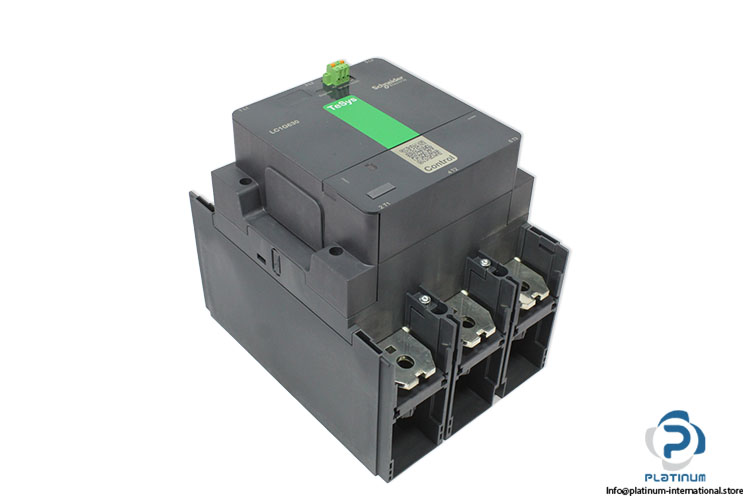

Contactor SCHNEIDER TeSys Giga LC1G630KUEN industrial contactor designed for high-capacity motor control and power switching applications with 630 A operational current and 1000 V AC rated operational voltage.

Fabrikant

SCHNEIDER

SKU

1099313

Categorie

Contactors & Accessories

Staat

Nieuw

Enorme Voorraad

Wereldwijde verzending

Deskundige Ondersteuning

Kwaliteit Gegarandeerd

SN	3606481922007
Range	TeSys
Range of Product	TeSys Giga
Product or Component Type	Contactor
Device short name	LC1G
Contactor application	Power switching,Motor control
Poles description	3P

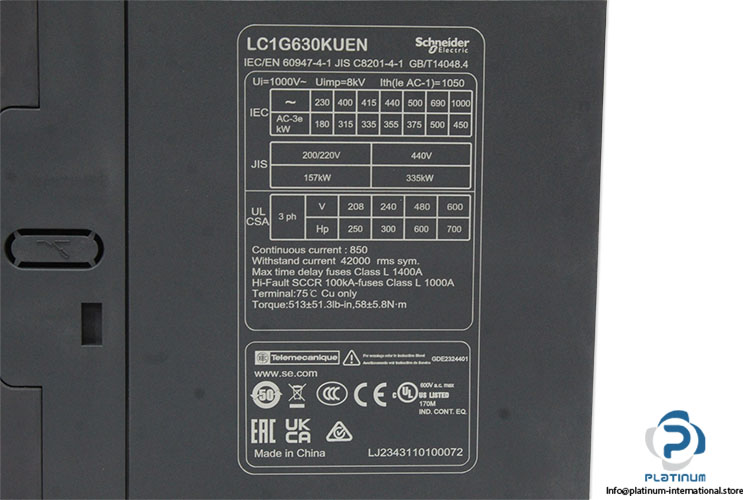

[Ue] rated operational voltage	1000 V AC 50/60 Hz , 460 V DC
[Ie] rated operational current	630 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Uc] control circuit voltage	100...250 V AC 50/60 Hz,100...250 V DC
[Uimp] rated impulse withstand voltage	8 kV
Overvoltage category	III
[Ith] conventional free air thermal current	1050 A (at 104 °F (40 °C))
Rated breaking capacity	5550 A at 440 V
Auxiliary contact composition	1 NO + 1 NC
Product Certifications	CB Scheme, CCC, cULus,EAC,CE,UKCA,EU-RO-MR by DNV-GL
Tightening torque	513.3 lbf.in (58 N.m)
Height	11.2 in (284 mm)
Width	8.3 in (211 mm)
Depth	10.5 in (266 mm)

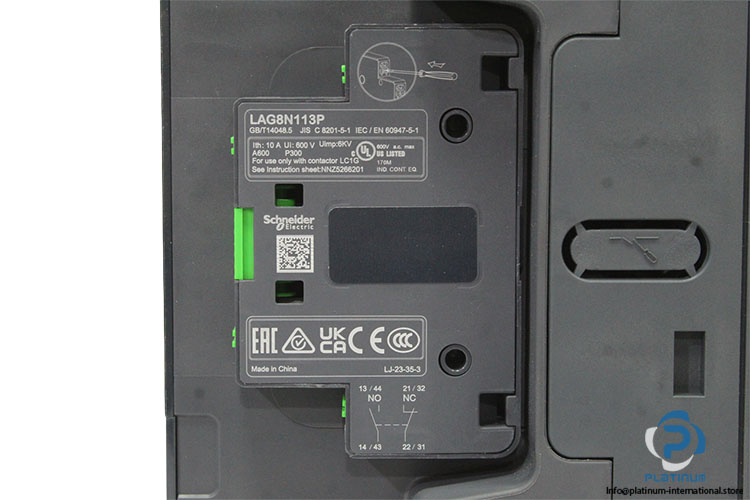

Attached with	SCHNEIDER LAG8N113P Auxiliary contact block
[Ue] rated operational voltage, Auxiliary contact block	600 V AC 25...400 Hz
Pole contact composition, Auxiliary contact block	1 NO + 1 NC
Height, Auxiliary contact block	2.2 in (55.8 mm)
Width, Auxiliary contact block	0.6 in (15.4 mm)
Depth, Auxiliary contact block	3.3 in (84.8 mm)

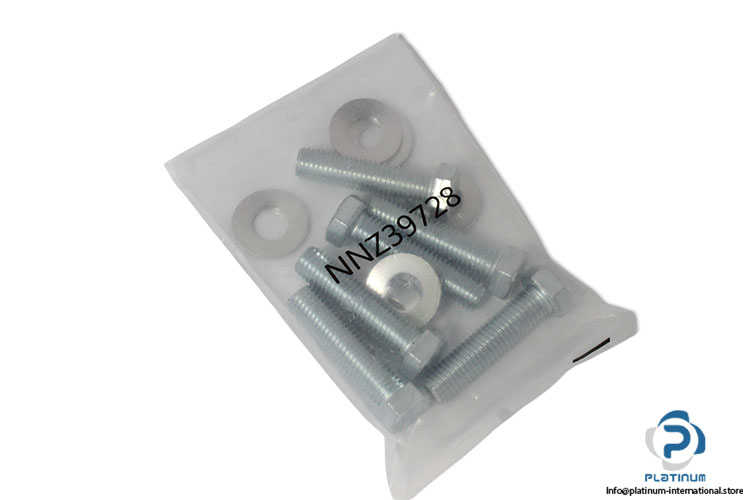

Attached with 2	NNZ39728 assembly kit
Stock Key	CON003
Condition	New
SKU	1099313
Weight	16,4
