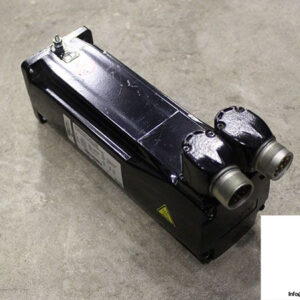

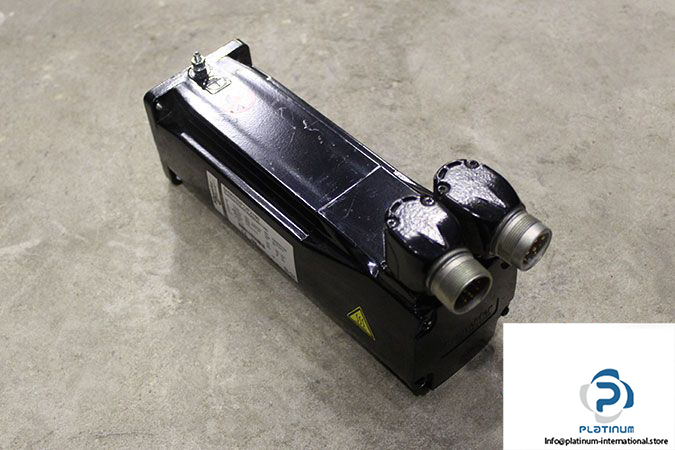

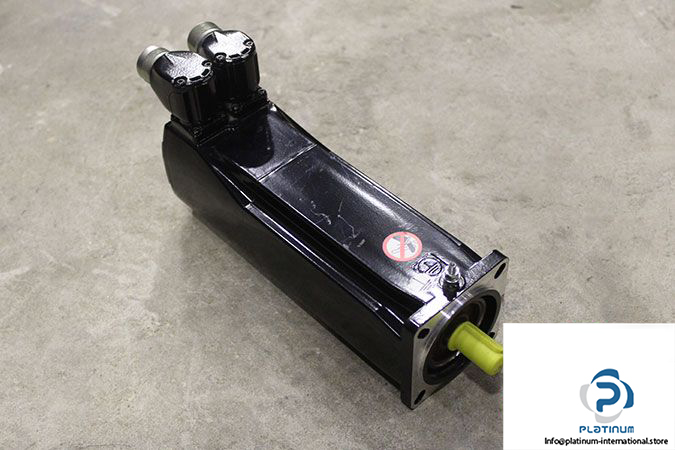

Schneider SH30702P12F2100 Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motor

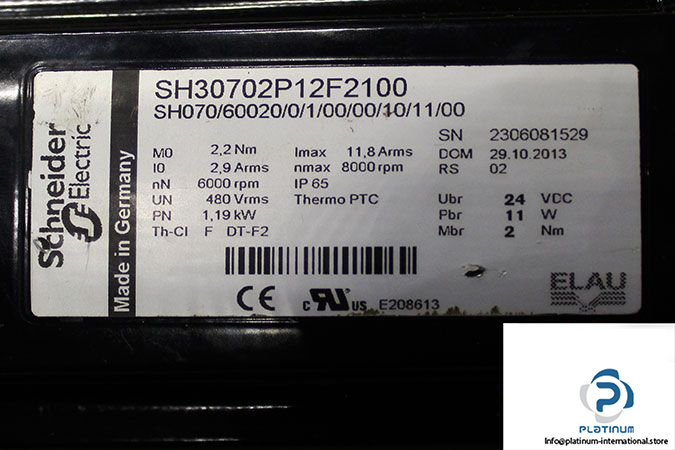

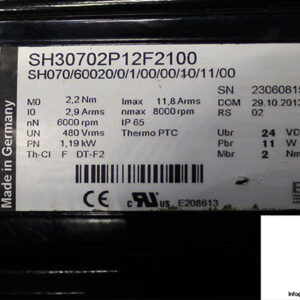

Model: SH30702P12F2100

Part No.: SH070/60020/0/1/00/00/10/11/00

Device Short Name: SH3……P

Rated Supply Voltage [V]: 115…480

Nominal Speed [rpm]: 6000

Maximum Mechanical Speed [rpm]: 8000

Continuous Power [W]: 1130

Nominal Output Power [W]: 1190

Continuous Stall Current [A]: 2.9

Maximum Current Irms [A]: 11.8

Maximum Axial Force [N]: 80

Continuous Stall Torque [Nm]: 2.2

Peak Stall Torque [Nm]: 7.6

Number of Motor Pole: 3

Brake torque [Nm]: 2

Brake Power [W]: 11

Brake Voltage [VDC]: 24

Shaft End: Parallel Key

Shaft Diameter [mm]: 11

Shaft Length [mm]: 23

Key Width [mm]: 4

Motor Flange Size [mm]: 70

Network Number of Phases: Three phase

Speed Feedback Resolution: 128 Periods

Degree of Protection [IP]: 65

Thermal Class: F

Weight [kg]: 3.23
