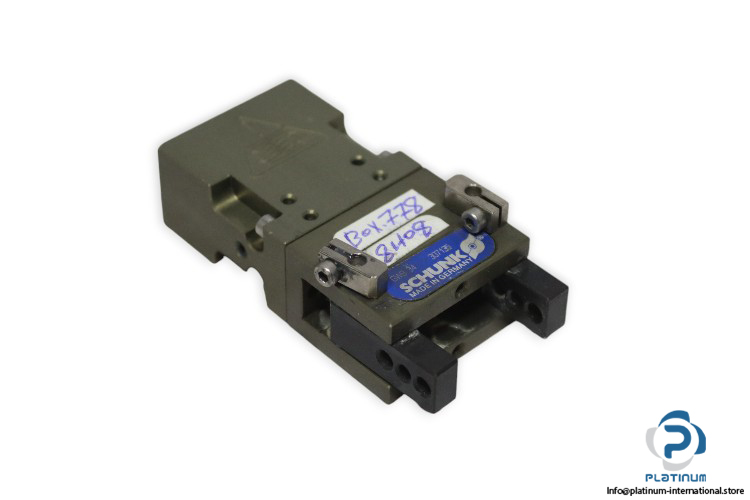

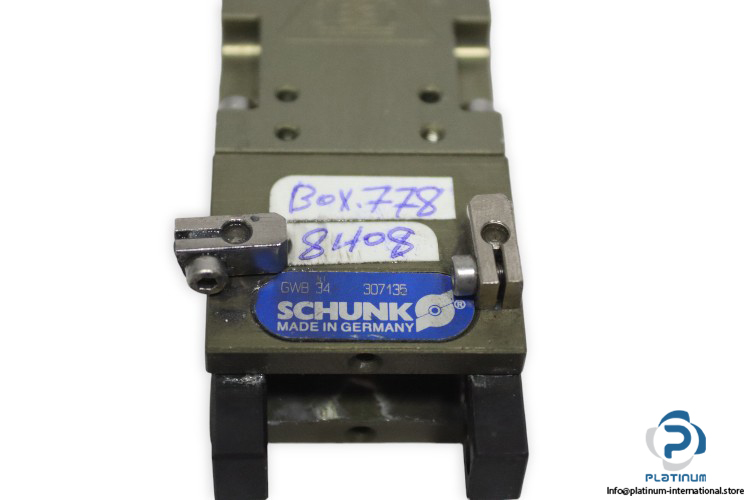

Schunk GWB 34 Angular Gripper

Manufacturer: SCHUNK
Type: Angular/radial gripper
Model: GWB34
Part No.: 307135

Opening angle per jaw: 90°
Opening angle per jaw up to: 2°
Closing moment: 2.112 Nm
Closing moment ensured by spring: 0.5 Nm
Recommended workpiece weight: 0.3
Air consumption per double stroke: 4.5 cm³
Nominal pressure: 6 bar
Minimum pressure: 4 bar
Closing time: 0.3 s
Opening time: 0.4 s
Max. permitted finger length: 40 mm
Connection: 5 mm
