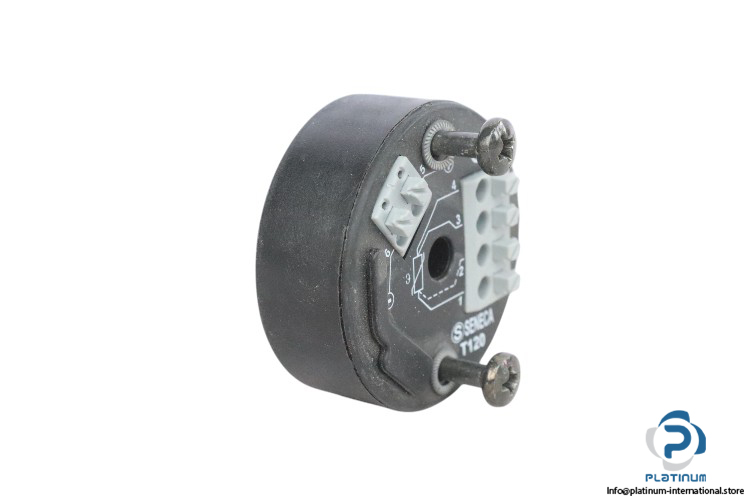

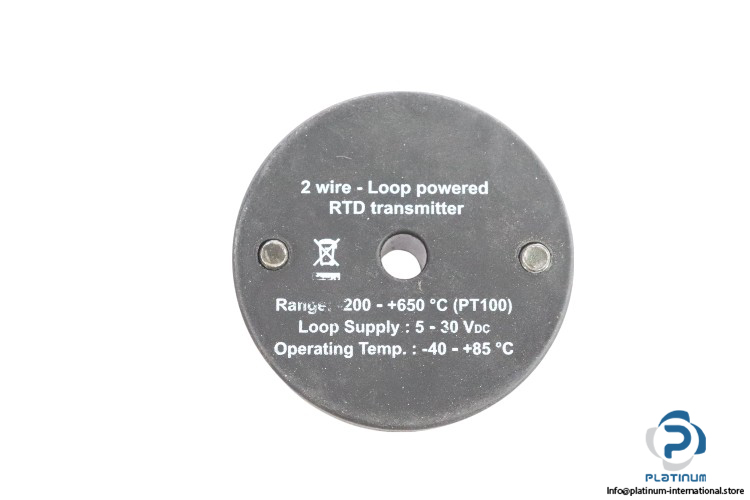

Seneca T120 Loop Powered Transmitter
Lusgevoede zender De Seneca lusgevoede zender T120 biedt betrouwbare 16-bit meetomzetting, een voedingsspanning van 5 tot 30 VDC en een responstijd van 220 ms, waardoor hij ideaal is voor industriële en automatiseringstoepassingen met IP20 bescherming en bedrijfstemperaturen van -40°C tot 85°C.
Seneca Loop Powered Transmitter T120
The Seneca Loop Powered Transmitter T120 is designed to provide precise and reliable measurements for industrial and automation applications. With a wide operating voltage range of 5 to 30 VDC, this transmitter is suitable for use in various systems requiring efficient data conversion and signal processing.
The T120 features a 16-bit measurement conversion for high accuracy and a fast response time of just 220 ms. It offers a protection degree of IP20, making it ideal for use in controlled environments. The transmitter has 6 spring terminals for conductor sections from 0.2 to 2.5 mm², providing secure and reliable connections. It also includes a 4-pin TTL serial programming connector for easy setup and configuration.
Constructed from PA6 reinforced with glass fibre, the T120 is built for durability and long-lasting performance, even in challenging environments. Its operating temperature range of -40 to 85°C ensures reliable operation in extreme conditions, making it a versatile choice for industrial and automation processes.
Manufacturer: Seneca
Type: Loop Powered Transmitter
Model: T120
The Seneca Loop Powered Transmitter T120 is ideal for industrial and automation applications that require reliable, accurate measurements and high-performance signal conversion, providing a versatile and durable solution for process control systems.
| Power Supply | 5 to 30 VDC |
| Protection Degree | IP20 |
| Frequency | 50 / 60 Hz |
| Response Time | 220 ms |
| Measurement Conversion | 16 bit |

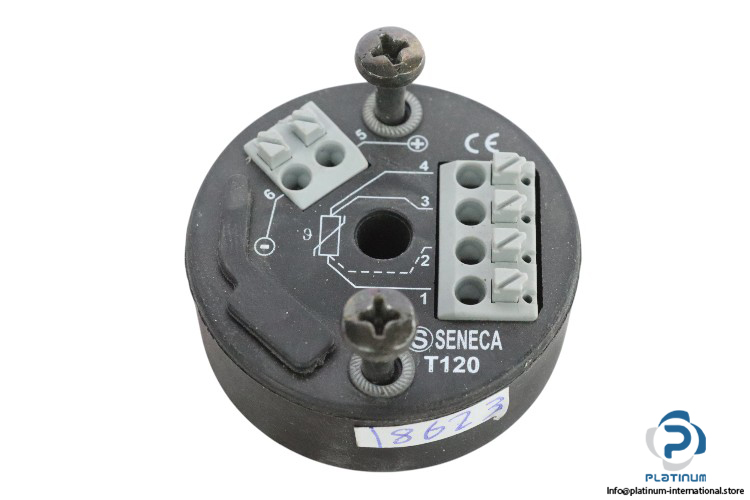

| Connection | 6 spring terminals for 0.2 to 2.5 mm² conductor section, suggested wire stripping 8 mm, 1 serial programming connector TTL with 4 pin |
| Case | PA6 reinforced with glass-fibre, black color |
| Operating Temperature | -40 to 85°C |
| Dimensions | Ø 43.7 x 20 mm |
