Siemens 5ST2 508 Distribution Block
Nieuw
Op voorraad34 eenhedenKlaar voor verzending

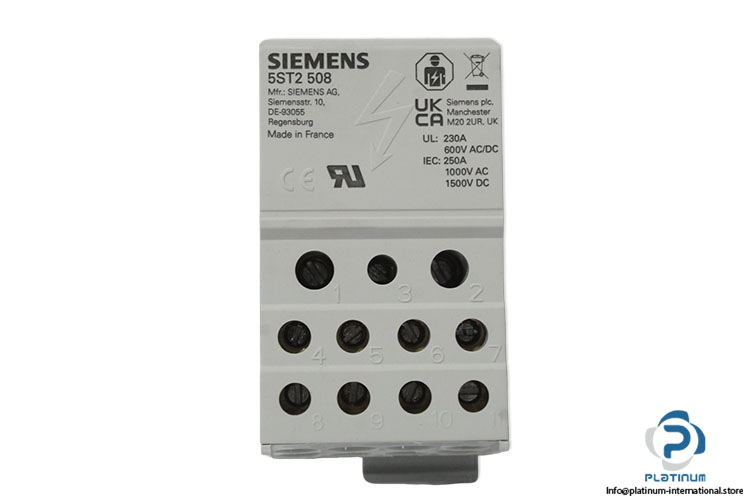

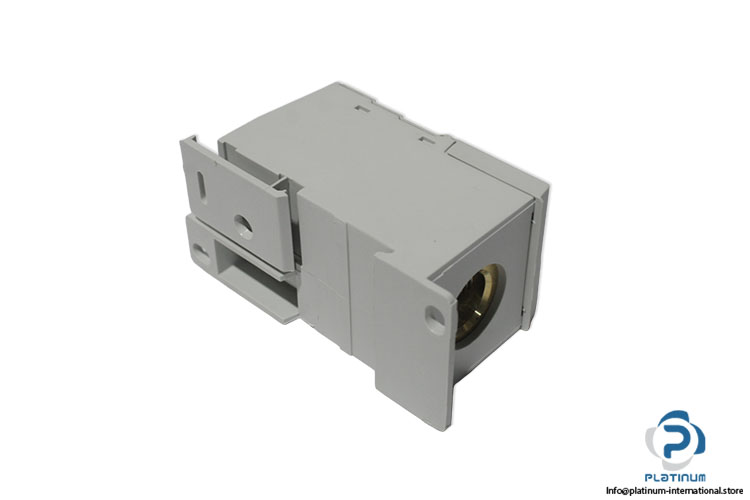

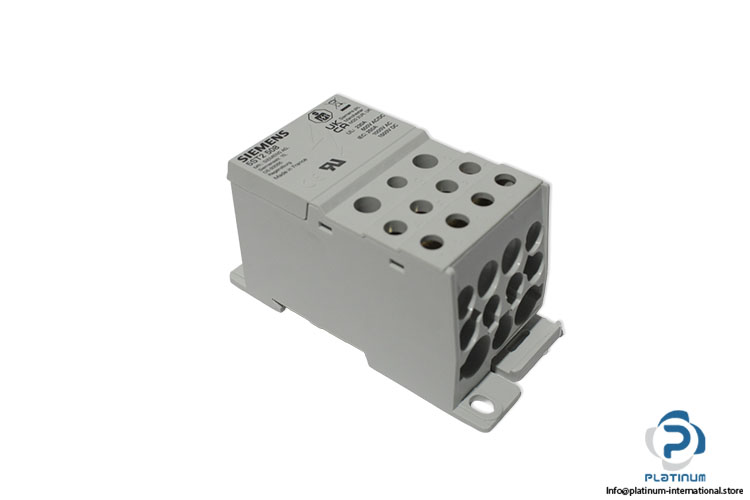

The SIEMENS 5ST2 508 SENTRON Distribution Block is a DIN rail-mounted single-pole distribution block rated up to 250 A (IEC). Featuring multiple output terminals, screw-type connections, and a compact design, it provides reliable and efficient electrical power distribution for industrial control panels and switchboards.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Code | A1501421, 4001869319018 |
| Product Brand Name | Sentron |

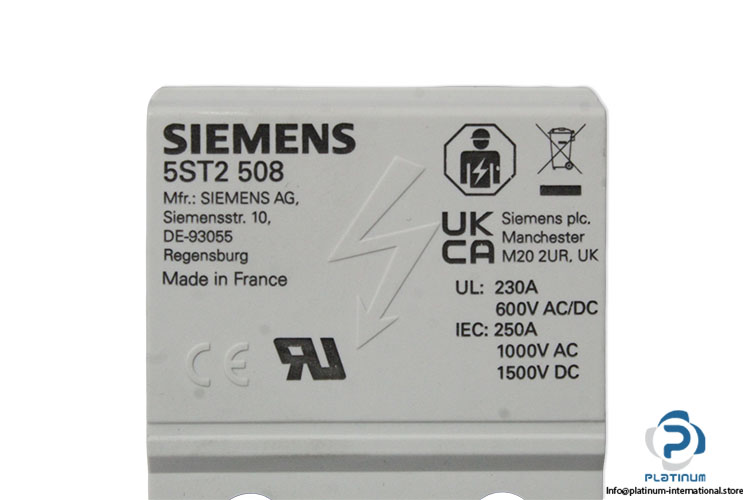

| Voltage | IEC:(1000V AC/ 1500V DC), UL:(600A AC/DC) |
| Current | UL:230A, IEC:250A |
| Number Of Terminal Levels | 3 |
| No. of poles | 1-pole |
| Input | 1x 35-120mm2 |
| Output | 2x 2.5-35mm2, 5x 2.5-16 mm2, 4x 2.5-10 mm2 |
| Type Of Connection 1&2 | Screw-Type Terminal |
| Position Of The Terminal | bottom |
| Height | 44 mm |
| Length | 96 mm |
| Fastening Method | Din Rail |
| ambient temperature | -25 to 70 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093462 |
| Weight | 0,43 |
