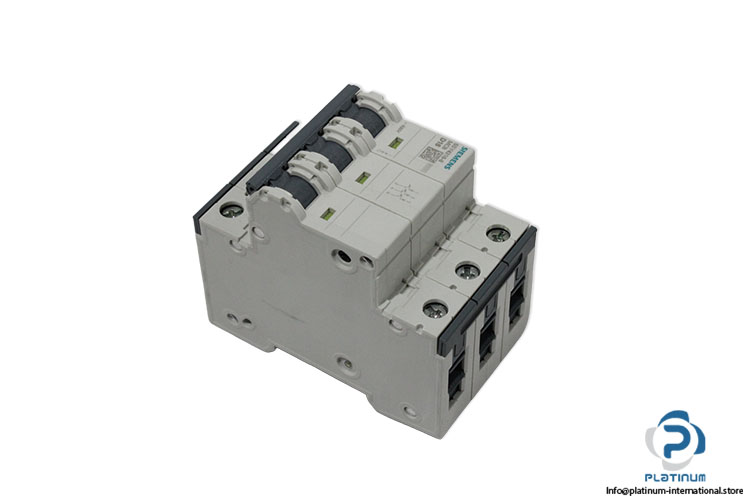

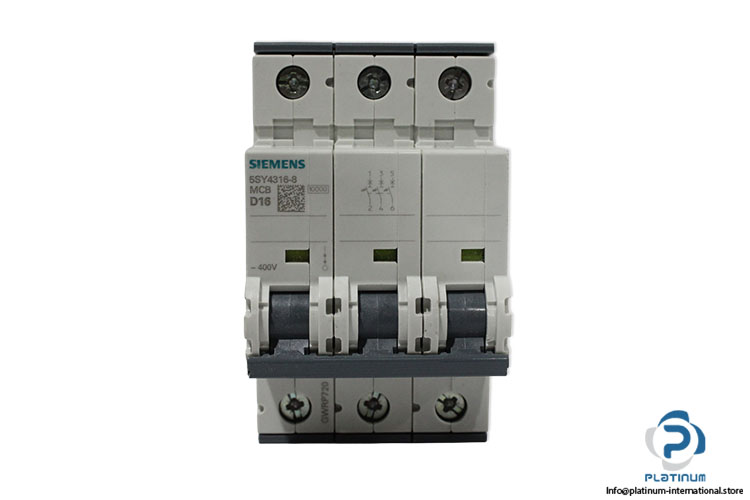

Siemens 5SY4316-8 Miniature Circuit Breaker
Nieuw
Op voorraad2 eenhedenKlaar voor verzending
Miniature Circuit Breaker SIEMENS SENTRON 3-pole miniature circuit breaker with 16 A operational current, D tripping characteristic, and IP20 protection, designed for industrial electrical circuit protection.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Product Brand Name | SENTRON |
| Supply Voltage | 400V AC, 60V DC |
| Insulation Voltage | 440 V |
| Operational Current | 16 A |
| Switching Capacity Current | 20kA |
| No. of poles | 3 |
| Tripping Characteristic Class | D |
| Frequency | 50/60 Hz |
| Power Loss | 1,6W |
| short-circuit current breaking capacity (Icn) | 5 kA |
| Number Of modular Width Units | 3 |
| Fastening Method | Quick assembly system |
| Mounting Position | Any |
| Tightening Torque | 2.5 to 3.5 N·m |
| Ambient Temperature | -40 to 70 °C |
| Protection Degree | IP20 |
| Diameter | 70 mm |
| Dimensions | 90x54x76 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093846 |
| Weight | 0,43 |
