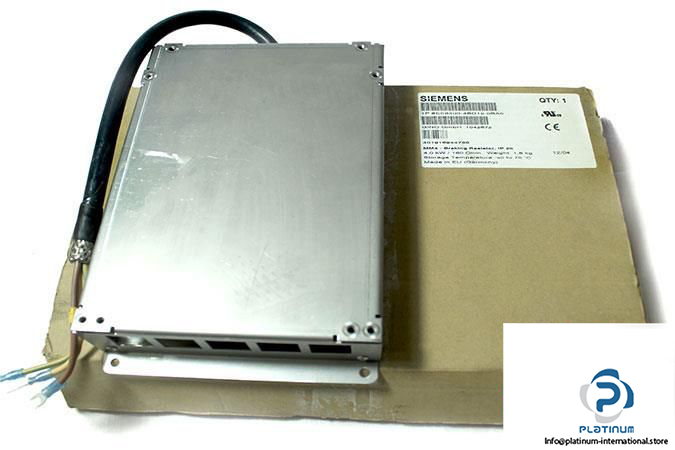

Siemens 6SE6 400-4BD12-0BA0 Brake Resistor
110,00$
BRAKE RESISTOR
Siemens MICROMASTER 440 Brake Resistor is built for high-performance energy dissipation in inverter-controlled systems. Rated for 900V DC with a max output of 4 kW, 160 Ohm resistance, and IP20 protection.SIEMENS MICROMASTER 440 BRAKE RESISTOR
The Siemens MICROMASTER 440 Brake Resistor (MRN: 6SE6400-4BD12-0BA0) is specifically engineered for use with the MICROMASTER 440 inverter series. Designed to rapidly dissipate braking energy in applications with large inertia loads, this unit ensures controlled deceleration by diverting excess DC link voltage to a dedicated resistor.
Manufacturer: SIEMENS
Family: MICROMASTER 440
Type: Brake Resistor

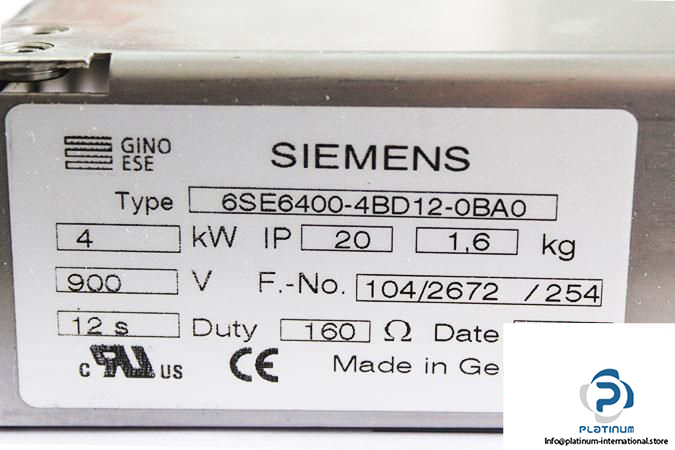

MRN: 6SE6400-4BD12-0BA0
F NO: 104/2672 /254
This brake resistor enhances braking performance and protects your drive system. Also check out related product families like Servo Motors and Sensors available at Platinum International.
| DC Line Voltage | 900 V |
| Output Power | Minimum 2.2 kW, Maximum 4 kW |
| Duty Cycle | 12S |
| Resistance | 160 Ohm |
| Protection Rating | IP 20 |
| Dimensions | 239 x 149 x 43.5 mm |
