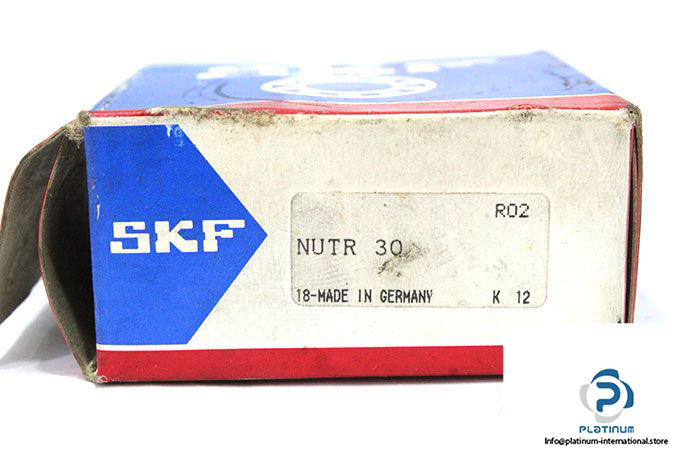

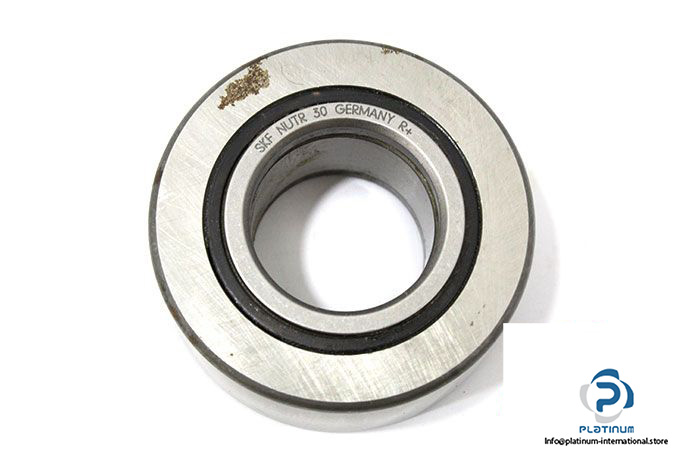

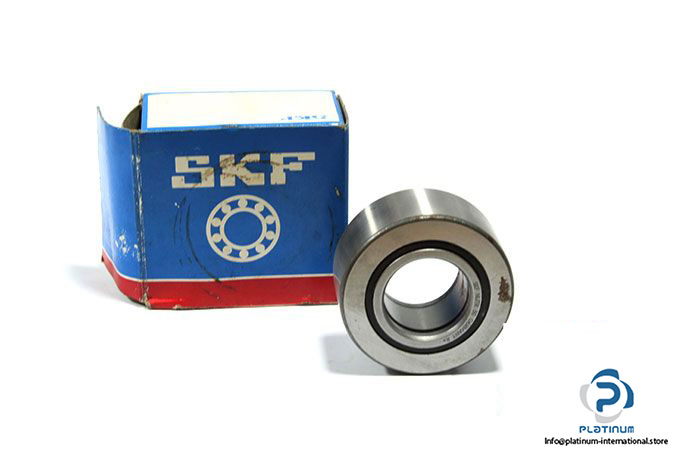

SKF NUTR30 Support Roller
Nieuw
Op voorraad2 eenhedenKlaar voor verzending
Looprol SKF NUTR30 vorktype looprol met dubbele afdichting, ontworpen voor hoge radiale belastingen en soepele werking in nokkenmechanismen, transportsystemen en industriële geleidingsrails.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
SKF NUTR30 Yoke-Type Track Roller
The SKF NUTR30 Yoke-Type Track Roller is a high-performance rolling bearing designed for track-guided systems and cam follower applications. Engineered by SKF for reliability and durability, this track roller offers excellent load capacity, smooth rolling performance, and secure sealing for demanding industrial environments.
Manufacturer: SKF
Type: Yoke-Type Track Roller
Model: NUTR30
| Bore Diameter | 30 mm |
| Outer Diameter | 62 mm |
| Total Width | 29 mm |
| Width, Outer Ring | 28 mm |
| Basic Dynamic Load Rating | 41.3 kN |
| Basic Static Load Rating | 47.5 kN |
| Limiting Speed | 2600 r/min |
| Sealing | Seal On Both Sides |
| Recommendation | Ideal for cam drives, linear guide tracks, and conveyor systems where high radial loads and smooth rolling motion are required. |
