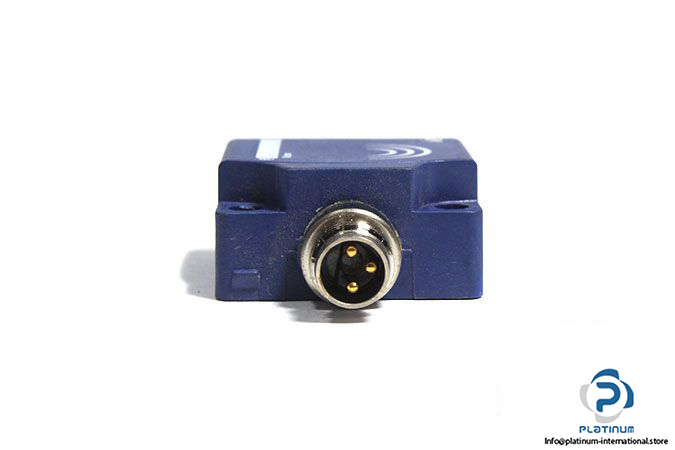

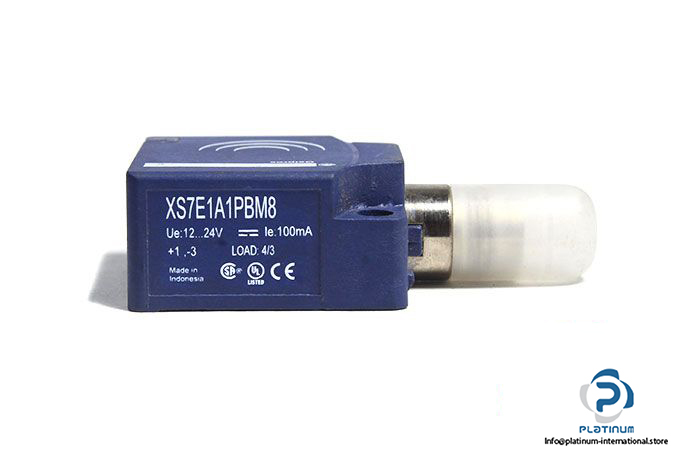

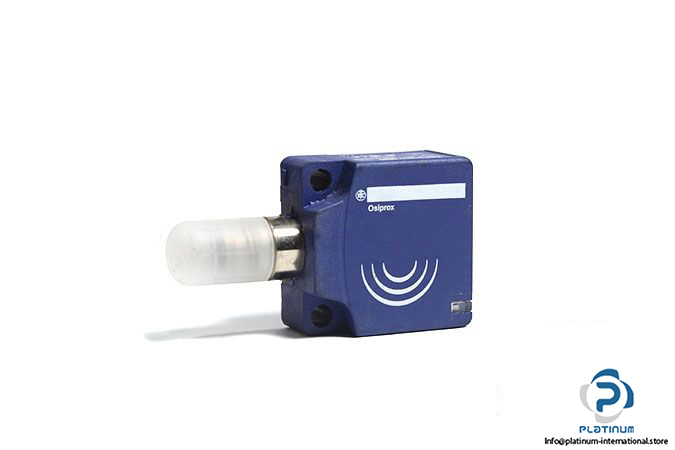

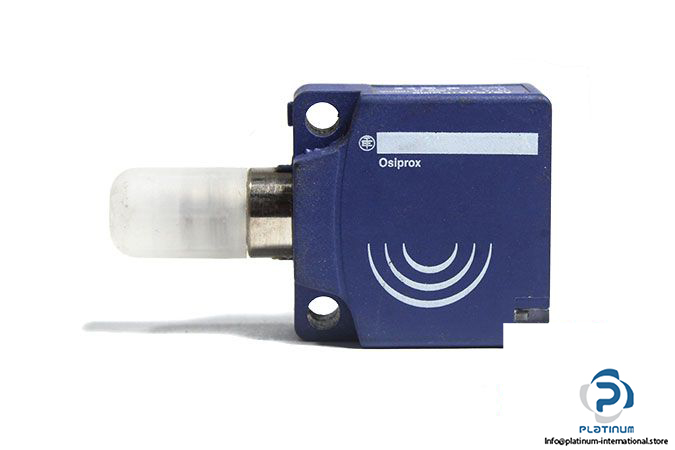

Telemecanique XS7E1A1PBM8 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS7E1A1PBM8



Range of Product: OsiSense XS (Osiprox)

Series Name: General Purpose

Nominal Sensing Distance: 10 mm

Voltage Limits: 12 … 24 V DC

Switching Capacity: 100 mA

Current Consumption, No-Load: 10 mA

Output Type:  PNP

Output Function: Normally Closed

Switching Frequency: 1000 Hz

Detector Acceptance: Flush Mountable

Body Type: Fixed

Material: Plastic

Enclosure Material: PBT

Output State: 1 LED (yellow)

Connection: 3 Pins M8 Male Connector

Dimensions: 26 x 26 x 13 mm

Degree of Protection: IP67

Ambient Temperature: -25 … 70 °C

Weight: 0.02 kg
