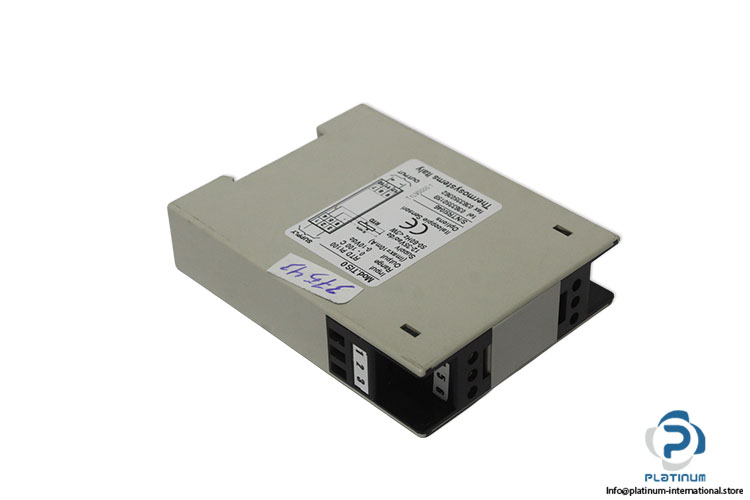

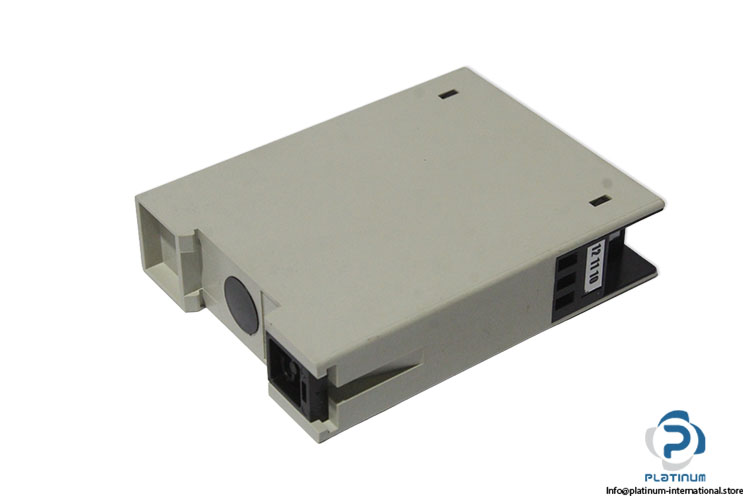

Thermosystems TIS 0 Active Isolated Signal Conditioner
Nieuw
Op voorraad2 eenhedenKlaar voor verzending
Active Isolated Signal Conditioner THERMOSYSTEMS TIS0 active isolated signal conditioner with RTD Pt100 input, configurable current and voltage outputs, and electrical isolation for industrial process control and automation systems.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

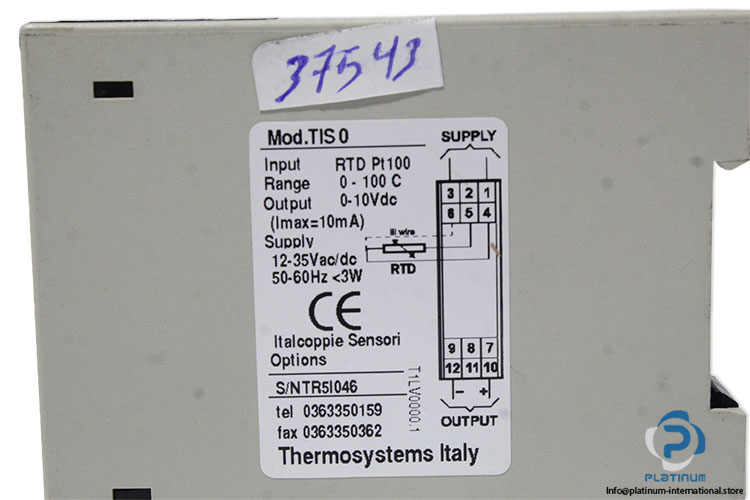

| S/N | TR51046 |
| Code | T1LV0000.1 |
| designed to | convert industrial input signals (such as millivolts or linear resistance) into stable, isolated analog output signals like current or voltage |
| Input | RTD Pt100 |
| Temperature Range | 0 - 100 C |
| Output voltage | 0-10Vdc |
| Supply voltage | 12...35 Vac/dc |
| Current output signal range | 0...20 mA or 4...20 mA or other |
| Voltage output signal range | 0...5 Vdc or 0...10 Vdc or other |
| Load resistance | 500 ohm (for current output) |
| Load output | 10 mA (for voltage output) |
| Max. wire size | 1 x 1 mm2 stranded wire |
| Operating Temperature – Humidity | 0...+50°C 18...85% RH (n.c.) |
| Dimensions | 22 x 75 x 99 (h) mm |
| Protection degree (encl. / terminal) | IP20 / IP00 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099708 |
| Weight | 0,12 |
