TR Electronic CEV65M-00444 Absolute Encoder
Nieuw
Op voorraad1 eenheidKlaar voor verzending
ABSOLUTE ENCODER
TR ELECTRONIC CEV65M-00444 Absolute Encoder delivers 4096 PPR resolution and up to 6000 RPM speed. Designed with SSI RS422 interface, IP65 protection, and M23 12-pin connector for robust industrial use.+GF+0751416651091819140966000AbsoluteCEV65M-00444comasConnectorElectronicEncoderFeedbackHighIndustrialIP65M23PPRResolutionRotaryrpmRS422SSITR
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
TR ELECTRONIC CEV65M-00444 ABSOLUTE ENCODER
The TR ELECTRONIC CEV65M00444 Absolute Encoder is a precision feedback device engineered for high-resolution rotary position sensing in automation and motion control systems. Built with a durable housing, IP65 protection, and high-speed capability, it offers reliable performance in industrial environments.
Manufacturer: TR ELECTRONIC
Type: Absolute Encoder
Model: CEV65M-00444
Part No.: 07514 / 18191 1665109
Shaft Diameter: 12 mm
Steps/Rev No.: 4,096 PPR
Revolution: 4096
Speed Max.: 6000 RPM
Output Interface: SSI RS422
Voltage Supply: 11 to 27 V DC
Flange Type: ZB80
Shaft Type: 10 FL/19,5

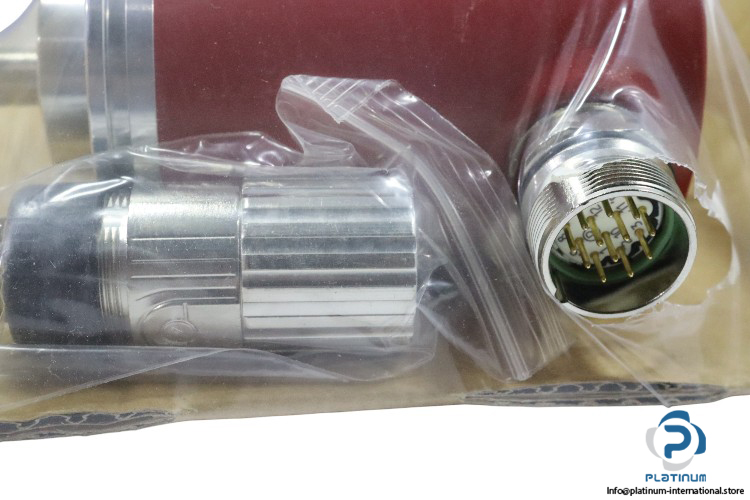

Electrical Connection: M23 Connector 12-Pin
Flange Diameter: 36 mm
Length, Diameter: 93 mm, 65 mm
Protection Class: IP65
Temperature: 0 to 60 °C
