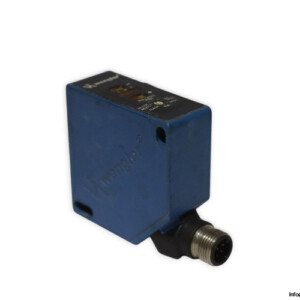

Wenglor YN33PBV3 Photoelectric Reflex Sensor

Manufacturer: WENGLOR
Type: Photoelectric Reflex Sensor, Background Suppression
Product Nr.: YN33PBV3

This sensor detects distance by measuring angles. And particularly good at
recognizing objects in front of any background (High precision background
suppression up to 300 mm
Two-Lens Optic: Yes, transmitter Diode, Receiver Diode
Sensing range: 300 mm
Detection Range: 60,150,300 mm
Adjustable Range: 65 … 300 mm
Response time: 500 µs
Operating Voltage: 10 … 30 V DC
Current consumption: < 20 mA
Output current: 200 mA
Switching frequency: 1 KHz
Electrical design: PNP
Switching output: Normally open
Light source: Red laser
Connector type: M12,4-pin
Protection class: III
Enclosure rating: IP67
Ambient Operating temperature: -25 … 60°C
Dimensions: 18 x 32 x 75 mm
Housing: Rectangular
Housing material: Plastic
