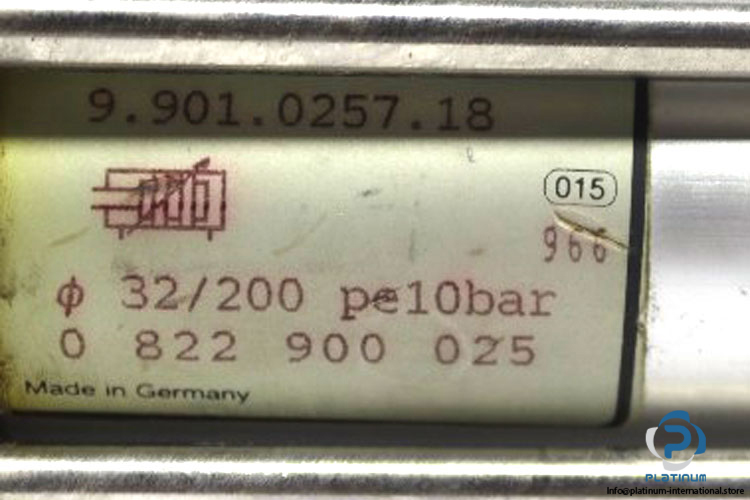

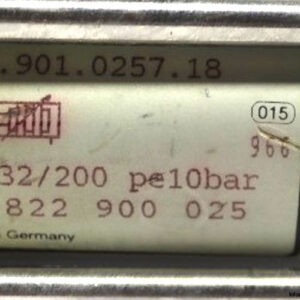

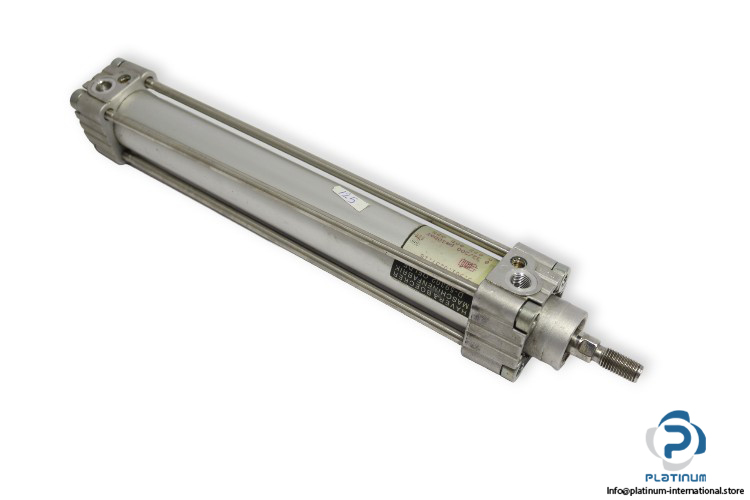

0 822 900 025 ISO Cylinder

Type: ISO Cylinder
Model: 0822900025
Part. No: 9.901.0257.18


Media: Compressed Air
Stroke (mm): 200
Bore diameter (mm): 32
BorexStroke (mm): 32×200
Rod diameter (mm): 12
Fram Dimensions (mm): 46×314
Maximum pressure (bar): 10
Pneumatic connection: G1/8
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
