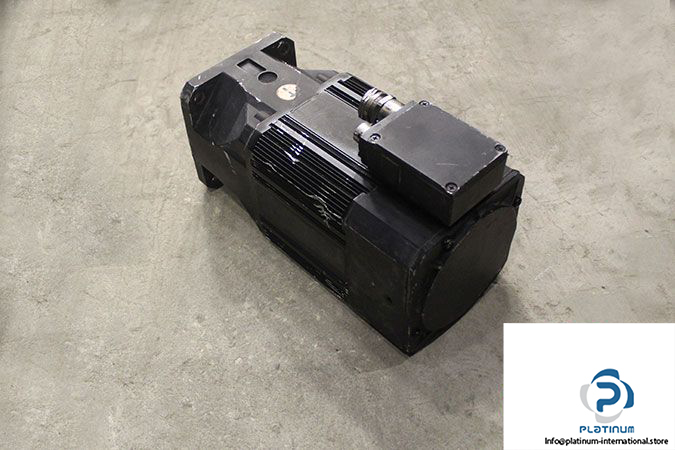

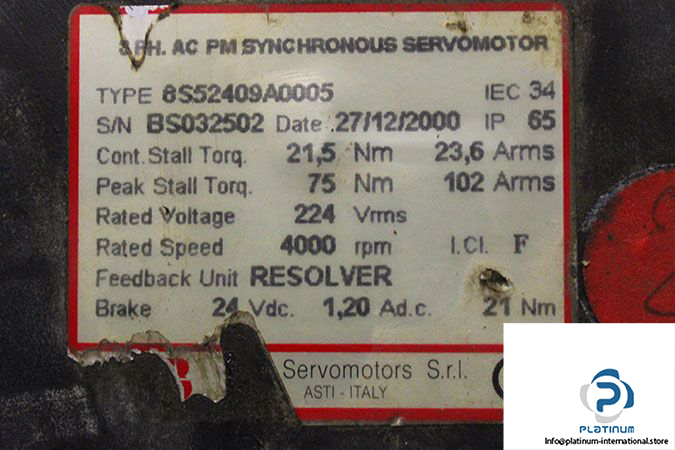

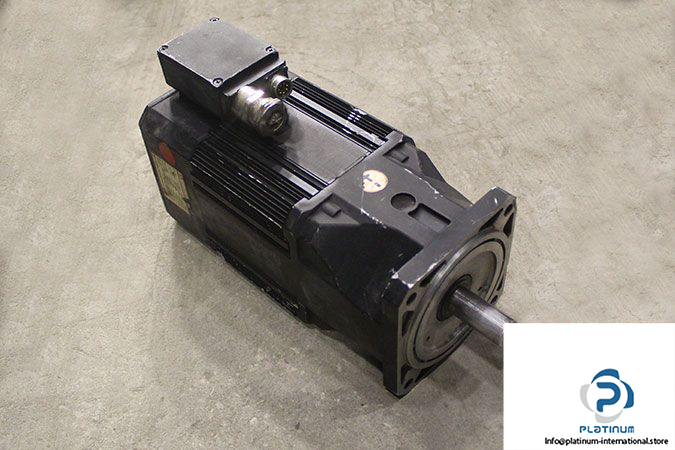

ABB 8S52409A0005 AC Synchronous Servomotor

Manufacturer: ABB

Type: AC Synchronous Servo Motors

Model: 8S52409A0005

Cont. Stall Torque [Nm]: 21.5

Peak Stall Torque [Nm]: 75

Cont. Stall Current [A]: 23.6

Peak Stall Current [A]: 102

Rated Voltage [V]: 224

Rated Speed [rpm]: 4000

Feedback Unit: Resolver

Constant Torque [Nm/A]: 42

Brake Voltage [VDC]: 24

Brake Current [A]: 1.2

Brake Torque [Nm]: 21

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 23.88
