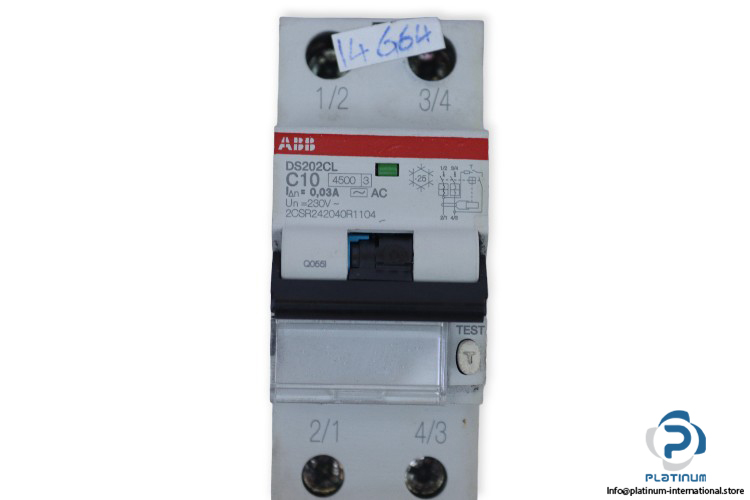

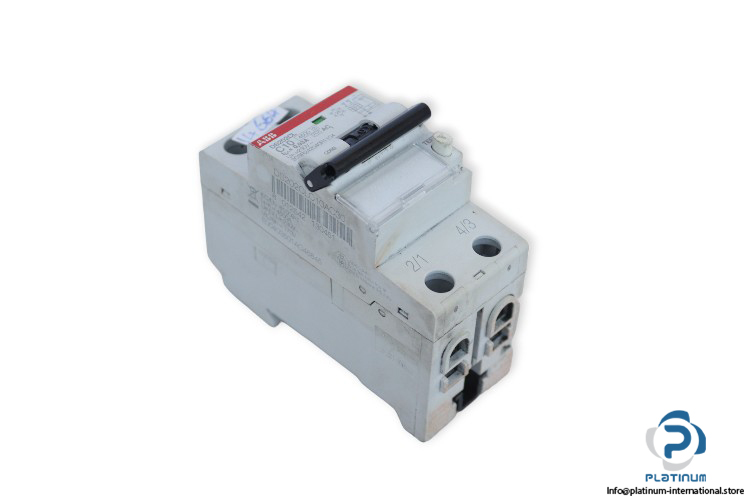

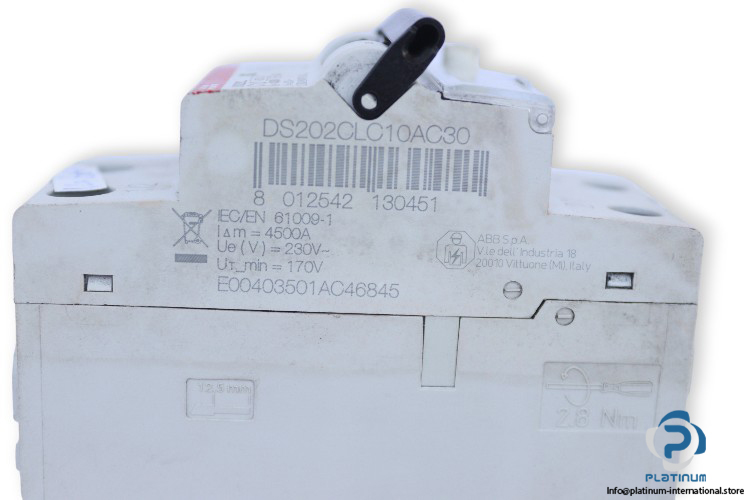

ABB DS202CL Miniature Circuit Breaker

Manufacturer: ABB
Type: Miniature circuit breaker
Model: DS202CL
Order code: 2CSR242040R1104

Rated Operational Voltage (Ue): 230 V AC
Test button operating voltage: 170 V (110 … 253 V)
Rated Current (Ie): 0.03 A
Nominal current (In): 10 A
Nominal differential breaking capacity (IΔm): 4.5 kA
Rated Impulse Withstand Voltage (Uimp): 4 kV
Service Frequency: 50 … 60 Hz
Standards: IEC/EN 61009-1
No. of poles: 2 Poles
Ambient temperature: -25 … 55°C
Dimensions (W x D x H): 85 x 69 x 35 mm
