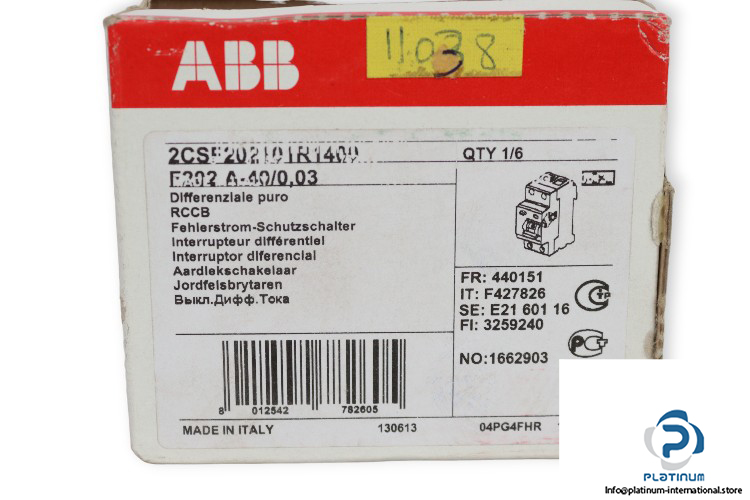

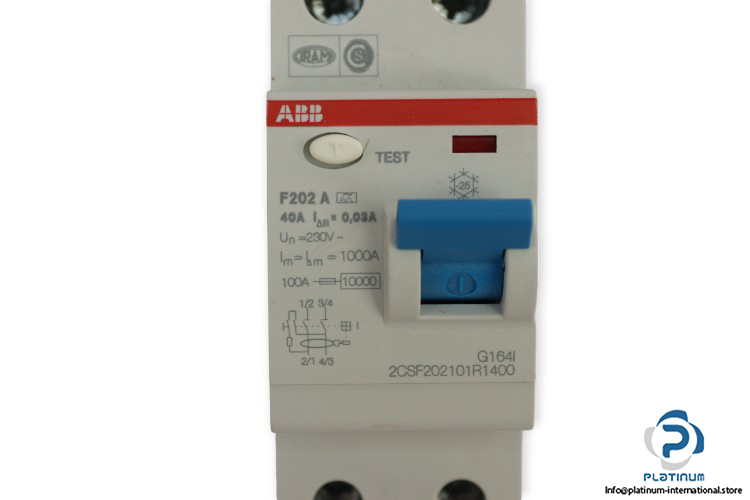

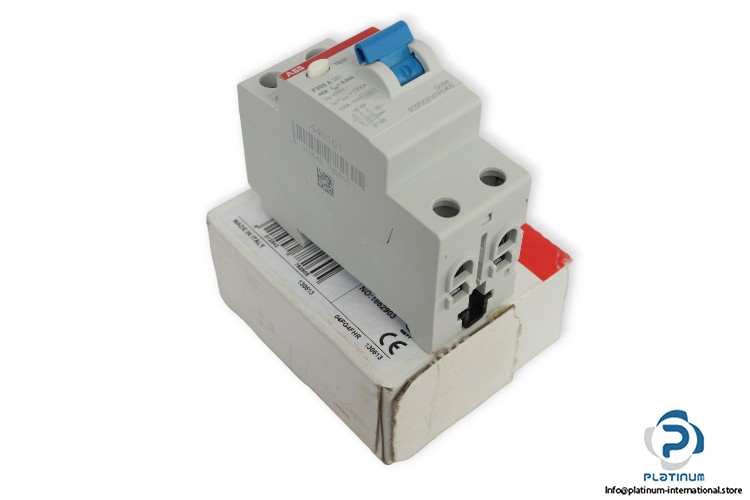

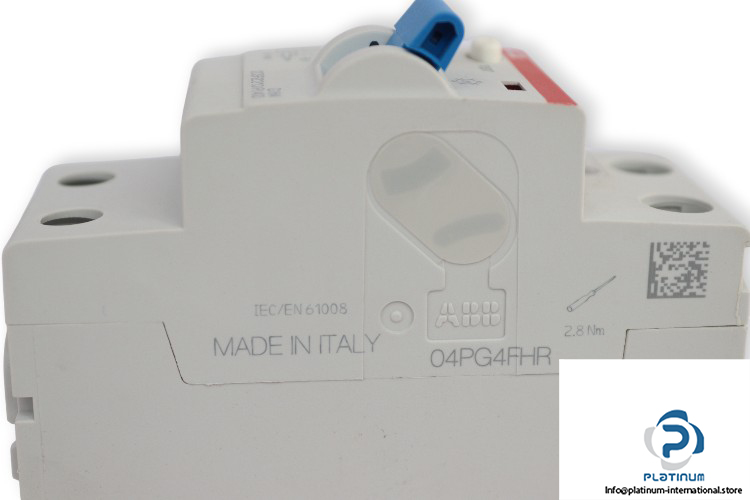

ABB F202 A-40/0,03 Residual Current Circuit Breaker

Manufacture: Abb
Type: Residual Current Circuit Breaker
Model: F202 A-40/0,03
Product No. 2CSF202101R1400

Type of Residual Current: A type
Nominal Voltage (Un): 230 V AC
Rated Insulation Voltage (Ui): 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Rated Current (In): 40 A
Rated Residual Current: 30 mA
Power Loss: at Rated Operating Conditions per Pole 2.4 W
Number of Poles: 2
Mounting Type: DIN-Rail
Ambient Temperature: -25 … 55 °C
Degree of Protection: IP2X
Pollution Degree: 2
Dimensions: 35 x 85 x 69 mm
