ABB F204 A-25/0.03 Residual Current Circuit Breaker Rccb
New
In stock1 unitReady to ship
Residual Current Circuit Breaker RCCB
ABB F204 A-25/0.03 residual current circuit breaker rated at 25 A with 30 mA sensitivity, designed for reliable protection against leakage currents in electrical installations.20025A2CSF204101R125030mA4A-25/0.03ABBBreakerCircuitCurrentDDAElectricalF204IndustrialLeakageModuleProtectionRccbResidualSeries
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

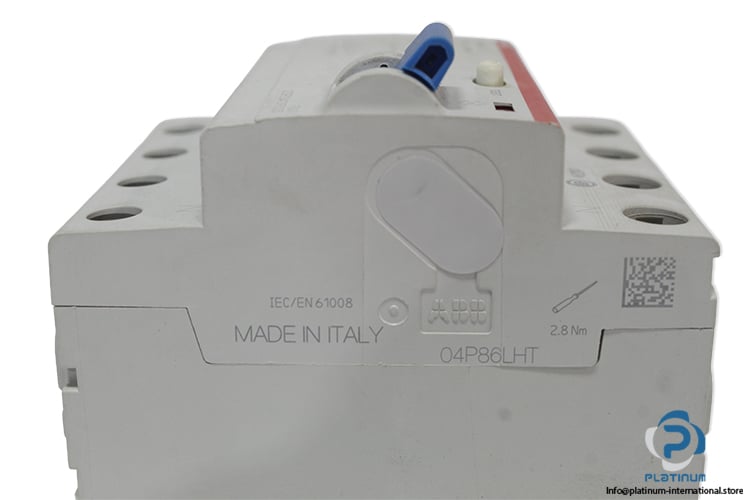

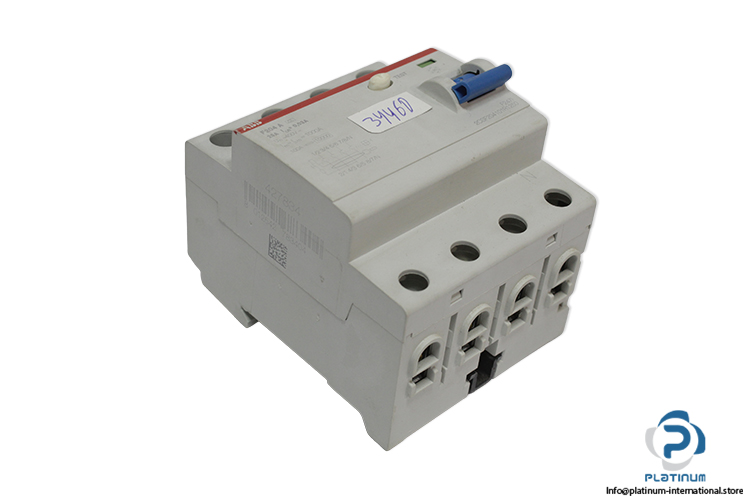

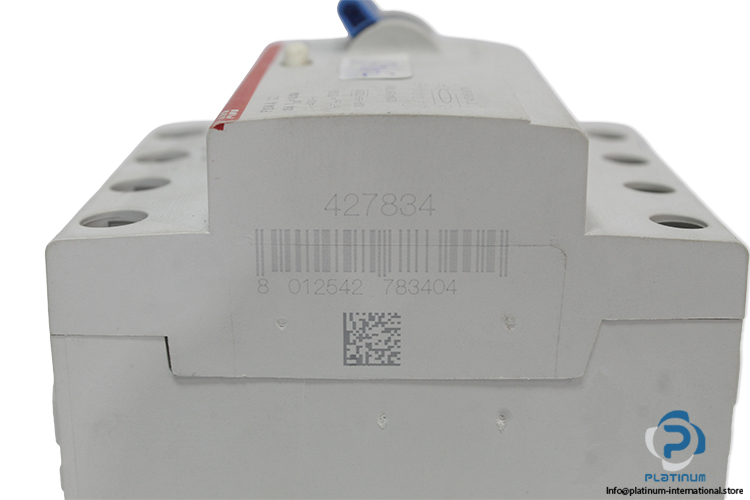

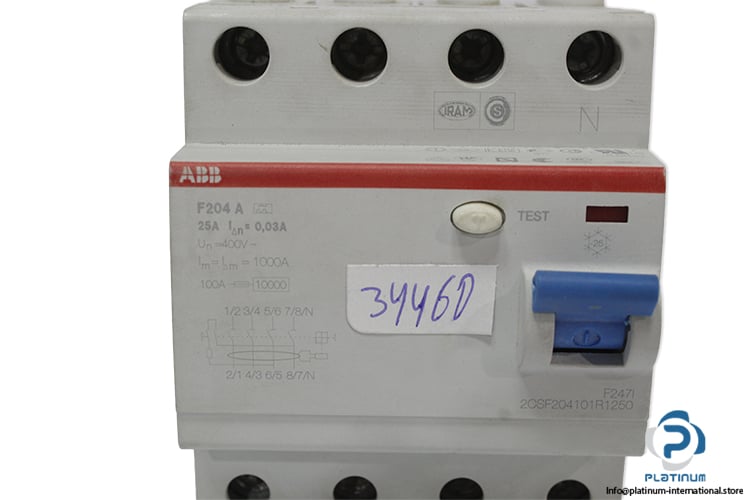

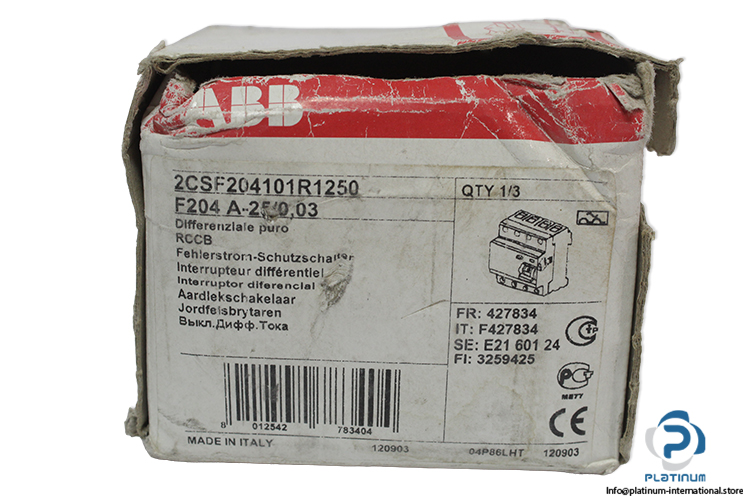

ABB F204 A-25/0.03 Residual Current Circuit Breaker RCCB
The ABB F204 A-25/0.03 is a residual current circuit breaker designed for protection against earth leakage currents in electrical installations. It provides reliable safety for industrial and commercial electrical systems.
Manufacturer: ABB
Type: Residual Current Circuit Breaker RCCB
Model: F204 A-25/0.03
Alternative Model: 04P86LHT / F2471 / 427834
ID No.: 2CSF204101R1250
Series: DDA 200
| Rated Operational Voltage | 230 / 400 V AC |
| Rated Current | 25 A |
| Rated Residual Current | 30 mA |
| Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Voltage (Uimp) | 4 kV |
| Power Loss | 3.9 W |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Number Of Modules | 4 |
| Protection Class | IP20 |
| Ambient Temperature | -25 / 55 °C |
| Dimensions | 85 X 70 X 69 mm |
