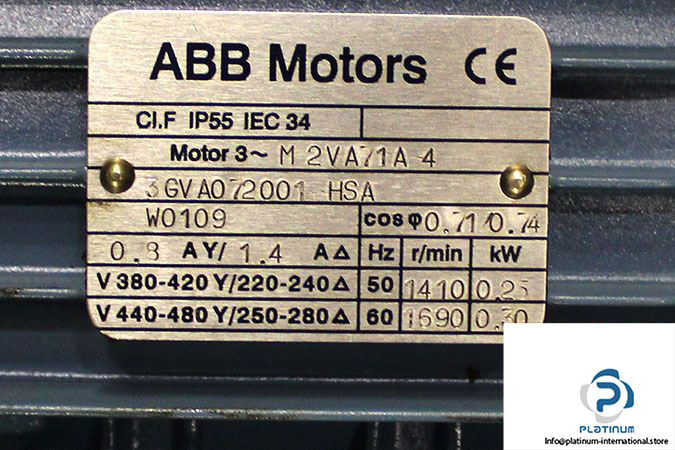

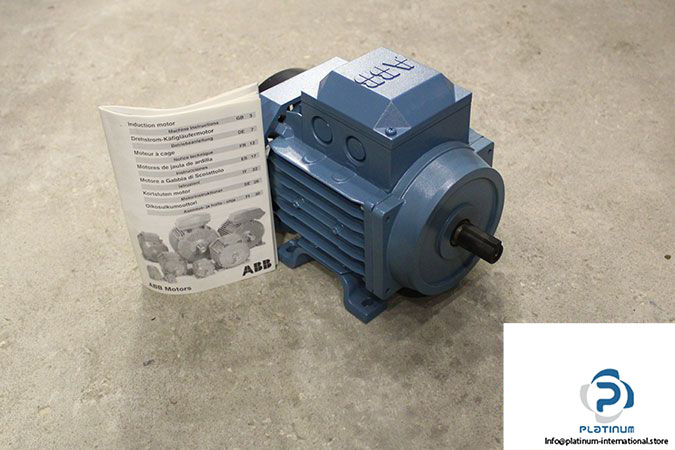

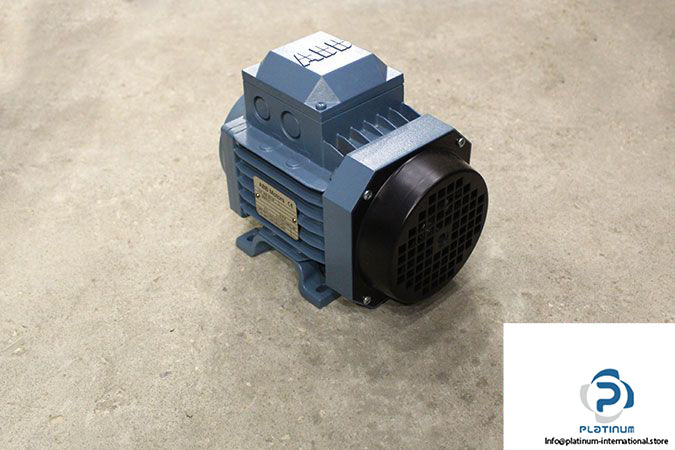

ABB M2VA71A-4 3GVA072001-ASA 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2VA71A-4 3GVA072001-ASA

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 1410 min^-1

Rated Power: 0.25 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1690 min^-1

Rated Power: 0.30 kW

Rated Current (Star): 0.8 A

Rated Current (Delta): 1.4 A

Power Factor (Star): 0.71

Power Factor (Delta): 0.74

Shaft Diameter: 14 mm

Number of Poles: 4

Protection Class: IP55

Insulation Class: F

Weight: 5.7 kg
