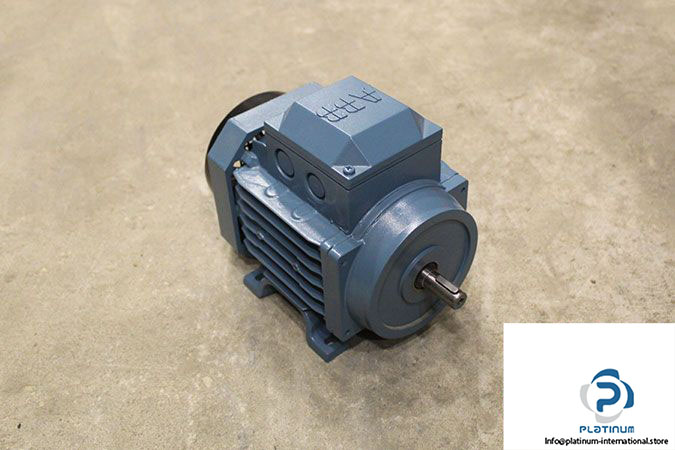

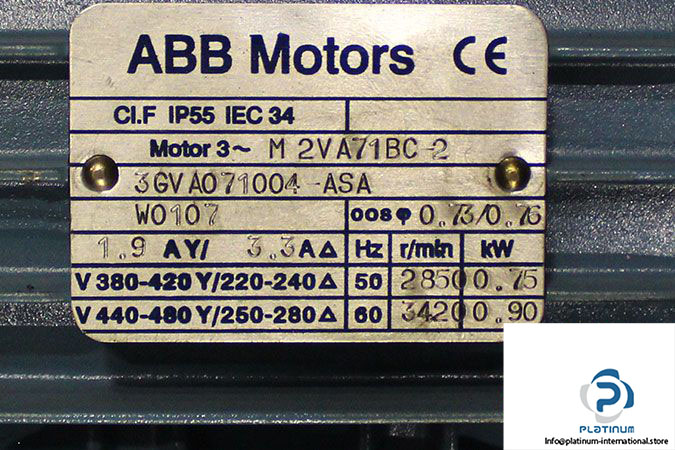

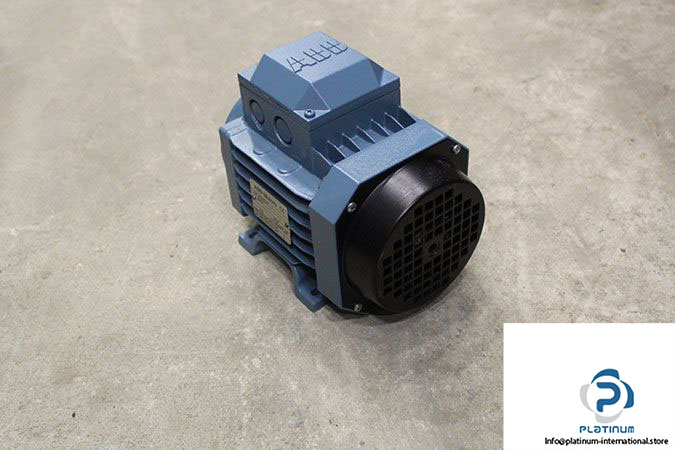

ABB M2VA71BC-2 3GVA071004-ASA 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2VA71BC-23GVA071004-ASA

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 2850 min^-1

Rated Power: 0.75 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 3420 min^-1

Rated Power: 0.9 kW

Rated Current (Star): 1.9 A

Rated Current (Delta): 3.3 A

Power Factor (Star): 0.73

Power Factor (Delta): 0.76

Shaft Diameter: 14 mm

Motor Size: 71BC

Number of Poles: 2

Protection Class: IP55

Insulation Class: F

Weight: 6.85 kg
