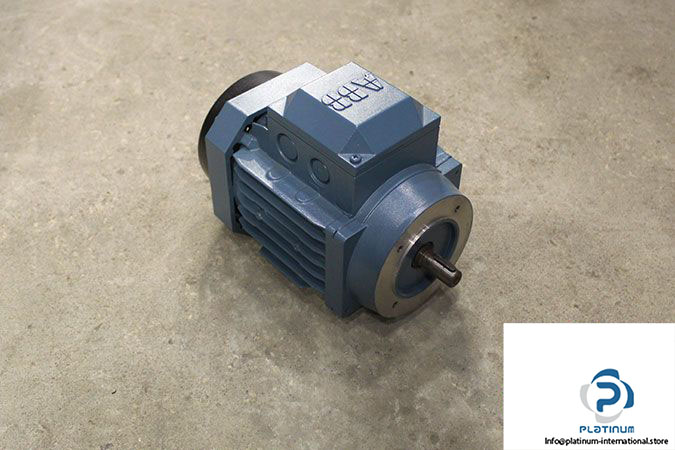

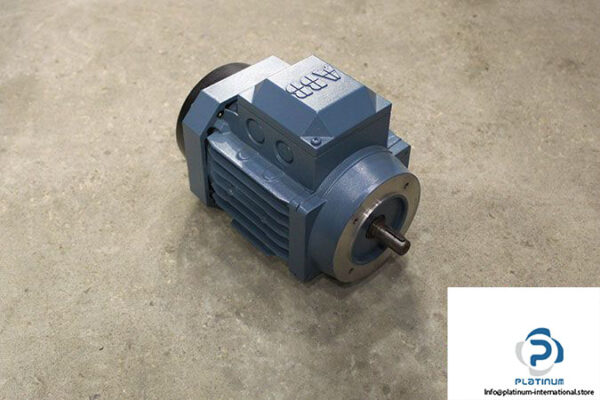

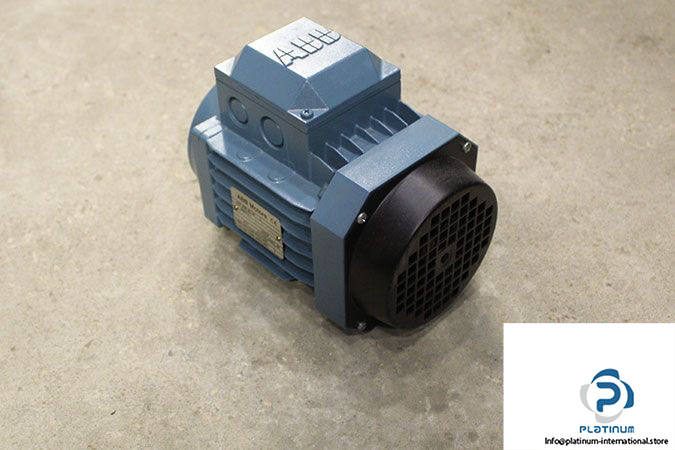

ABB M2VA71C-6 3GVA073003-CSA 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2VA71C-63GVA073003-CSA

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 920 min^-1

Rated Power: 0.32 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1100 min^-1

Rated Power: 0.38 kW

Rated Current (Star): 1.2 A

Rated Current (Delta): 2.1 A

Power Factor (Star): 0.63

Power Factor (Delta): 0.67

Shaft Diameter: 14 mm

Flange Diameter: 110 mm

Number of Poles: 6

Protection Class: IP55

Insulation Class: F

Weight: 7.55 kg
