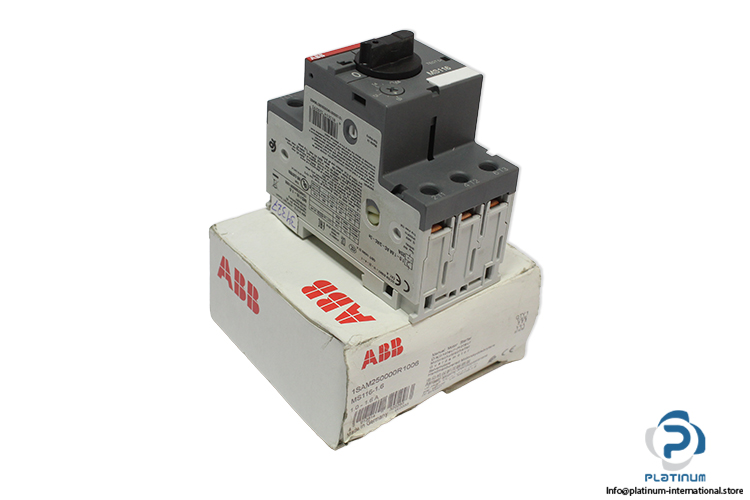

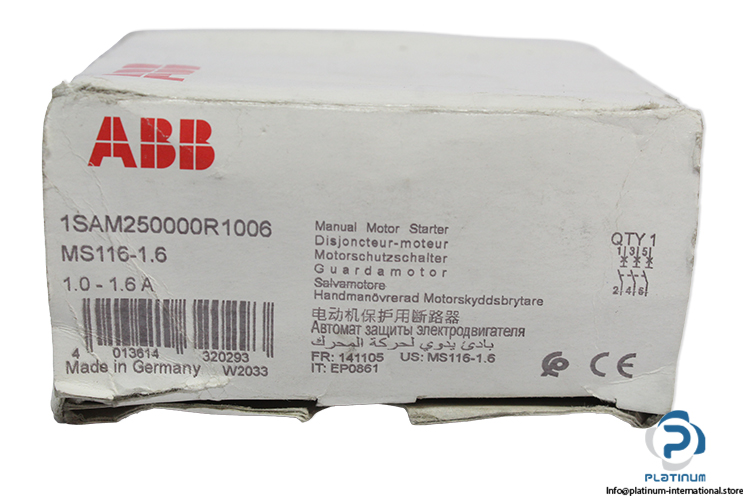

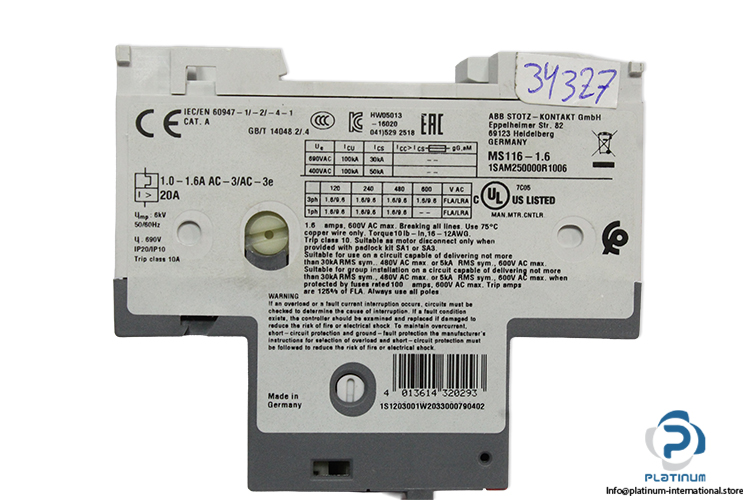

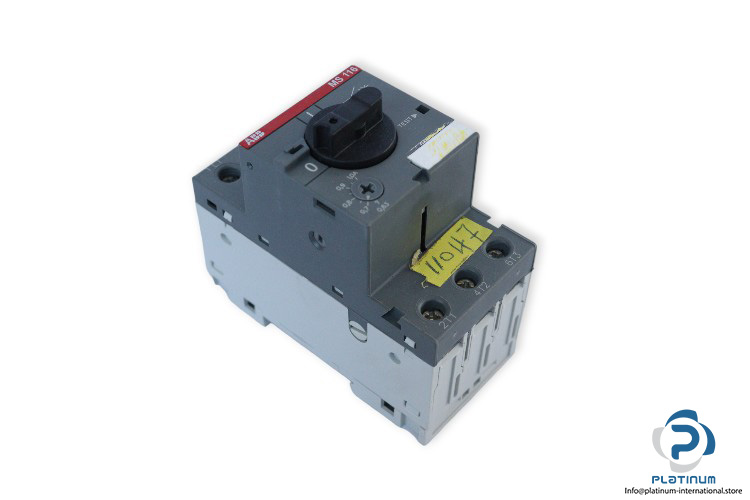

ABB MS116-1.6 Manual Motor Starter

Manufacture: Abb
Type: Manual Motor Starter
Model: MS1161.6
Product No. 1SAM250000R1006

Rated Operational Voltage Ue: 690 V AC
Setting Range: 0,63 … 1 A (AC-3), 9,6 … 14,4 A
Rated Insulation Voltage Ui: 690 V
Frequency: 50/60 Hz
Rated Impulse Voltage (Uimp): 6 Kv
Power AC-3: 0.55 kW
Rated Service Short-Circuit Breaking Capacity (Ics): 50 kA@400 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 50 kA@400 V AC
Number of Poles: 3-Pole
Actuator Type: Rotary Handle (ON / OFF)
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 90 x 45 x 85.6 mm
