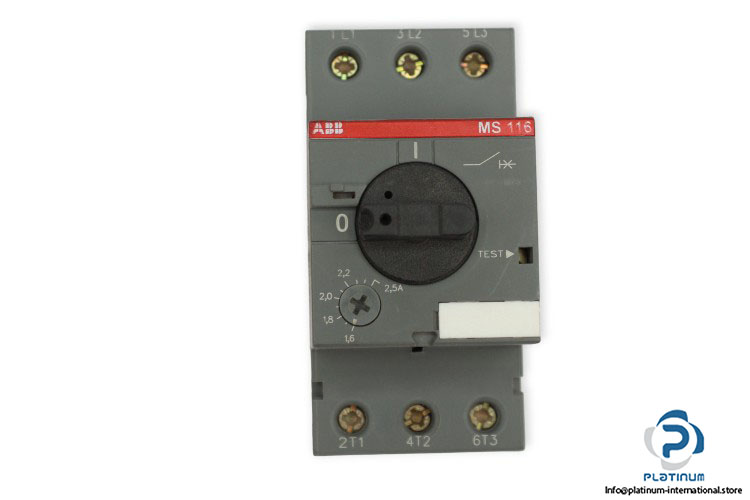

ABB MS116-2.5 Manual Motor Starter
Manufacturer: ABB
Type: Manual Motor Starter
Model: MS11625
Alternative Model: 1SAM250000R1007
Rated Operational Voltage: 600 V AC
Rated Operational Current: 2.5 A
Rated Insulation Voltage: 690 V
Frequency: 50 … 60 Hz
Sitting Range: 1.6 … 2.5 A
Rated Impulse Voltage (Uimp): 6 kV
Power AC-3: 0.75 kW
Rated Service Short-Circuit Breaking Capacity (Ics):
230 / 400 V AC: 50 kA
440 / 500 V AC: 10 kA
690 V AC: 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
230 / 400 V AC: 75 kA
440 V AC: 30 kA
500 V AC: 20 kA
690 V AC: 10 kA
Number of Poles: 3-Pole
Actuator Type: Rotary Handle (ON / OFF)
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 90 x 45 x 85.6 mm
