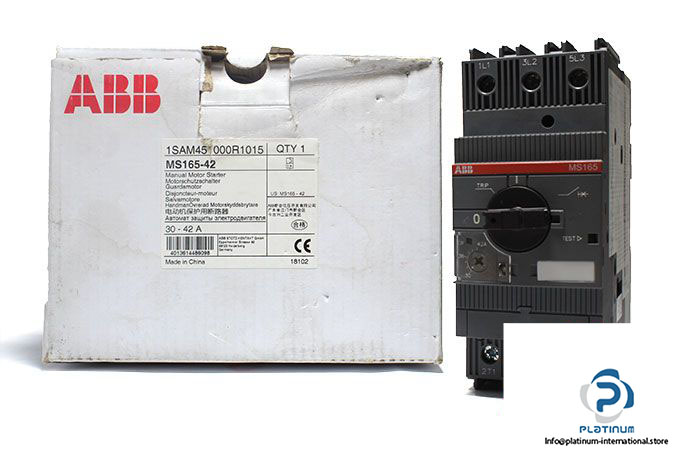

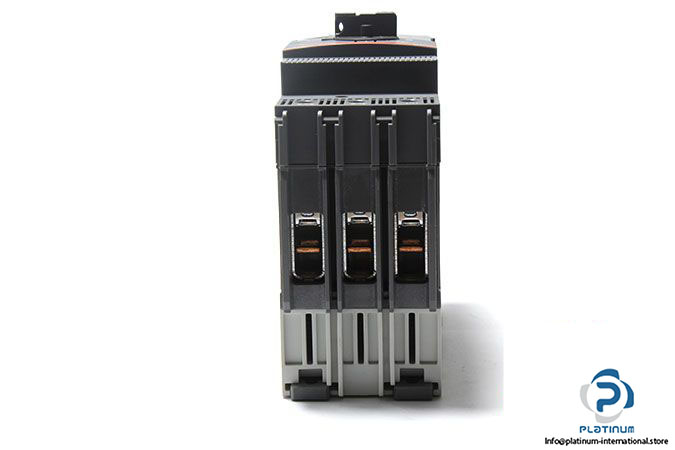

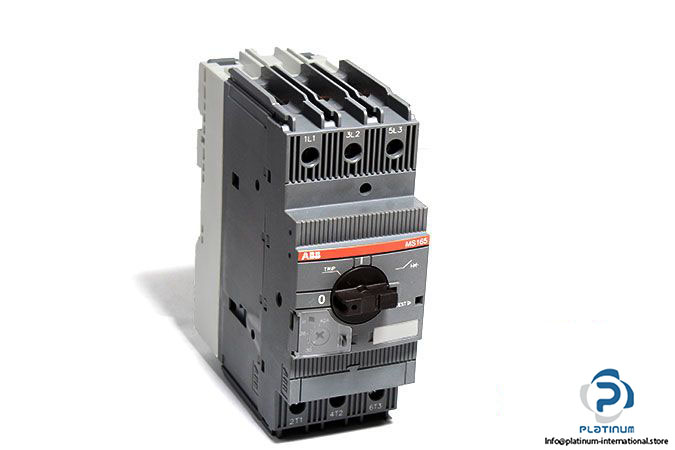

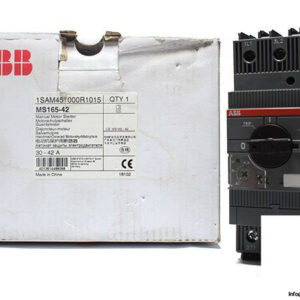

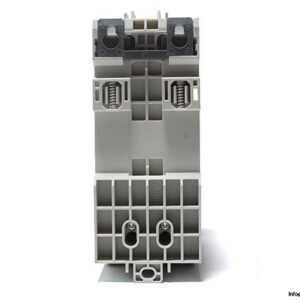

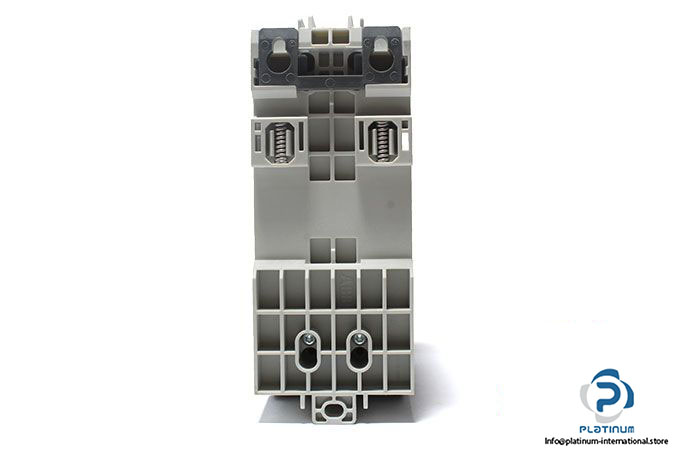

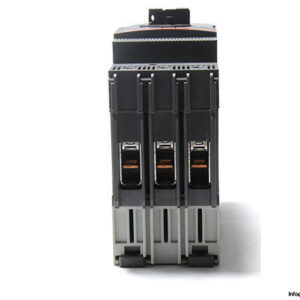

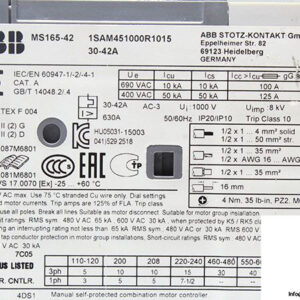

ABB MS165-42 Manual Motor Starter

Manufacturer: ABB

Type: Manual Motor Starter

Model: MS165-42

Product ID: 1SAM451000R1015

Number of Poles: 3

Rated Current (I_e): 42 A

Setting Range: 30 … 42 A

Rated Power: 22 kW

Service Frequency: 50/60 Hz

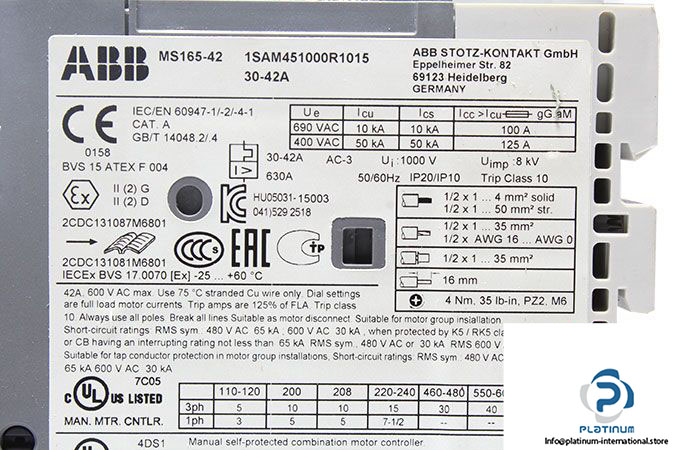

Rated Voltage: Main Circuit 690 V AC / 250 V DC

Breaking Capacity (I_cu): 50 KA (400V AC) / 10 KA (690V AC)

Short-Circuit Current Setting (I_i): 630 A

Actuator Type: Rotary Handle

Terminal Type: Screw Terminals

Dimensions ( W x D x H): 55 x 122.1 x 142.65 mm

Protection Class: Housing IP20

……………………………..Main Circuit Terminals IP10

Operating Temperature: -25 … 60 °C

Weight:  approx. 1 kg
