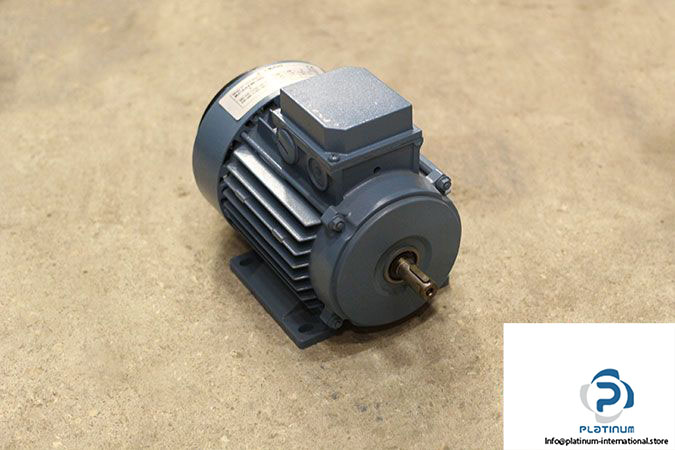

ABB MU71A14-8 MK129039-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU71A14-8MK129039-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 640 min^-1

Rated Power: 0.09 kW

Power Factor: 0.58

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 770 min^-1

Rated Power: 0.11 kW

Power Factor: 0.60

Rated Current (Star): 0.60 A

Rated Current (Delta): 1.05 A

Shaft Diameter: 14 mm

Motor Size: 71A

Number of Poles: 8

Protection Class: IP55

Insulation Class: F

Weight: 5.23 kg
