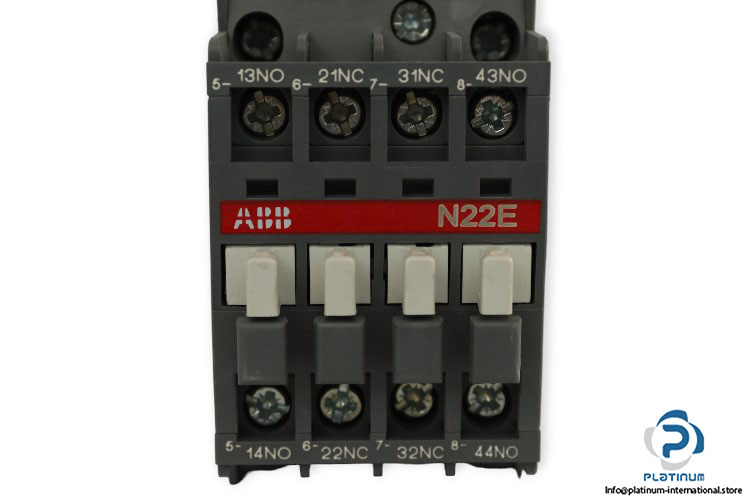

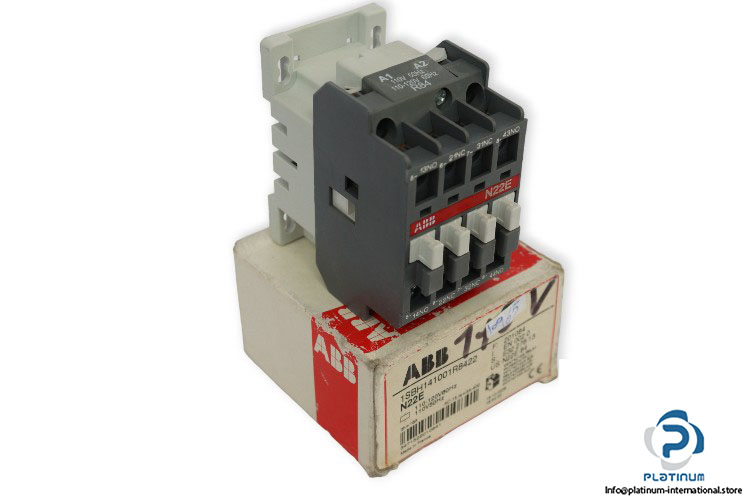

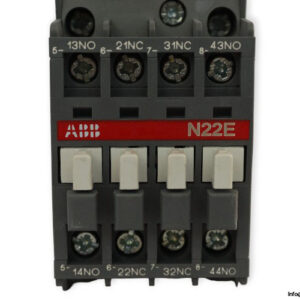

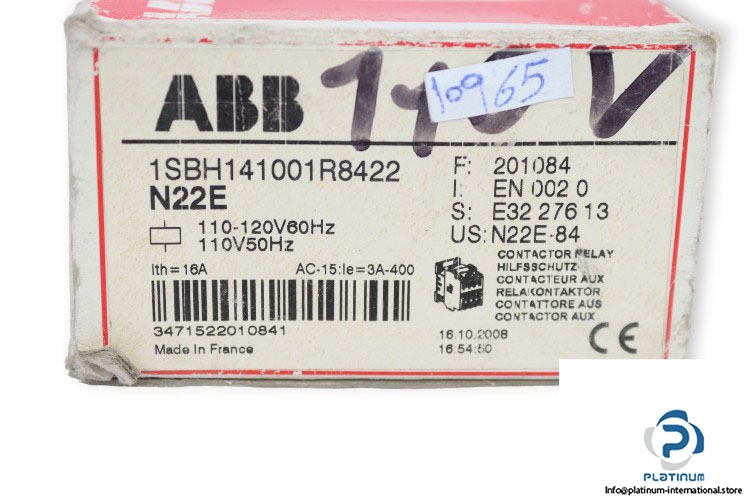

ABB N22E Contactor Relay

Manufacture: Abb
Type: Contactor Relay
Model: N22E

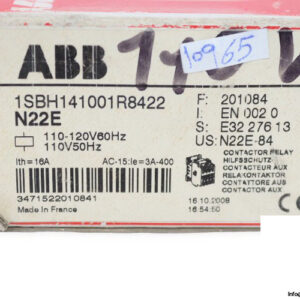

Product ID: 1SBH141001R8422

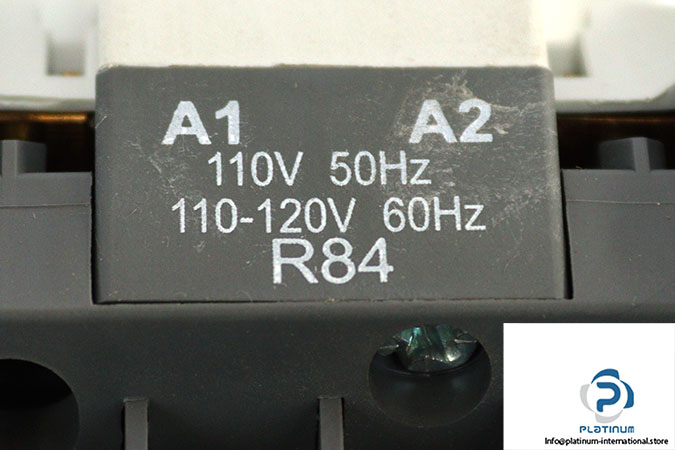

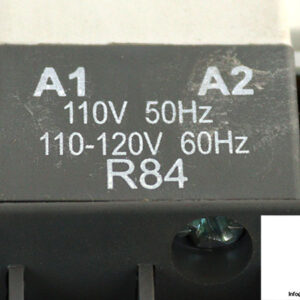

Control Supply Voltage: 110 V (50 Hz),110 … 120 V (60 Hz)
Rated Current AC-15 (Ie): 3 A@400 V
Thermal current (Ith): 16 A
Auxiliary Contacts: 2 Normally closed,2 Normally open

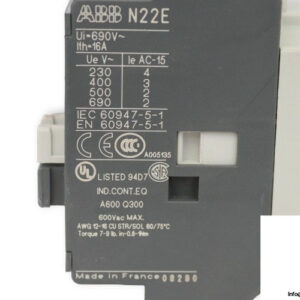

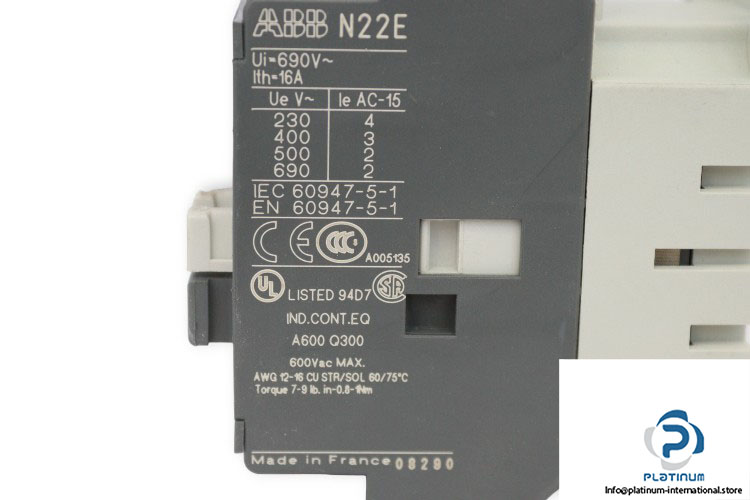

Rated Insulation Voltage Ui: 690 V AC
Rated Impulse Withstand Voltage (Uimp): 8 Kv
Terminal Type: Screw Terminals
Protection Class IP: IP20
Ambient air temperature Near Contactor for Operation in Free Air: -40 … 70°C
Dimensions (W x D x H): 44 x 74 x 74 mm
