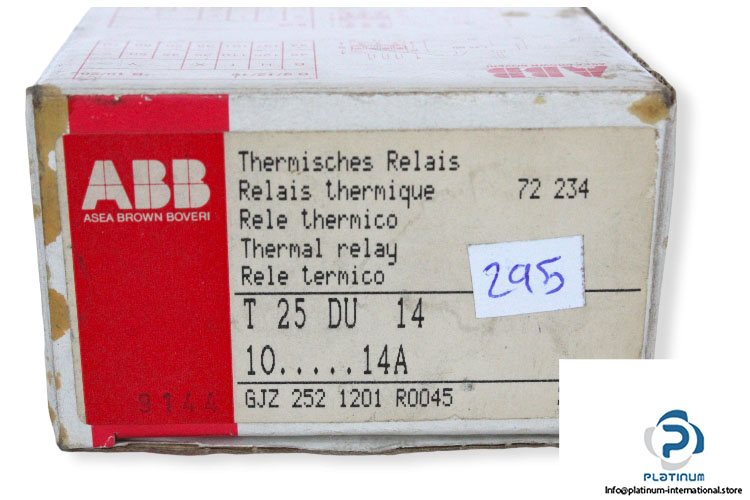

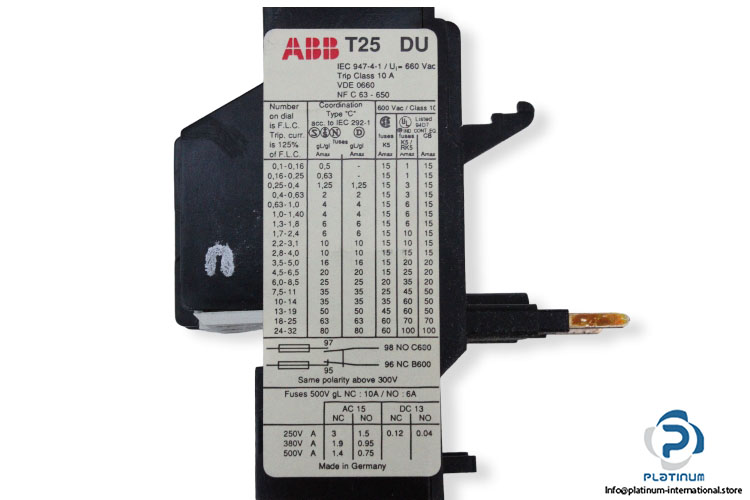

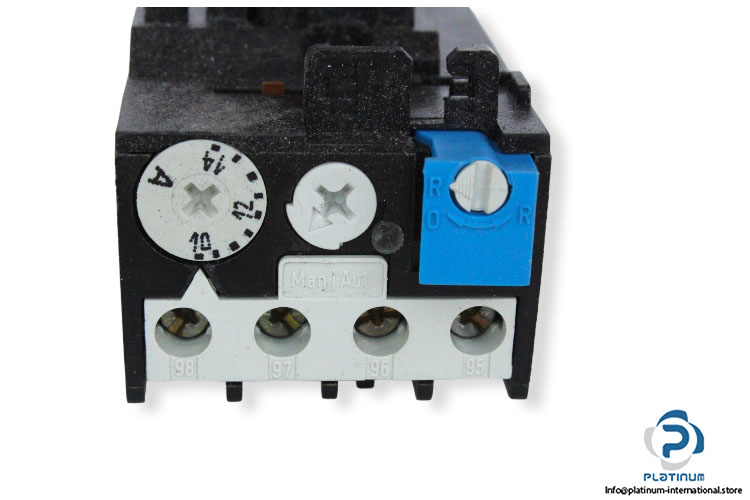

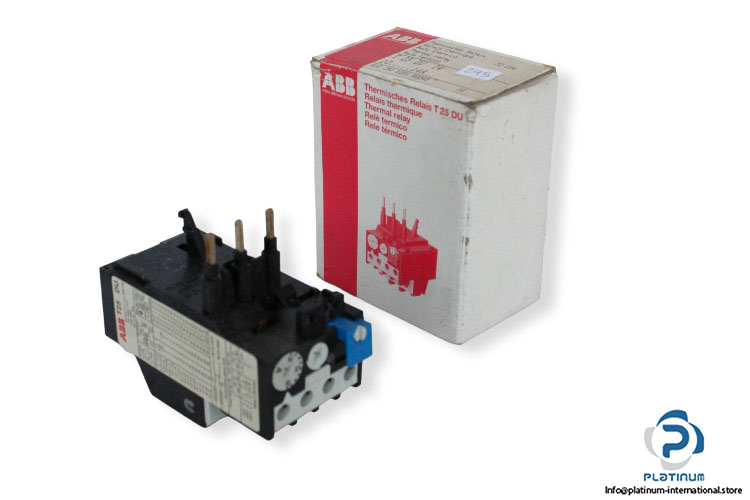

ABB T25 UD 14 Thermal Overload Relay

Manufacturer: Abb

Type: Thermal Overload Relay

Model: T25 UD 14

Rated Insulation Voltage (Ui): 660 V AC

Current setting range: 10 … 14 A

Rated Operational Current (I_e): 14 A

Number of Poles: 3 Poles

Auxiliary Contacts: 1 Normally open + 1 Normally closed

Conventional Free-air Thermal Current (I_th): Auxiliary Circuit NC 10 A, Auxiliary Circuit NO 6 A

Operating Temperature: -25 … +55 °C

Degree of Protection: Housing IP20, Main Circuit Terminals IP10

Dimensions: 44 x 80 x 94 mm
