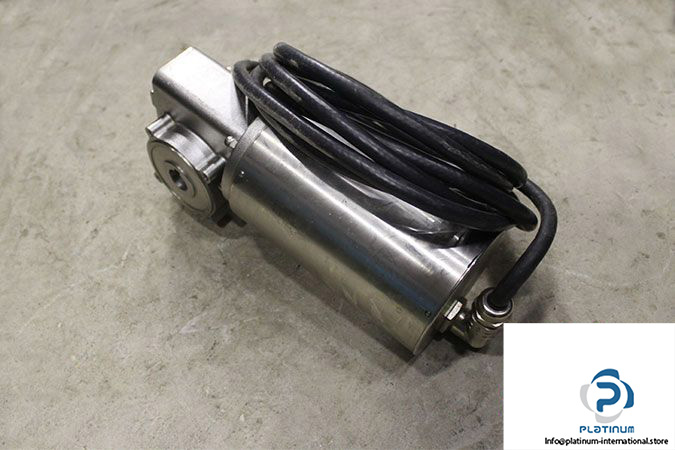

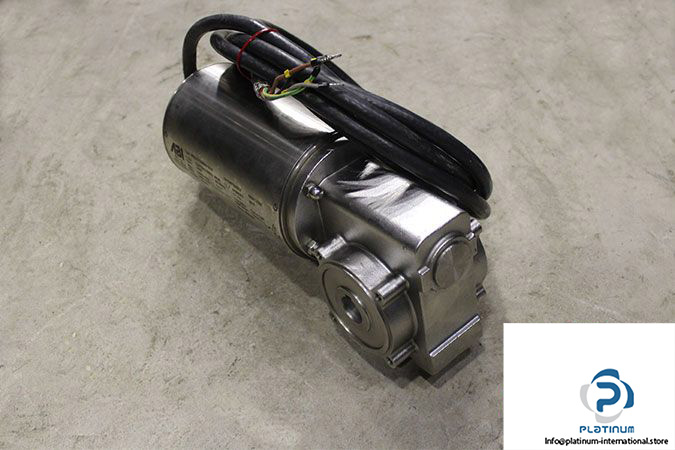

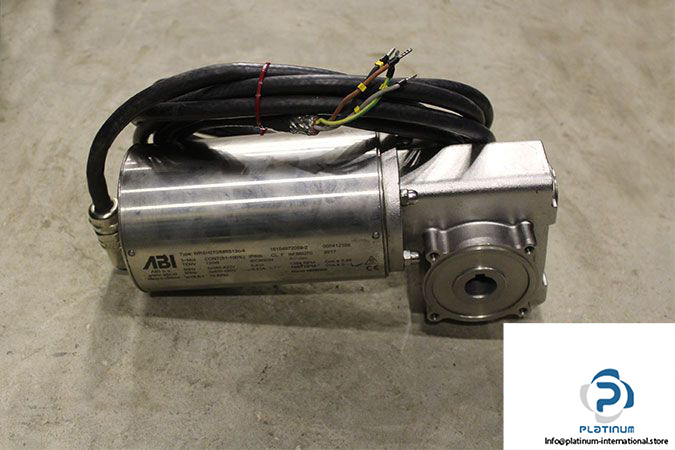

ABI WRSH270/MRS12C-4 Worm Gear Motor
Manufacturer: Abi
Type: Stainless Steel Worm Gear Motor

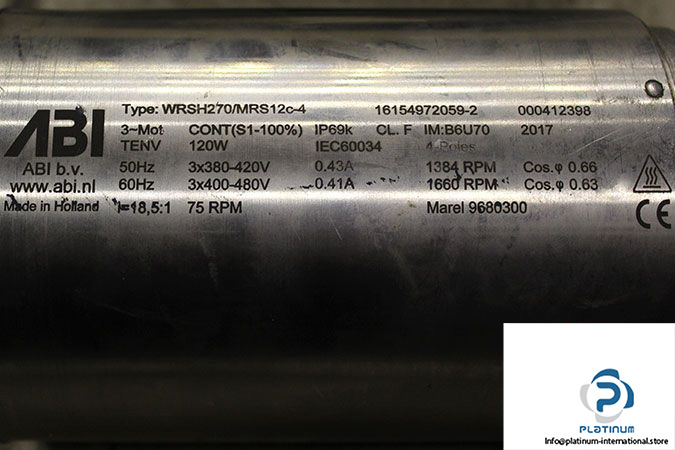

Model: WRSH270/MRS12c-4
Speed 50Hz [r/min]: 1384 / 74
Speed 60Hz [r/min]: 1660 / 89
Total Ratio [I]: 18.5
Rated Torque [Nm]: 20
Hollow Shaft: 20 mm
Motor Power [W]: 120
Number of Pole: 4
Range Voltage 50Hz [V]: 280-420
Rated Current [A]: 0.43
Range Voltage 60Hz [V]: 400-480
Rated Current [A]: 0.41
Power Factor 50Hz: 0,66
Power Factor 60Hz: 0,63
Thermal Class: F
Duty: Cont(S1-100%)
Protection Class [IP]: 69k
Mounting Position [IM]: B6
Weight [kg]: 11.85
