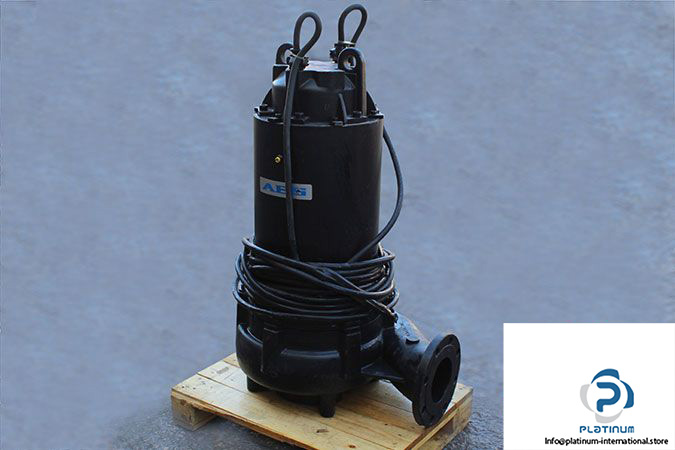

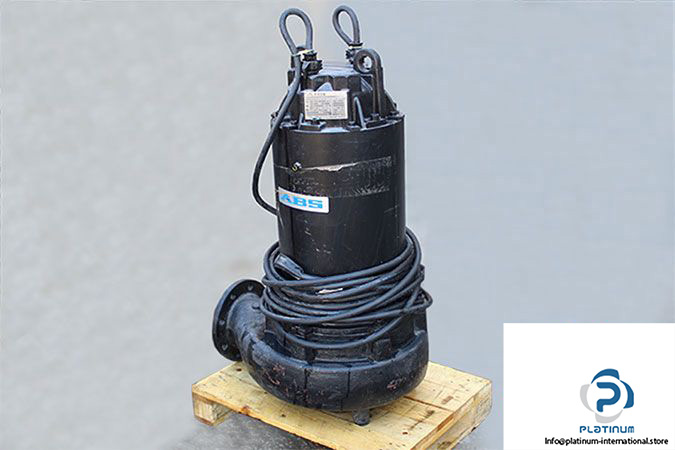

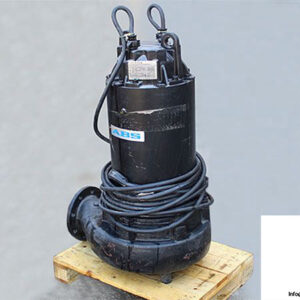

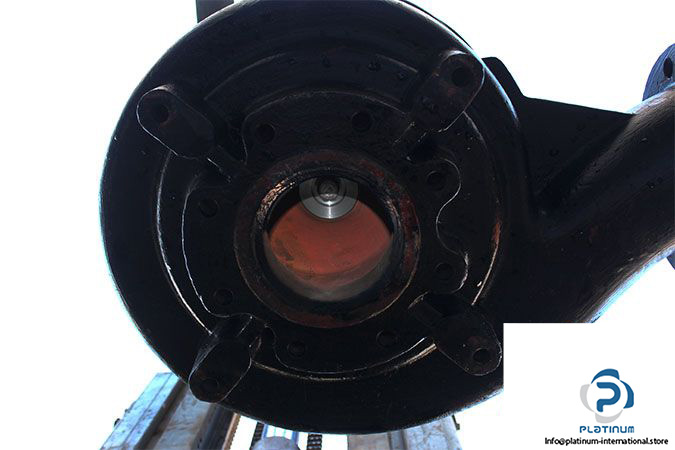

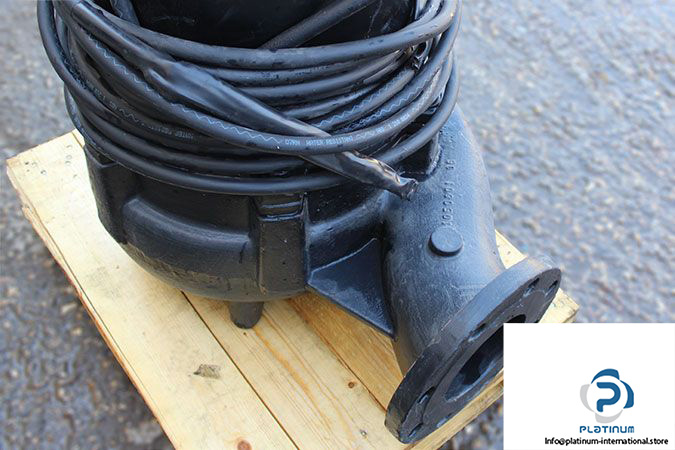

ABS AFB 1526.2 M 220/4-42 Submersible Pump

Manufacturer: SULZER ABS PUMP CENTER AG

Type: Submersible Pump

Model: AFB 1526.2 M 220/4-42

Art. No: 642531

Features

• High-Efficiency Hydraulic Design Using Contrablock or Vortex Impellers.
• Available as Standard AFP Or Higher Specification AFP(K).
• AFP(K) Has Class H Insulation and Double Mechanical Seals as Standard, With Options of Seal Cartridge and Closed Loop Cooling System.
• Automatic Seal and Temperature Monitoring.
• Available as Explosion-Proof.
• Designed for Fixed or Transportable Installation.

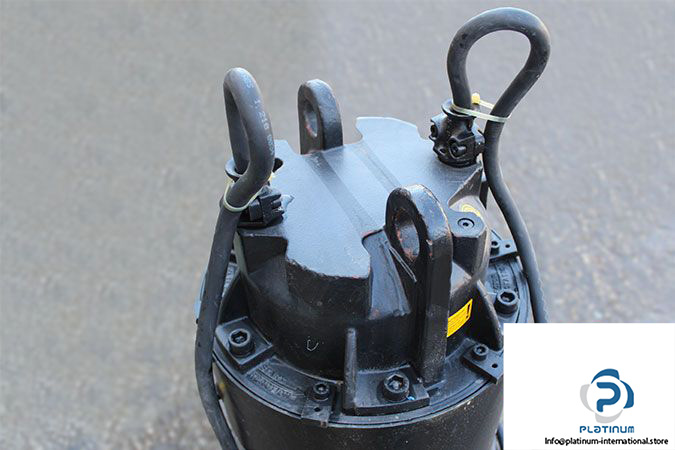

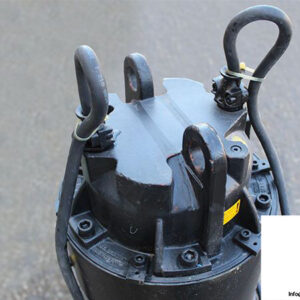

• For Lifting, AFP Has Cast Eyelet, AFP(K) Has Stainless Steel Lifting Hoop.

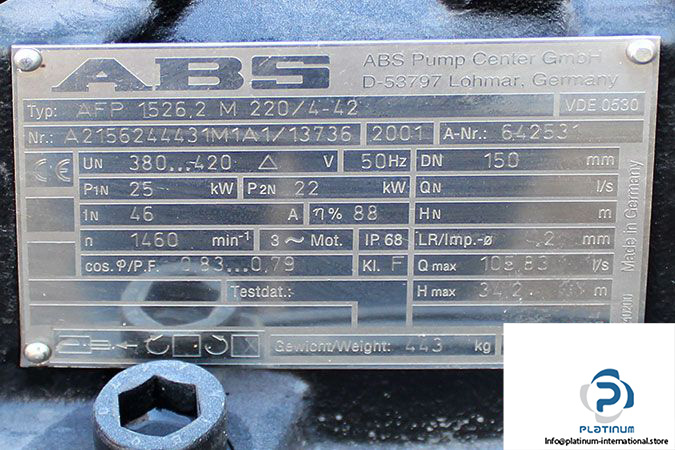

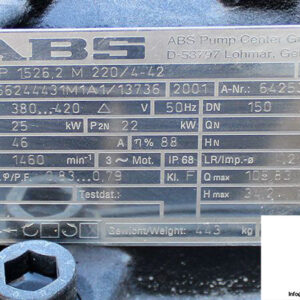

Rated Voltage (delta): 380…420 V

Rated Current: 46 A

Consumption Power: 25 kW

Output Power: 22 kW

Frequency: 50 Hz

Rotation Speed: 1460 min^-1

Pumping Quantity: 105.83 l/s

Pumping Height: 34.2 m

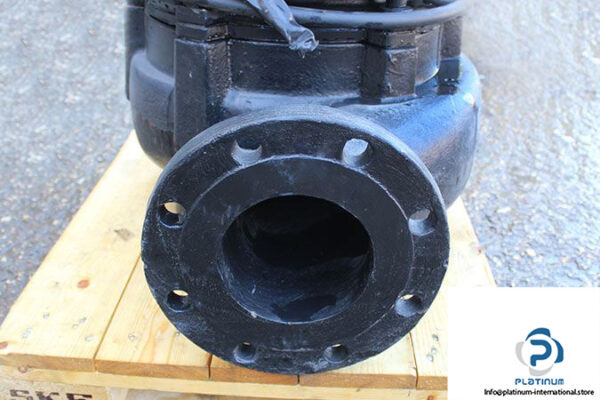

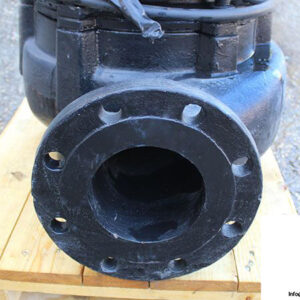

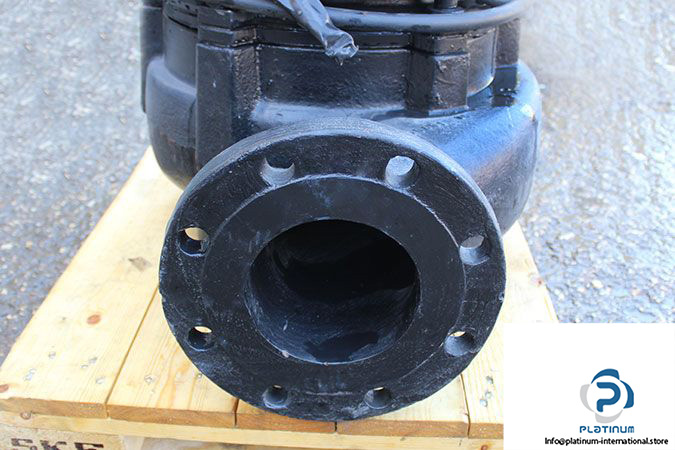

Discharge Size: 220 cm

Max. Immersion Depth: 20 m

Normal Depth: 150 mm

Max. Fluid Temperature: 40 °C

Material

• Motor Housing: Cast Iron EN-GJL-250
• Motor Shaft: Stainless Steel 1.4021 (AISI 420)
• Volute: Cast Iron EN-GJL-250
• Impeller: Cast Iron EN-GJL-250
• Bottom Plate: Cast Iron EN-GJL-250
• Fasteners: Stainless Steel 1.4401 (AISI 316)

Efficiency: 88 η%

Power Factor: 0.83…0.79 [cos.φ/P.F.]

Protection Class: IP68

Insulation Class: F

Weight: 443 kg
