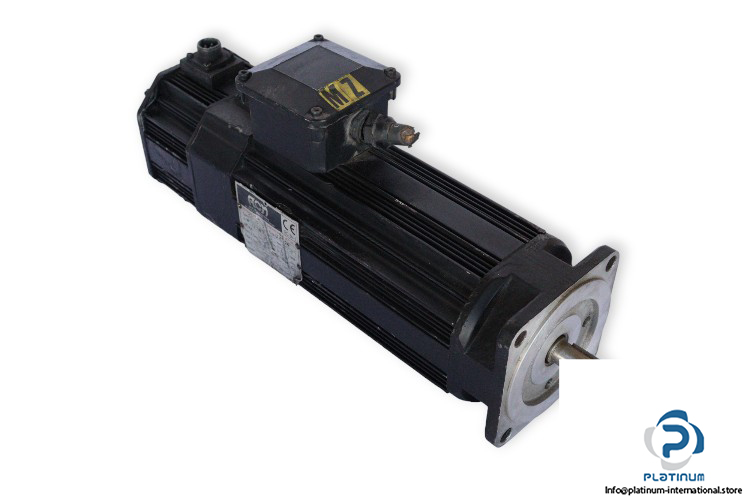

ACM BRL906/5 Synchronous Motor

Manufacturer: ACM
Type: Synchronous Motor
Model: BRL906/5

N.: 17487
Motor Type: 906
SIZE: 5
Peak torque: 24 Nm
Stall torque: 8 Nm
Nominal speed: 3000
Stall current: 6.6 A
Peak current: 19.7 A
Rotor inertia: 0.7 gm²
Poles N°: 6
Line resistance: 4 Ω
B.EM.F: 300 Vrms
Duty: S1
Shaft diameter: 19
Protection Class: IP54
