Aeco SC30SP-AE25 No/Nc Capacitive Sensor
Used
In stock1 unitReady to ship
Capacitive Sensor
AECO SC30SP-AE25 capacitive sensor with adjustable sensing distance up to 25 mm, programmable NO/NC function, AC output, and durable IP67 housing for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

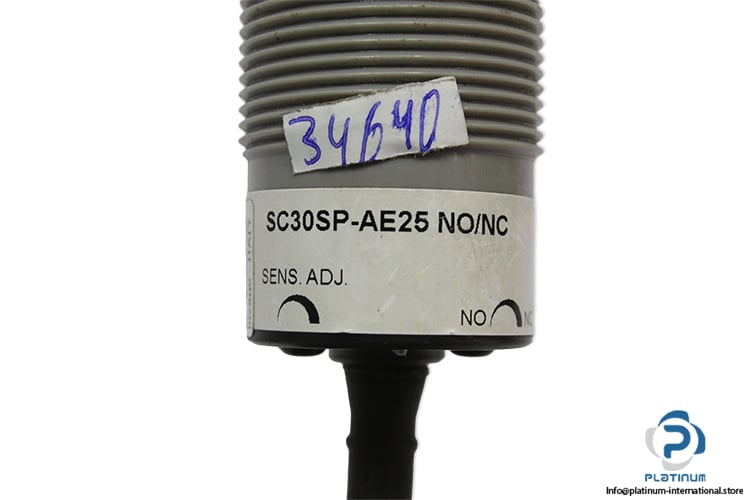

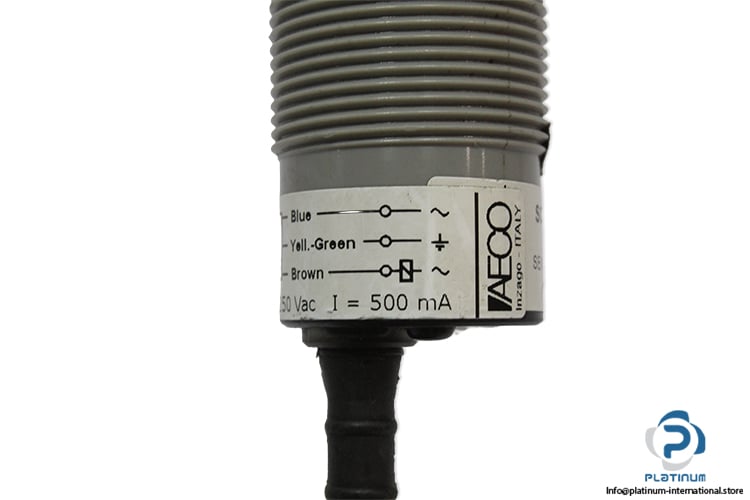

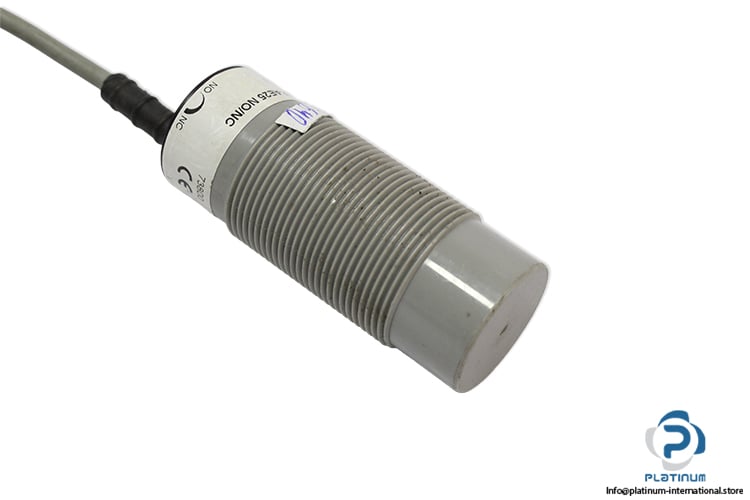

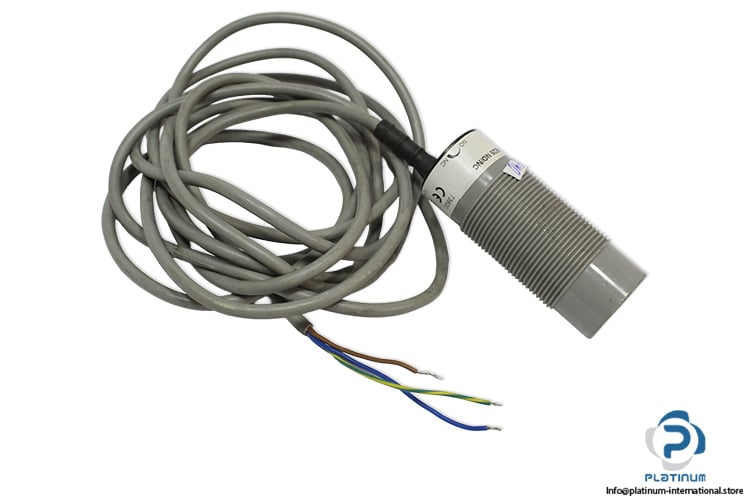

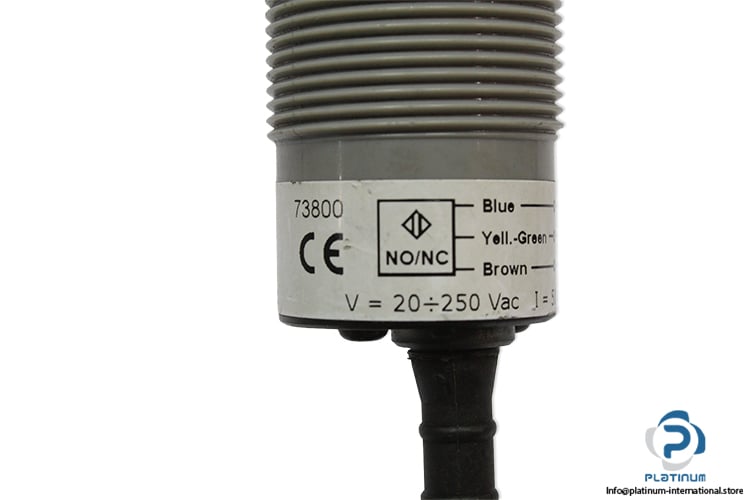

AECO SC30SP-AE25 Capacitive Sensor
The AECO SC30SP-AE25 is a capacitive proximity sensor designed for reliable detection of materials in industrial automation systems. It features adjustable sensing distance, programmable NO/NC function, and robust IP67 protection for dependable operation in demanding environments.
Manufacturer: AECO
Type: Capacitive Sensor
Model: SC30SP-AE25 NO/NC
| Working Voltage | 20 to 250 Vac |
| Output Type | AC |
| Function | NO/NC Programmable |
| Actuation Type | Instantaneous |
| Sensing Distance | 0 ÷ 25 mm (Adjustable) |
| Hysteresis (%Sn) | ‰¤ 20 |
| Max Switching Frequency | 10 Hz |
| Repeatability (%Sn) | < 10 |
| Max Output Current | 500 mA |
| Min Output Current | 10 mA (Minimum Current For Release) |
| Max Peak Current (20 msec) | 1.5 A |
| Residual Current | ‰¤ 1 mA |
| Voltage Drop | < 6 V |
| LED Indicator | Yellow |
| Shielding | Not Embeddable |
| Diameter | M30 x 1.5 |
| Length | 100 mm |
| Housing Material | Plastic |

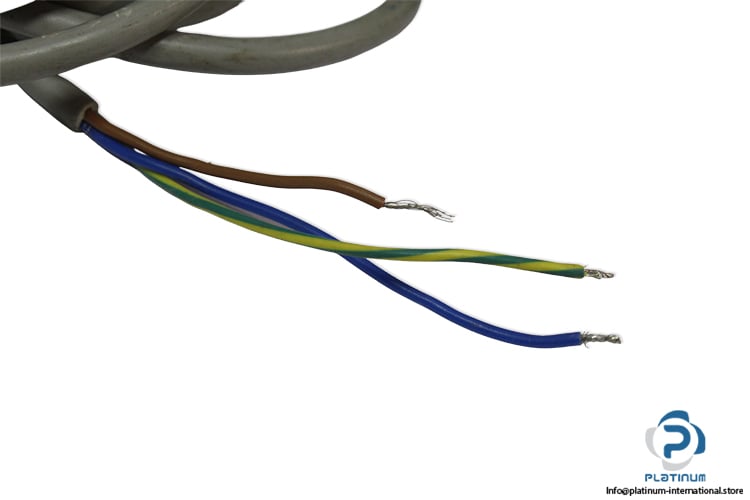

| Connection Type | Cable 3 m “ 3 Wire |
| Cable Type | 3 x 0.35 PVC |
| Temperature Limits | -20 ÷ +70 °C |
| IP Rating | IP67 |
