Aeco SC30M-A20 No/Nc K Capacitive Sensor
New
In stock7 unitsReady to ship
Capacitive Sensor
Industrial AECO capacitive sensor with adjustable sensing distance up to 20 mm, programmable NO/NC output, and wide 20“250 VAC/DC operating voltage for automation and level detection systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
AECO SC30M-A20 NO/NC K Capacitive Sensor

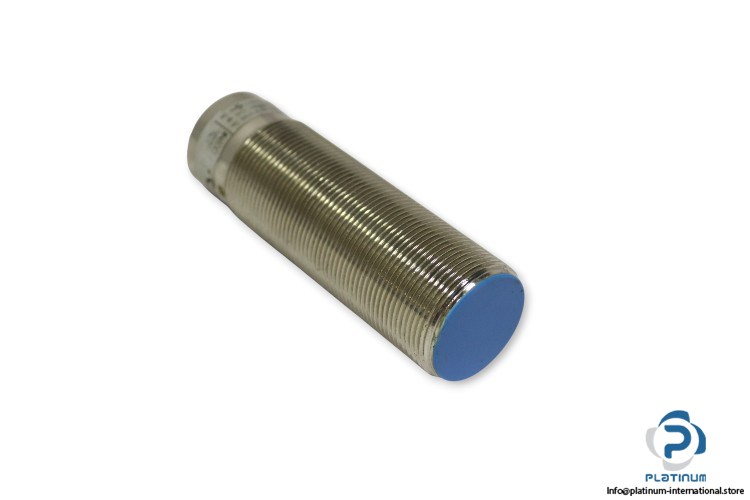

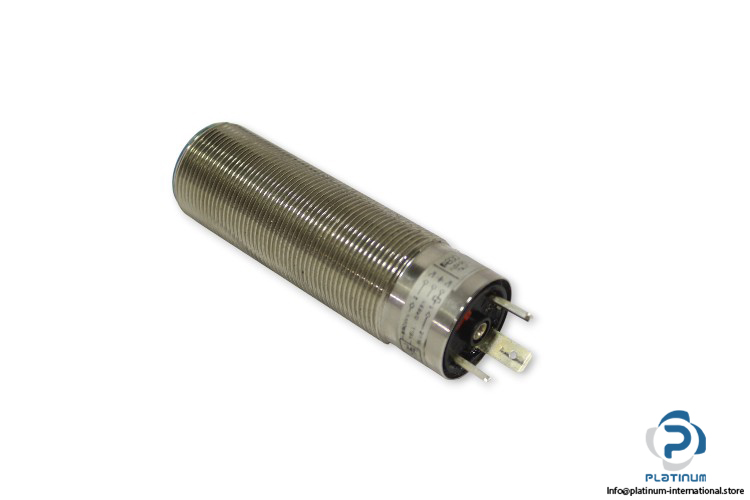

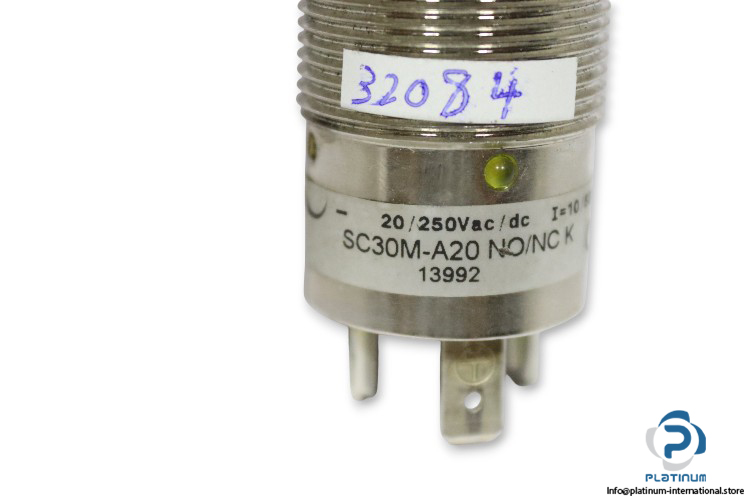

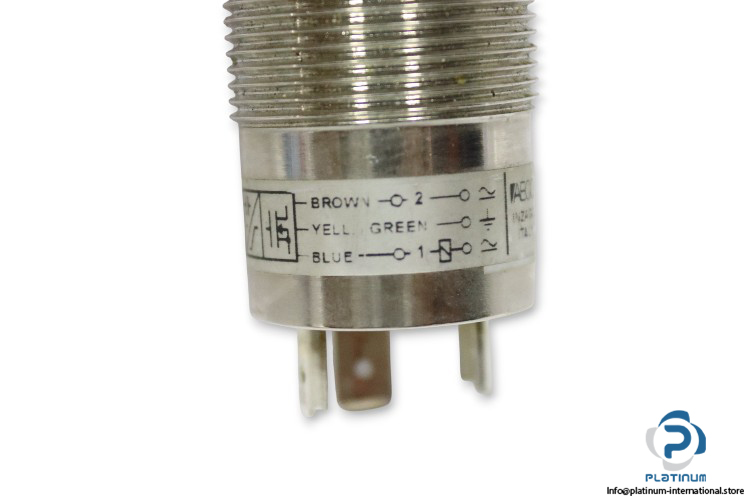

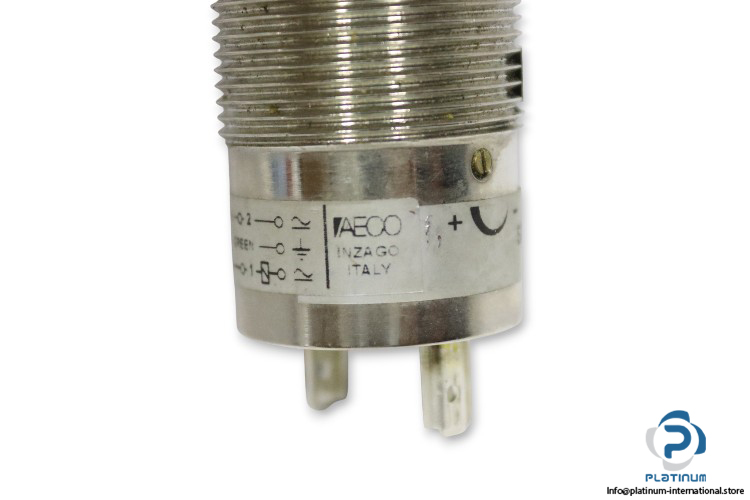

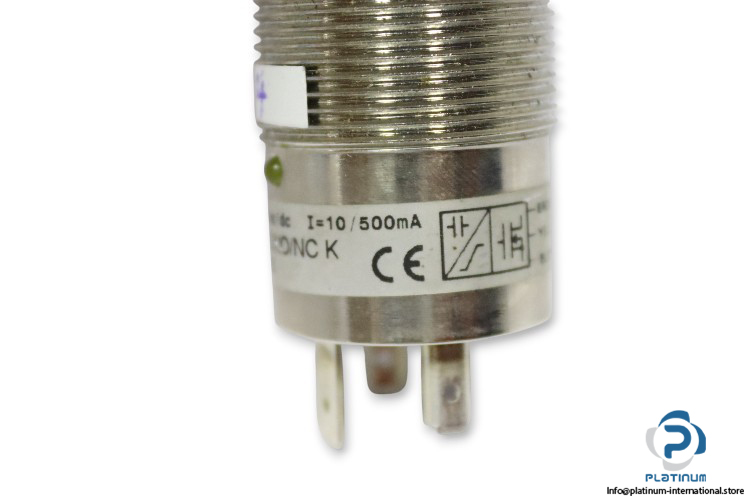

The AECO SC30M-A20 NO/NC K is an industrial capacitive proximity sensor designed for reliable detection of solid, liquid, and granular materials. It features adjustable sensing distance and programmable NO/NC output, making it suitable for automation, level detection, and object sensing applications.
Manufacturer: AECO
Type: Capacitive Sensor
Model: SC30M-A20 NO/NC K
Part Number: 13992
| Working Voltage | 20 to 250 VAC/DC |
| Output Type | AC/DC |
| Function | NO or NC Programmable |
| Actuation Type | Instantaneous |
| Sensing Distance | 0 to 20 mm Adjustable |
| Hysteresis | 20% Sn |
| Maximum Switching Frequency | 10 Hz |
| Repeatability | 10% Sn |
| Maximum Output Current | 500 mA |
| Minimum Output Current | 10 mA |
| Maximum Peak Current (20 ms) | 1.5 A |
| Residual Current | 2 mA |
| Voltage Drop | 6 V |
| Mechanical Characteristics | M30 X 1.5 |
| Housing Material | Nickelled Brass |
| Connection Type | K Plug |
| Temperature Limits | ˆ’20 to +70 °C |
| IP Rating | IP65 |
