Afag LM25/60 Linear Module
Used
In stock1 unitReady to ship
linear module
The AFAG Linear Module LM 25/60 (Ref No. 204130) provides reliable linear motion with a 25 mm cylinder, 60 mm stroke, and 295 N piston force for compressed air applications.2529560AirCompressedconnectionCylinderExtendForceG1/8IndustrialLinearmmModuleMotionNPistonPneumaticStrokeSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
AFAG LINEAR MODULE

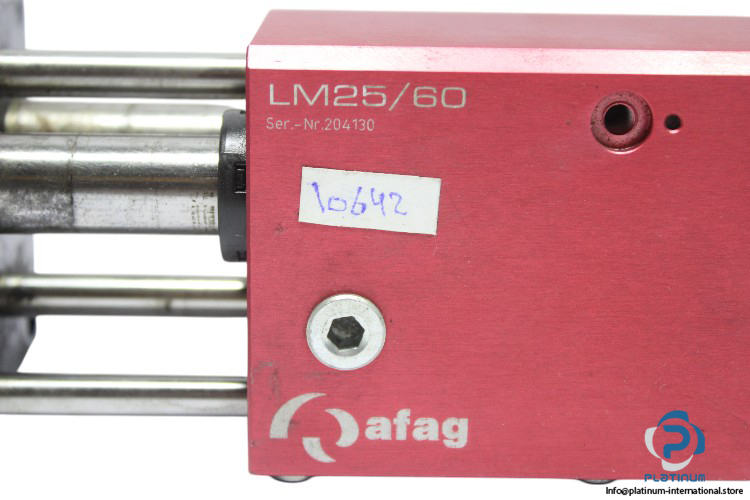

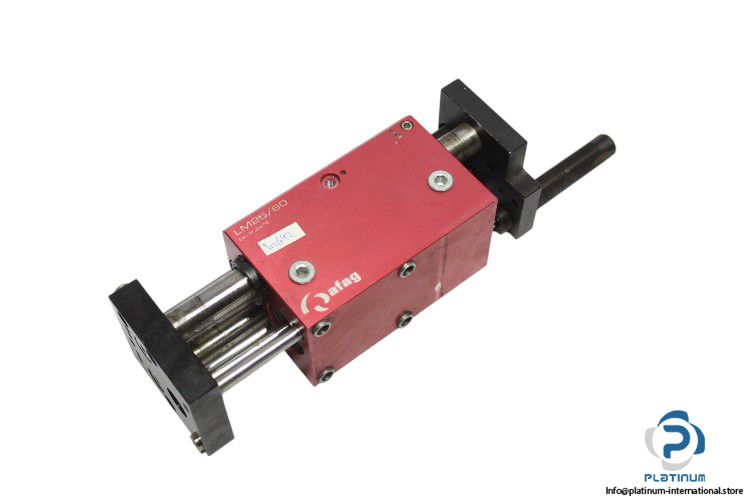

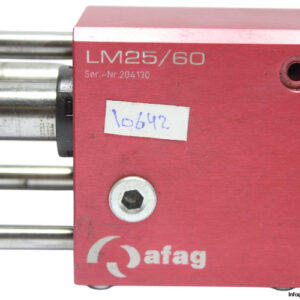

The AFAG Linear Module (Model: LM 25/60, Ref No.: 204130) is designed for precise linear motion in industrial applications, powered by compressed air. With a cylinder diameter of 25 mm and a stroke length of 60 mm, this module is ideal for applications requiring accurate positioning and reliable force output.
Manufacturer: AFAG
Type: Linear Module
Model: LM 25/60
Ref No.: 204130
Technical Specifications
- Fluid: Compressed Air
- Cylinder Diameter: 25 mm
- Stroke: 60 mm
- Fastening Grid: 48 x 48 mm
- Working Pressure: 6 +/- 2 bar
- Pneumatic Connection: G1/8
- Extend Piston Force: 295 N
- Ambient Temperature Range: 0 to 50°C
