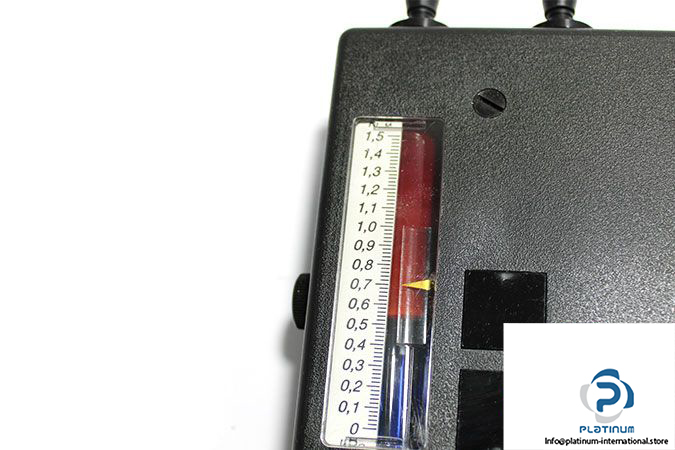

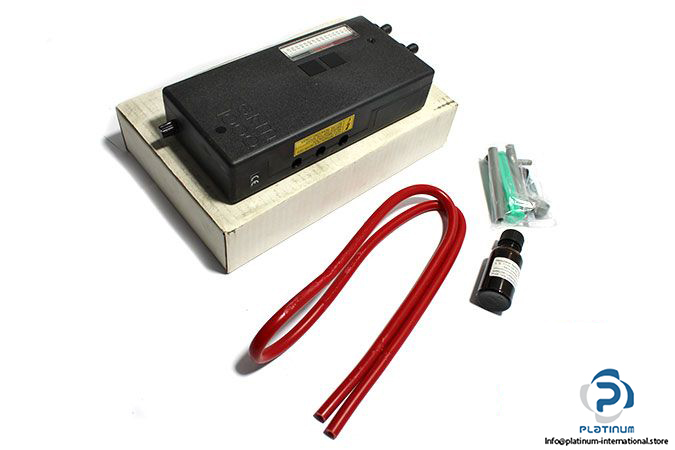

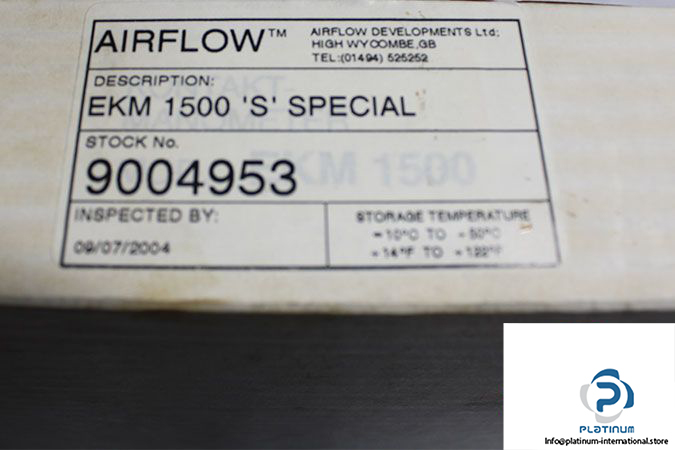

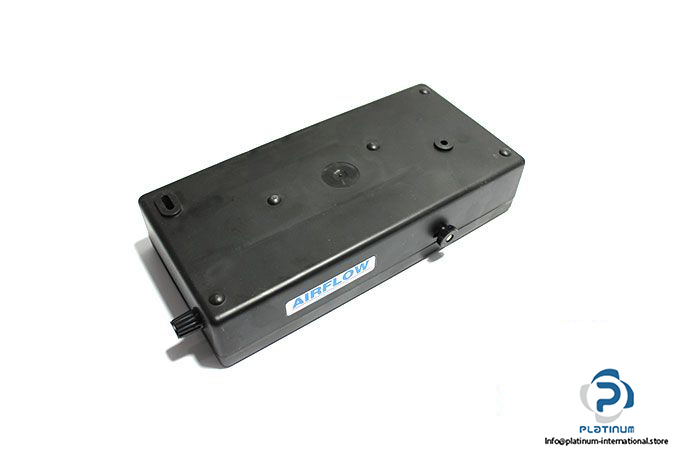

Airflow EKM-1500 S Electric Contact Pressure Gauge
Manufacturer: AIRFLOW
Type: Electric Contact Pressure Gauge
Model: EKM-1500 S
Measuring and switching range: 0-1500 Pa
Repeatability: 1.5Pa
Reset differential: 45 Pa
sealing liquid s.G.: 1.114
Overpressure safety: 1.5 bar
Connection voltage: 230 V, 50 Hz or 115 V, 50 Hz or 24 V AC or 24 V DC
Cable diameter max.: 10 mm
Switching capacity max.: 5 A
power consumption
in operating condition approx.: 4W
Dimensions in mm: approx.: 243 x 102 x 44
Weight: 400 g
