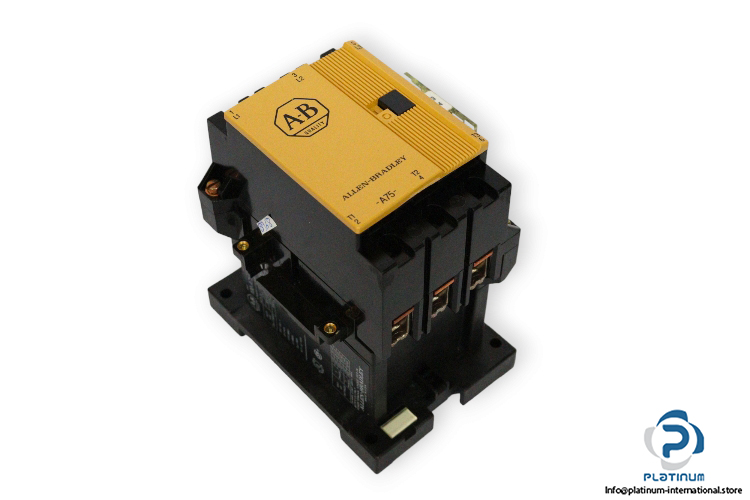

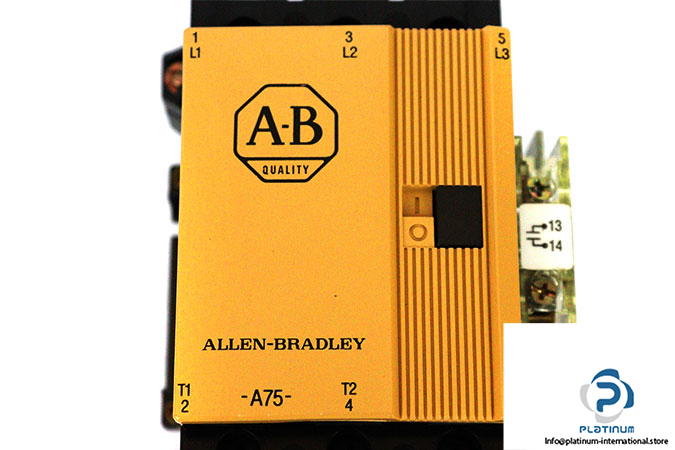

Allen-Bradley 100-A75N-3 Contactor

Manufacture: Allen-Bradley
Type: Non-Reversing Contactor

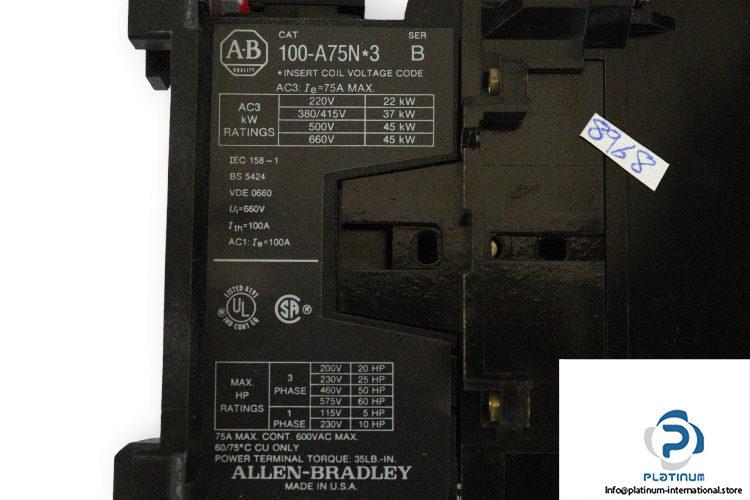

Model: 100-A75N*3
Contactor code: 195-GA10

Thermal current Ith: 100 A
Insulation voltage Ui: 660 V
Rated current AC-3 Ie: 75 A max.
Power kw rating:
@220 V: 22 Kw
@380/415 V: 37 kW
@500 V: 45 kW
@660 V: 45 kW
Power HP rating:
@200 V-3 phase: 20 HP
@230 V-3 phase: 25 HP
@460 V-3 phase: 50 HP
@575 V-3 phase: 60 HP
@115 V-1 phase: 5 HP
@230 V-1 phase: 10 HP
Rated contact Current AC11: 1.5 A@380/480 V AC
Standard: IEC 158-1 / VDE -660 / BS 5424
Contact: 1 Normally open contact (660 V,10 A max)
