Mitsubishi SD-Q11 Contactor
Used
In stock1 unitReady to ship
Magnetic Contactor
The Mitsubishi SD-Q11 Magnetic Contactor is designed for reliable DC operation, with a 690V rated voltage, 9A rated current, and 4 kW rated capacity for industrial use. Features screw-clamp wiring and IP20 protection class.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

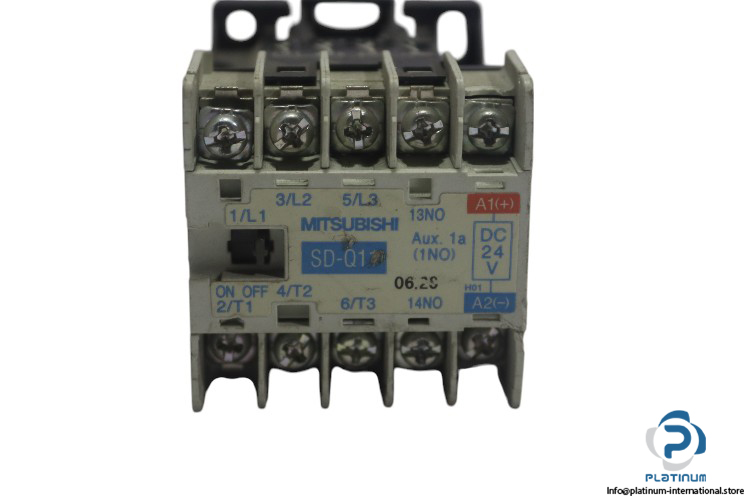

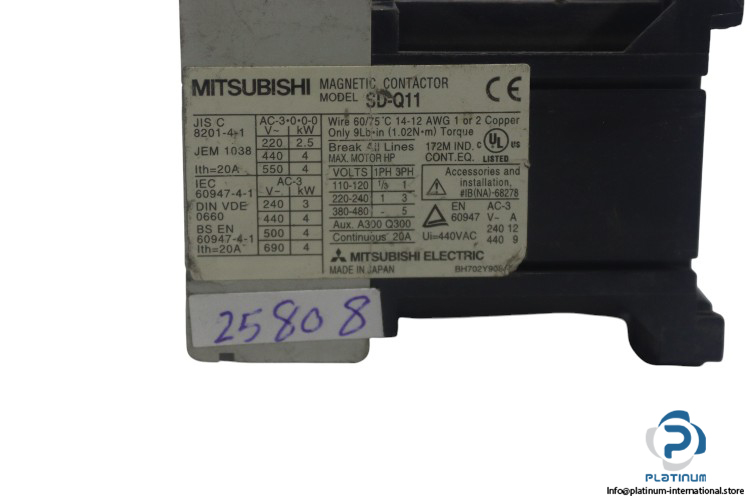

Mitsubishi SD-Q11 Magnetic Contactor
The Mitsubishi SD-Q11 Magnetic Contactor is a high-performance DC-operated contactor designed for reliable power control in industrial applications. This non-reversing contactor is built with a frame size of 11, offering exceptional performance and compliance with international standards for industrial control systems.
Manufacturer: MITSUBISHI
Type: Magnetic Contactor
Model: SD-Q11
Technical Data:
- Type: Non-Reversing, DC Operated
- Frame Size: 11
- Current Type: DC Type
- Coil Voltage (V): 24
- Rated Current (A): 9 (3-Phase AC380-440V)
- Rated Capacity (kW):
- 3-Phase AC220-240V: 3 kW
- 3-Phase AC380-440V: 4 kW
- Rated Voltage (V): 690
- Number of Poles: 3
- Number of Auxiliary Contacts (NO): 1
- Frequency Range (Hz): 50/60
- Min. Ambient Temperature (°C): -10
- Max. Ambient Temperature (°C): 40
- Wiring: Screw-Clamp
- Compliant with Standard(s): EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
- Protection Class: IP20
