Allen-Bradley 100-C09KJ01 A Contactor
New
In stock1 unitReady to ship
39,99$
Contactor
Allen-Bradley 100C09KJ01 compact contactor with 9 A current at AC-3, 400 V and 32 A at AC-1, 400 V. Features 24 V AC control supply, IP20 protection, and screw-type connections for dependable industrial control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

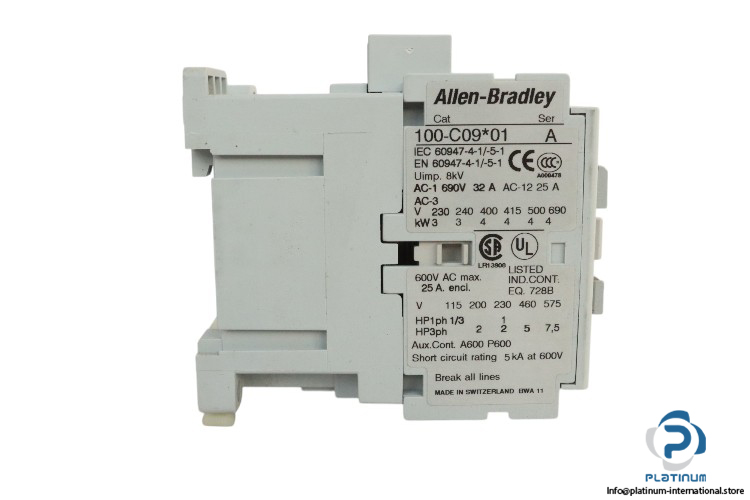

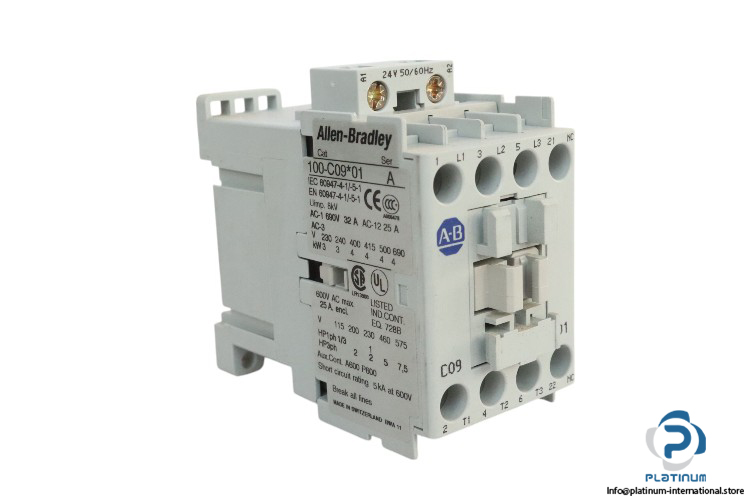

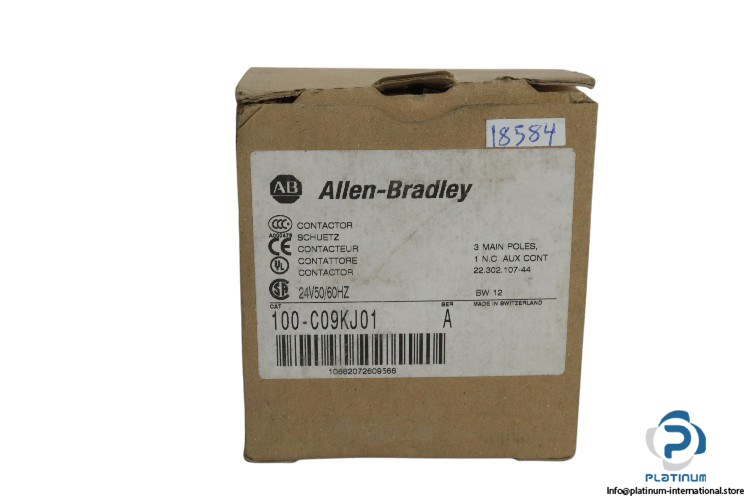

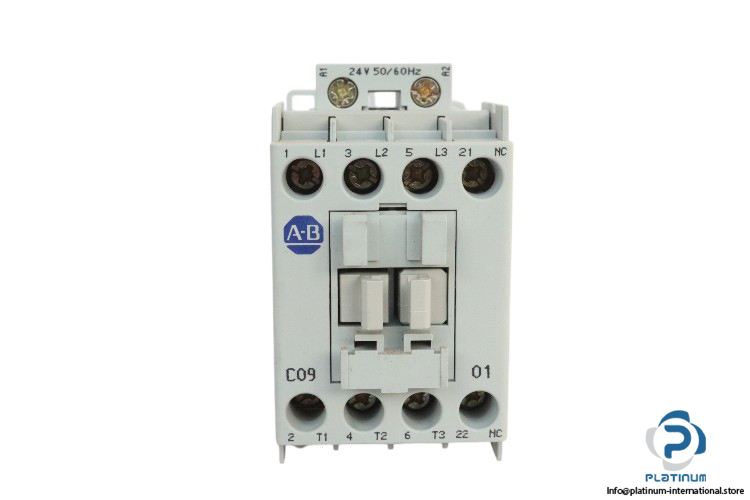

Allen-Bradley 100C09KJ01 Contactor
The Allen-Bradley 100C09KJ01 is a high-quality contactor designed for reliable switching and control in industrial automation systems. With strong current ratings and compact construction, it ensures efficient performance for both AC-3 and AC-4 duty applications.
Manufacturer: Allen-Bradley
Type: Contactor
Model: 100C09KJ01
Series: A
| Rated Operation Current Ie at AC-3, 400 V | 9 A |
| Number of Normally Open Contacts (Main Contact) | 3 |
| Rated Operation Power at AC-3, 400 V | 4 kW |
| Rated Operation Current Ie at AC-1, 400 V | 32 A |
| Max. Rated Operation Voltage Ue AC | 690 V |
| Control Supply Voltage Us at AC 50Hz | 24 V |
| Rated Operation Current Ie at AC-3, 690 V | 5 A |
| Rated Operation Power at AC-3, 690 V | 4 kW |
| Rated Operation Power at AC-4, 400 V | 1.8 kW |
| Rated Operation Current Ie at AC-4, 400 V | 4.3 A |
| Type of Electrical Connection (Main Circuit) | Screw Connection |
| IP Rating | IP20 |
| Dimensions (H x W x D) | 81 x 45 x 86.5 mm |
