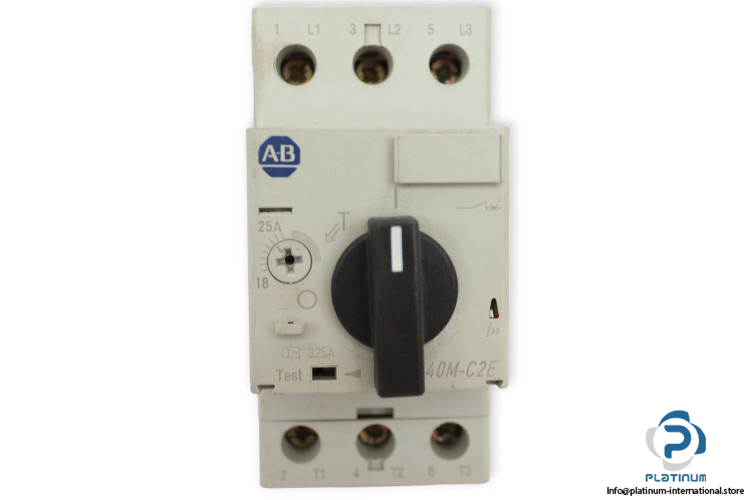

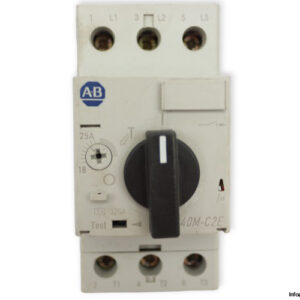

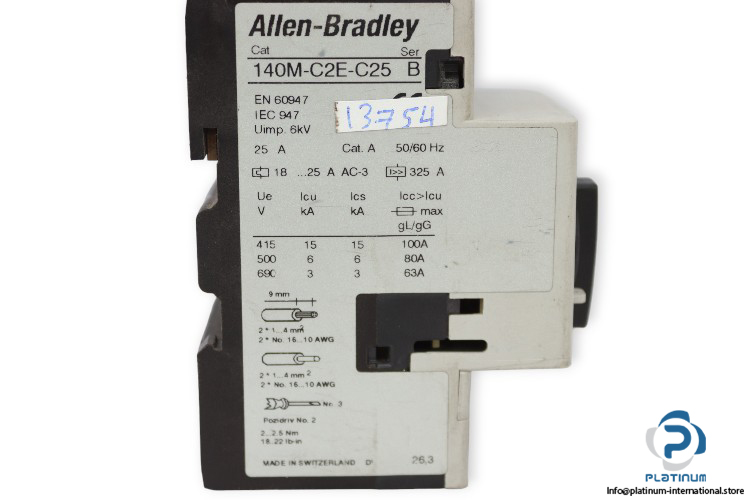

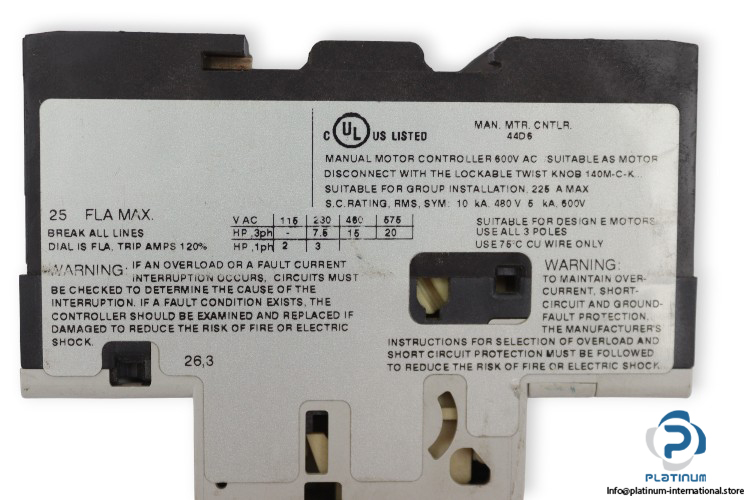

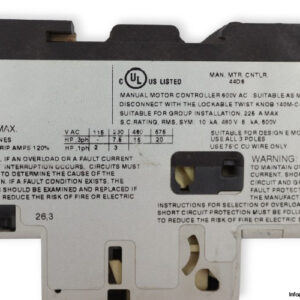

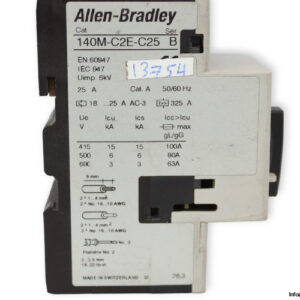

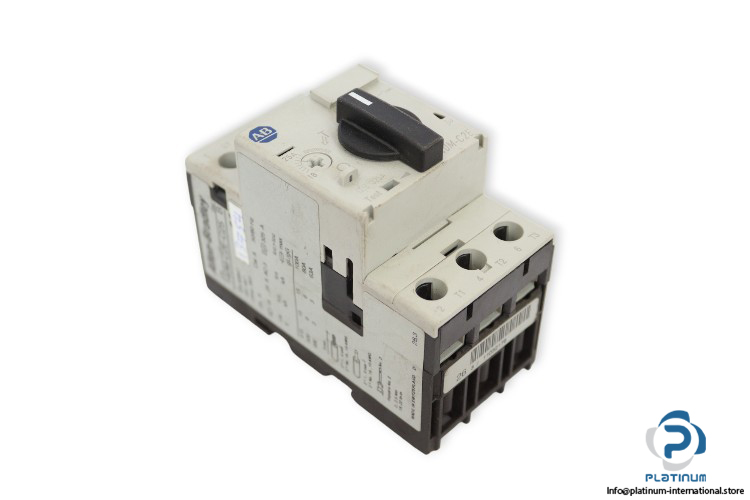

Allen-Bradley 140M-C2E-C25 Motor Protection Circuit Breaker
33,33$
Manufacturer: Allen-Bradley
Type: Motor Protection Circuit Breaker
Model: 140MC2EC25
Series: B
Rated Supply Voltage: 110 V AC, 50 Hz
Rated Supply Current: 18 … 25 A
Power Loss: 6 W
Magnetic Trip Current: 325 A
Rated operation power at AC-3, 400 V: 11 kW
Rated operation power at AC-3, 230 V: 5.5 kW
Rated impulse with stand voltage Uimp: 6 kV
Operating Frequency: 50/60 Hz
Rated Service Breaking Capacity (Ics):
415 V: 15 kA
500 V: 6 kA
690 V: 3 kA
Rated Short Circuit Breaking Capacity (Icu):
415 V: 15 kA
500 V: 6 kA
690 V: 3 kA
Rated Impulse Voltage (Uimp): 6 kV
No. of poles: 3 Poles
Minimum Contactor Size: 100-C30
Type of Electrical Connection: Screw Connection
Standard: EN 60947 , IEC 947
Dimensions: 45 x 74.5 x 90 mm
