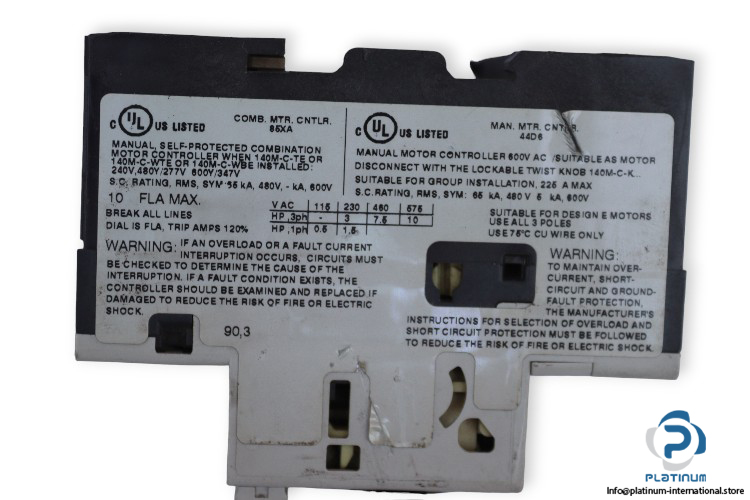

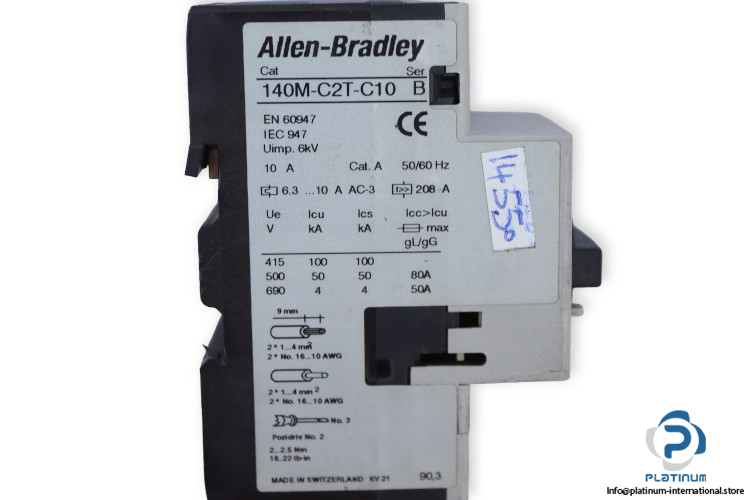

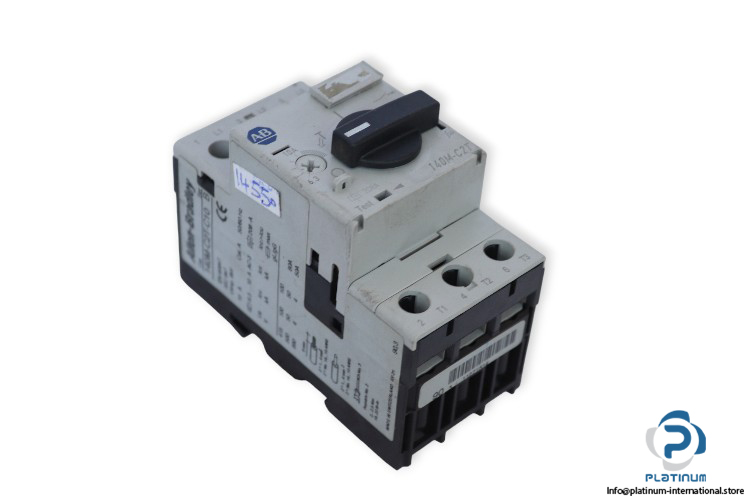

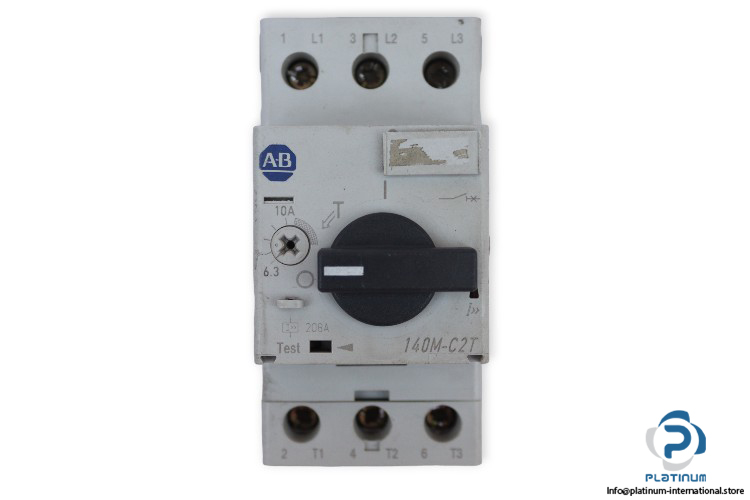

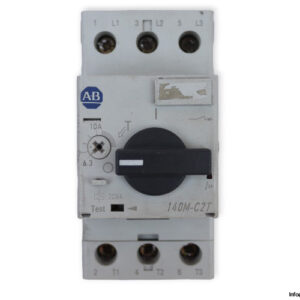

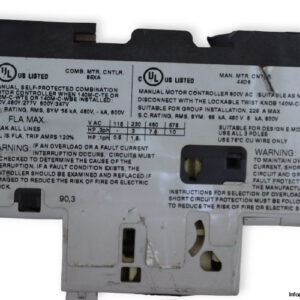

Allen-Bradley 140M-C2T-C10 Motor Protection Circuit Breaker

Manufacturer: ALLEN-BRADLEY
Type: Motor Protection Circuit Breaker
Model: 140MC2TC10

Rated Operating Voltage Max.: 690 V AC
Rated Operational Current (Ie): 10 A
Sitting Range: 6.3 … 10 A
Magnetic Release Current: 208 A
Horse Power AC-3:
230 V: 6 HP
460 V: 7.5 HP
575 V: 10 HP
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Service Short-Circuit Breaking Capacity (Ics):
415 V: 100 kA
500 V: 50 kA
690 V: 4 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
415 V: 100 kA
500 V: 6 kA
690 V: 4 kA
Poles No.: 3-Poles
Type of Electrical Connection: Screw Connection
Dimensions: 90 x 45 x 74.5 mm
