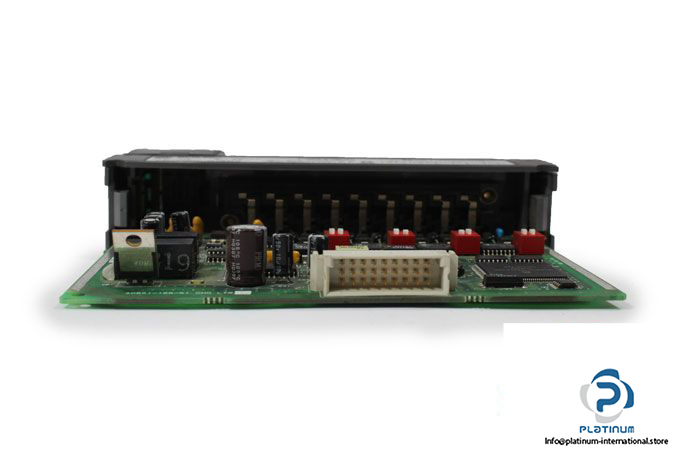

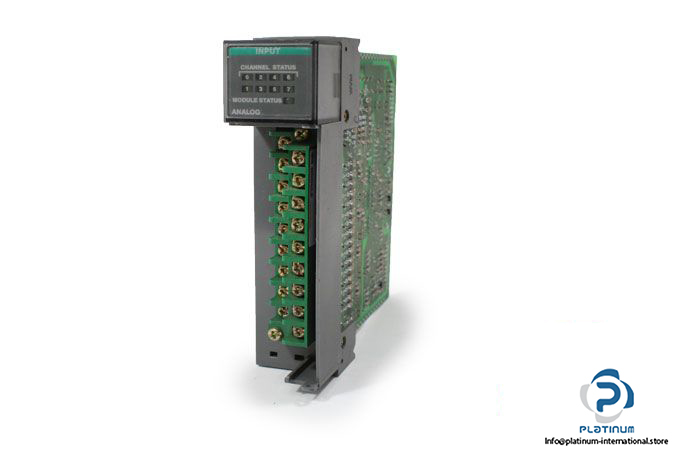

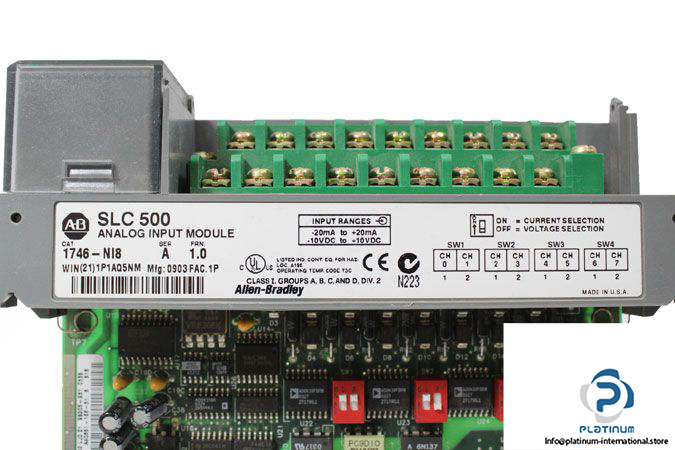

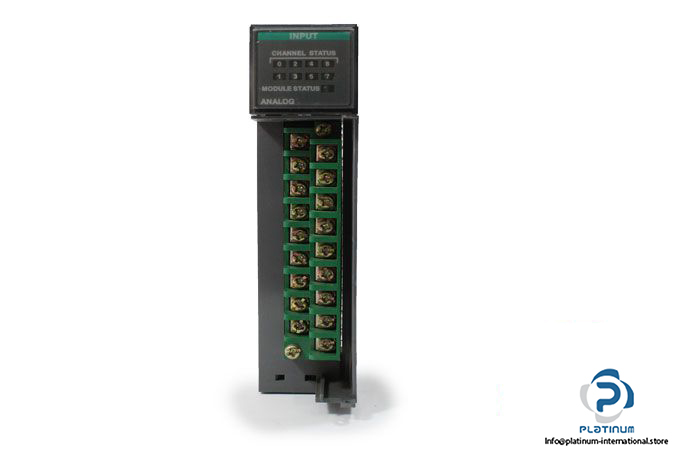

Allen-Bradley 1746-NI8 Analog Input Module

Manufacturer: ALLEN-BRADLEY

Type: ANALOG INPUT MODULE

Model: 1746-NI8

Family: SLC 500

Backplane Current Consumption at 5 VDC / 24 VDC: 200 mA / 100 mA

Backplane Power Consumption: max. 3.4 W

Number of Channels: 8 (backplane isolated)

I/O Chassis Location: Any I/O module slot except slot 0

A/D Conversion Method: Successive approximation, switched capacitor

Input Filtering: Low-pass digital filter with programmable filter frequencies

Calibration: The module performs continuous autocalibration

Input Impedance: 1 MΩ

Voltage Input: max. ±30V between any two signal terminals

Current Input: max. 30 mA

Operating Temperature: 0 … +60°C

Weight: 0.24 Kg
