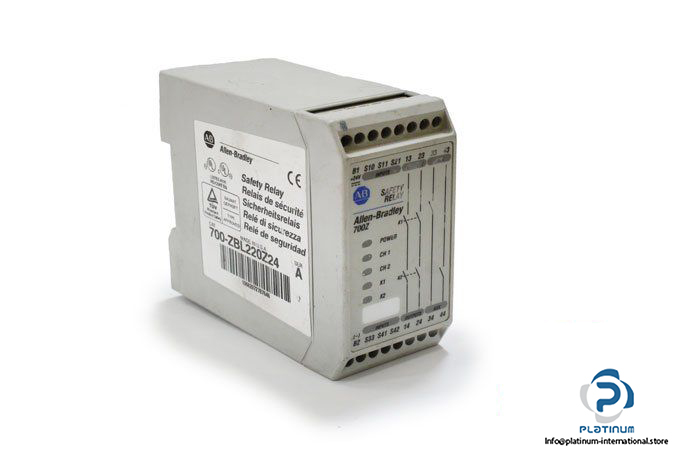

Allen-Bradley 700-ZBL220Z24 Safety Relay
Used
In stock1 unitReady to ship
75,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: ALLEN-BRADLEY
Type: SAFETY RELAY
Model: 700-ZBL220Z24
Supply Voltage: 24 VDC
Power Consumption: 2.6 W
Ripple: 10%
Number of Safety Circuits: 2
Tightening Torque: 0.5 … 0.8 Nm
Ambient Temperature: –25 … +55 °C
Dimension: 103 X 45 X 94 mm
Housing Material: Polyester PBT
Auxiliary Contact Rating Designation: AC15, 24V, 1A Max / DC13, 24V, 1A Max
Safety Contact Rating Load: C300, AC15, 120V, 1.5A / C300, AC15, 240V, 0.75A / DC–13, 24V, 2A
Non-Inductive / Inductive Load Fuse: 5 A Quick-Blow (F) / 1.6 A Slow-Blow (T) for C300, AC15
Wire Gauge: 24–14 AWG (0.2–2.5mm2)
Protection Class Terminal / Housing: IP2X / IP40
Weight: 0.225 Kg
