Allen-Bradley MPL-B1520U-EJ74AA Rotary Servo Motor
New
In stock1 unitReady to ship
1 250,00$
ROTARY SERVO MOTOR
Allen-Bradley / Kinetix MPL-B1520U-EJ74AA rotary servo motor offers high-precision performance with a 460 V armature, low inertia design, IP66 protection, and continuous stall torque of 0.49 Nm.460VAllen-BradleyAutomationConnectorContinuousDINDriveDutyHighIndustrialInertiaIP66KinetixlowmotorMPL-B1520U-EJ74AAPrecisionRotaryServoSpeedTec
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ALLEN-BRADLEY / KINETIX MPL-B1520U-EJ74AA ROTARY SERVO MOTOR
This low-inertia rotary servo motor from Allen-Bradley / Kinetix delivers high-speed, high-precision performance for industrial automation systems. With its robust design and IP66 protection, it's ideal for demanding continuous-duty environments.

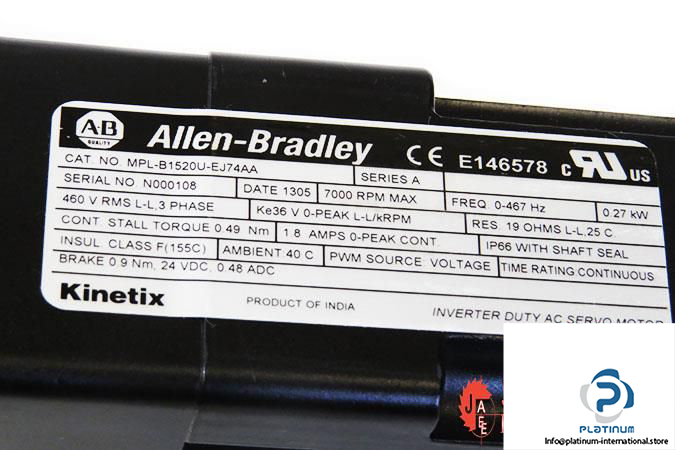

Manufacturer: ALLEN-BRADLEY / KINETIX
Type: Rotary Servo Motor
Model: MPL-B1520U-EJ74AA
Serial No.: N000108
Series: A
Series Type: Low Inertia
| Armature Voltage | 460 V |
| Brake Option | 24 V DC, 0.48 ADC Brake |
| Shaft Speed | Max. 7000 rpm |
| Mounting Flange | IEC metric, FF (free mounting holes) |
| Frequency | 0 / 467 Hz |
| Connectors | Circular (SpeedTec) DIN, right angle, 180° rotatable |
| Time Rating | Continuous |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm |
| Continuous Stall Torque | 0.49 Nm |
| Peak Stall Torque | 1.58 Nm |
| Motor Rated Output | 0.27 kW |
| Current | 1.8 AMPS |
| Ambient Temperature | 0 / 40 °C |
| Standard | E146578 C |
| Protection Class | IP66 with Shaft Seal |
| Shaft Type | Shaft Key / No Shaft Seal |
